About this product
AVENTICS | ECS Actuator | R417002911–BDL–001–AA 15
English
W Signal processing by CAN-bus via M12-connector
W Special power supply plug
5.3 Marex ECS Actuator product view

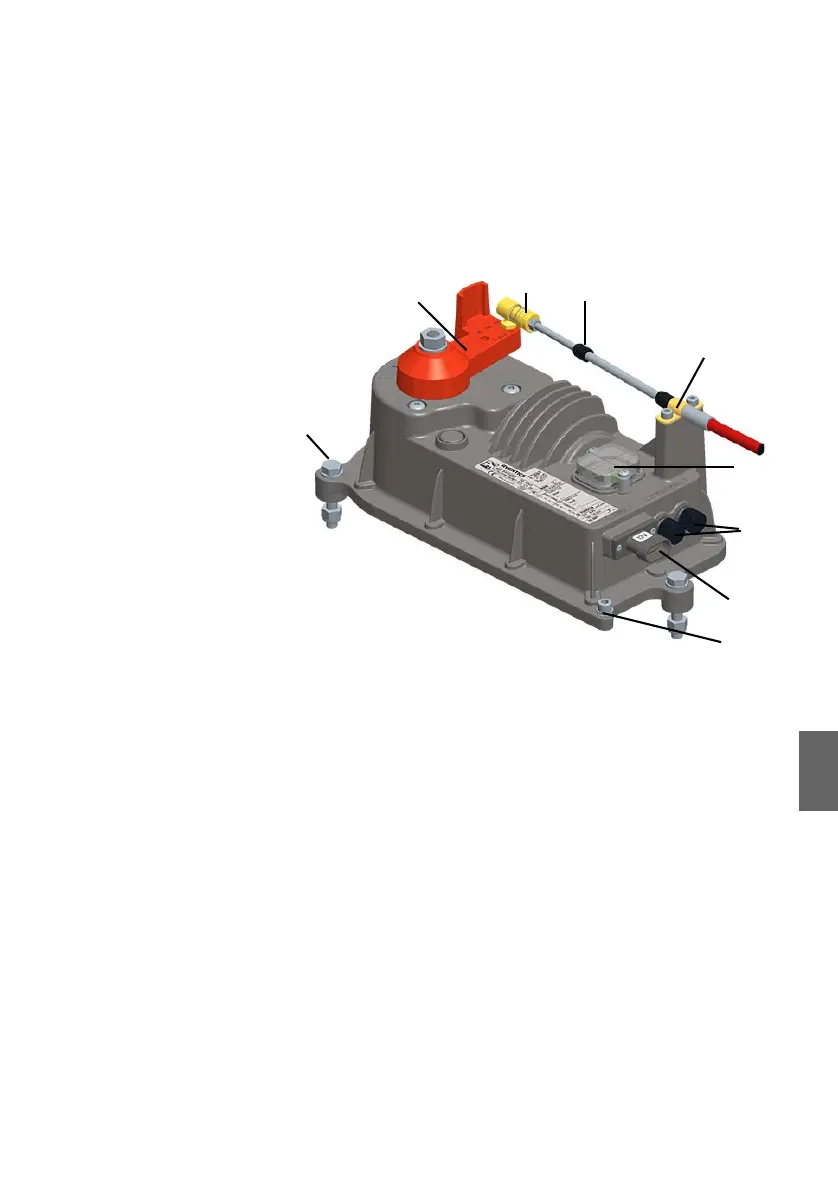

Fig. 1: Marex ECS Actuator, overview
5.3.1 Overview on operating elements
The following figure shows the operating and indicating
elements of the Marex ECS Actuator which are located under
the transparent cover (5):
1 Lever
2 Ball joint
3 Push/Pull cable (not included in delivery)
4 Clamp
5 Transparent cover
6 2 PROPULSION-bus M12-connectors, male
7 Power jack
8 Grounding screw
9 Mounting screw M8 with nut and washer
(included in delivery)
1
2
3
4
5
6
7
8
9
