Commissioning
AVENTICS | ECS Actuator | R417002911–BDL–001–AA 31
English

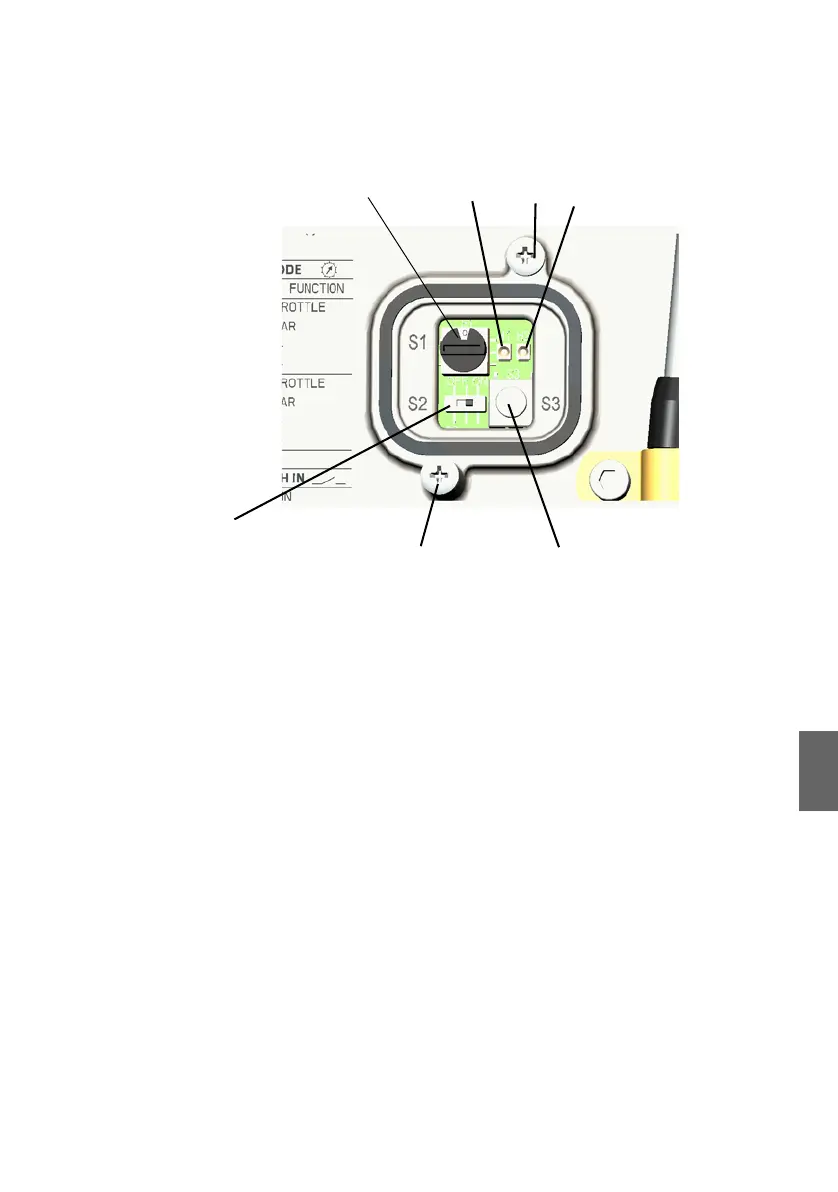

Fig. 12: Switches and LEDs under the transparent cover
8.2 Setting the actuator’s function
Before the first operation, the actuators’ function must be set
and the positions which the adjusting lever shall approach must
be stored (teach-in). Always perform the following steps,
– if you have installed a new Marex ECS,
– if you have replaced an actuator,
– if you have enhanced the system and added another
actuator,
– if you have removed and reinstalled an actuator.
1. Power Marex ECS completely off.
15
14
13
10
11
15
12
10 Rotary coding switch S1(define function)
11 Device status LED, green
12 Device status LED, red
13 Switch S3 (store positions)
14 Sliding switch S2 (teach-in)
15 Mounting screws of transparent cover
