Aventics Marex ECS User Manual

Commissioning
AVENTICS | ECS Actuator | R417002911–BDL–001–AA 37
English
8.4 Connecting the push/pull cable
After all electric connections have been established and the
actuators are operational, set up the mechanical connection
between the MarexECS Actuator and the lever for speed or gear
setting at the boat’s engine using a push/pull cable.
Only use push/pull cables type 33C as the fixing points on
the MarexECS Actuator are designed for that type of cable.
Please note the push/pull cables are not included in the
delivery, see also chapter 14, Accessories.
Proceed as follows:
1. Select the lever at the throttle or gearbox which shall be
connected first.
2. Check if it is already prepared for the connection of a push/
pull cable. If not, a mounting kit is available including ball
joint and mounting material (3236990062).
Connect the push/pull cable following the instructions of the
manufacturer:
3. Mount the ball of the joint onto the lever in such a way that
the linear lever travel does not exceed 76mm. We
recommend a lever travel of 70mm approximately (fig. 17).

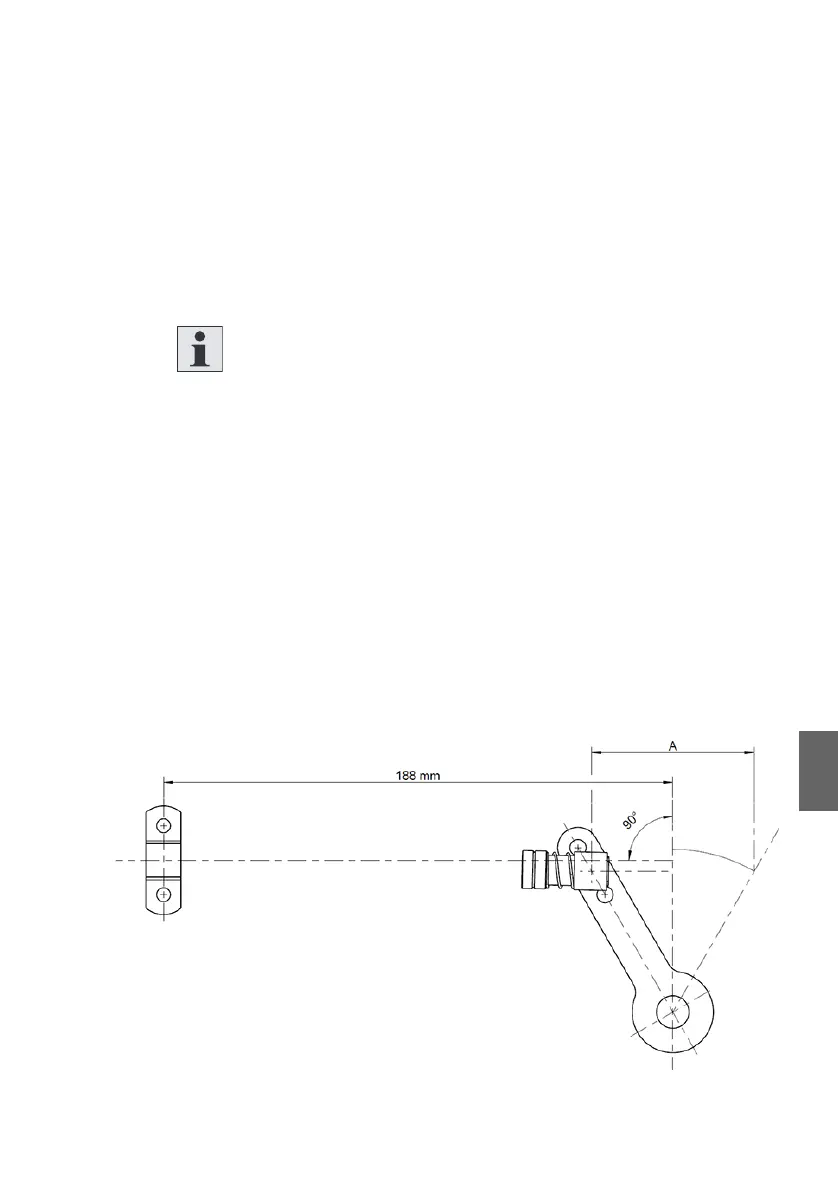

Fig. 17: Adjusting lever and counter bearing
