Aventics Marex ECS User Manual

Assembly
AVENTICS | ECS Actuator | R417002911–BDL–001–AA 25
English
7.2.1 Sockets
The Marex ECS Actuator provides three sockets and a grounding
screw for the electrical connections:

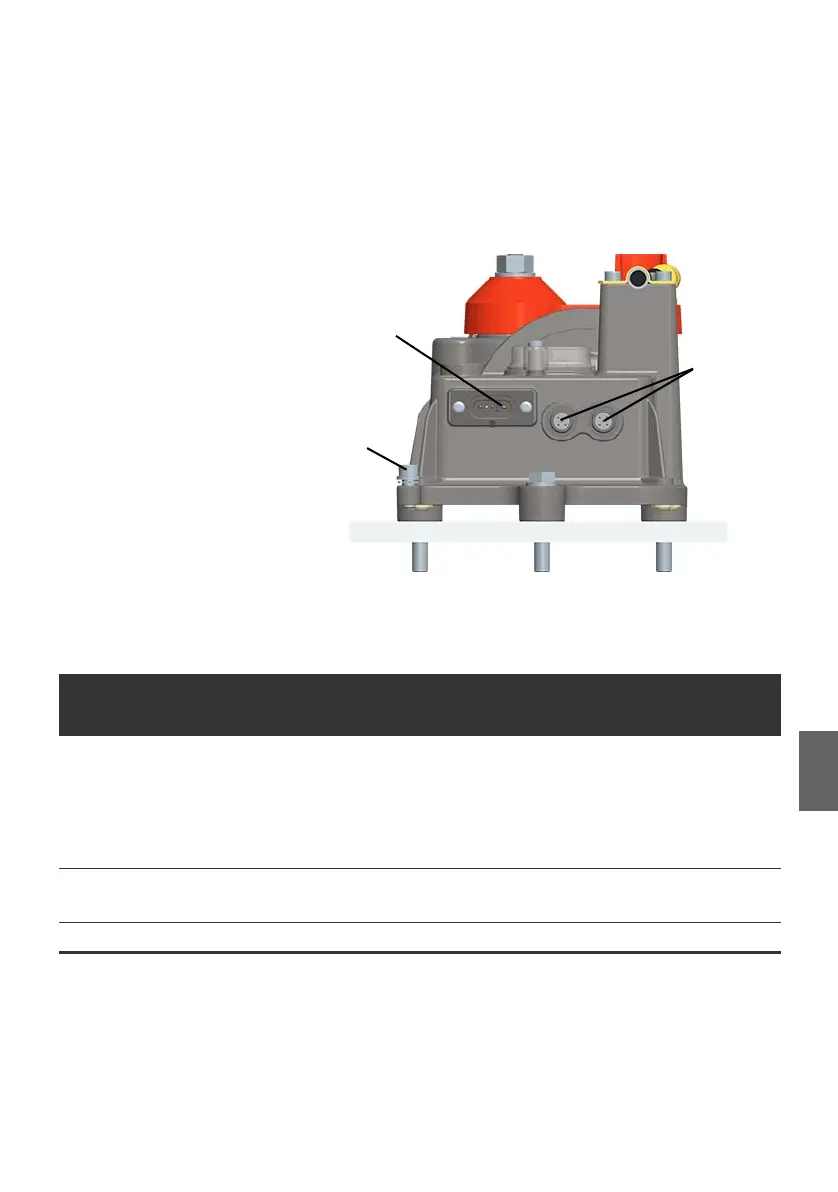

Fig. 8: Sockets and grounding screw
8
6
7
Table 8: Type and function of sockets and screw
Socket Type Description
Connection
required
Function
6
5-pin male, M12 PROPULSION bus yes connect PROPULSION
cable or
connect an optional
Marex ECS Actuator or
apply terminating resistor
7
3-pin male,
superseal
POWER yes power supply
8
screw GROUNDING yes connect grounding cable
