7.2 Establishing the electrical connections
The following figure shows the cable connections of the Marex
ECS Actuator. Before the start of operation, the electrical
connections to the MarexECS control unit, the power supply and
to other actuators must be established.

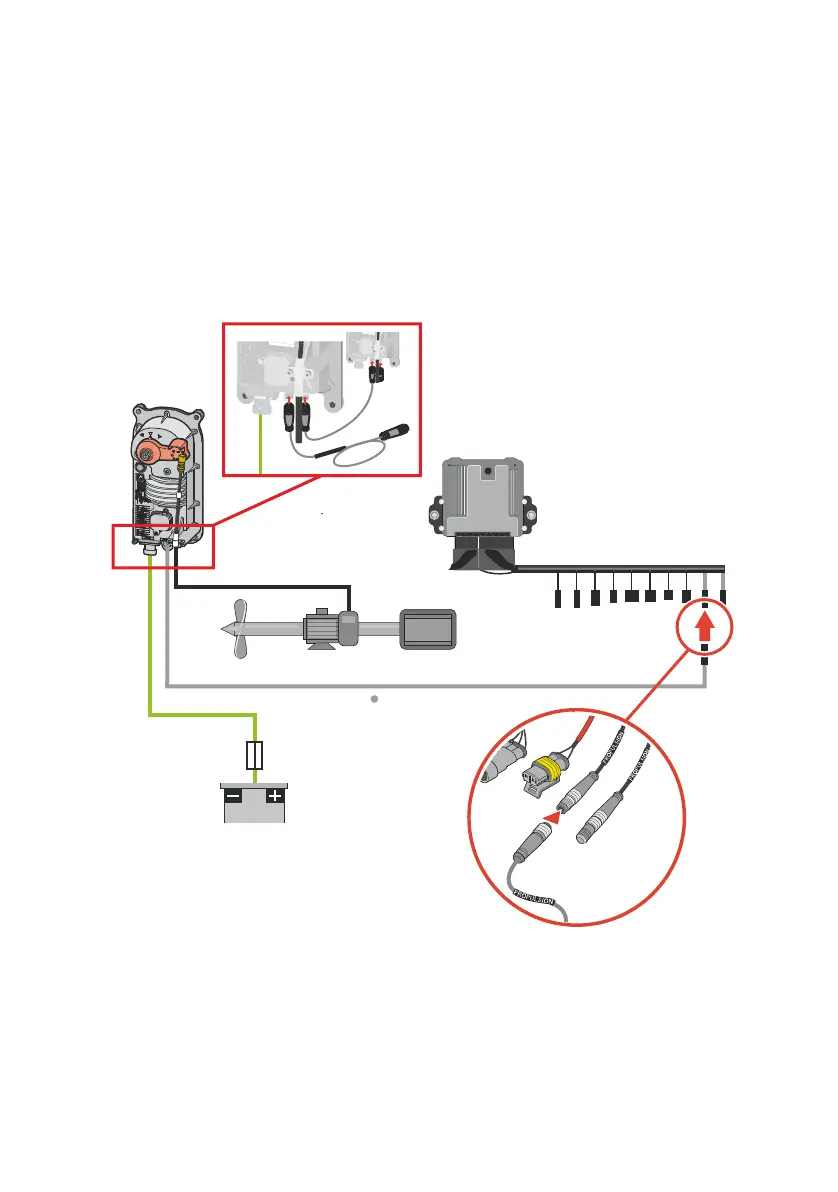

Fig. 7: Cable connections at the Marex ECS Actuator
PROPULSION
push-pull cable
P
ROPU
L
SI
O
N
