Commissioning
42 AVENTICS | ECS Actuator | R417002911–BDL–001–AA

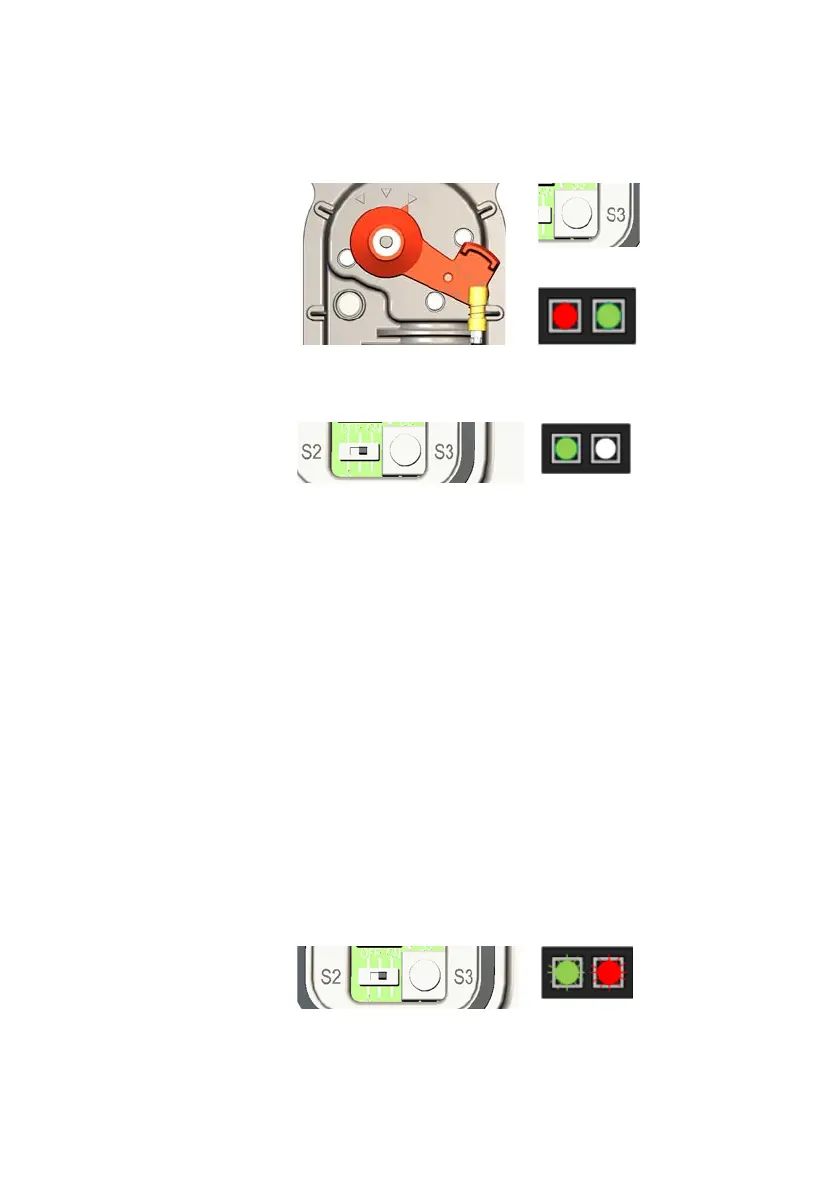

9. Push switch S3 to confirm the setting. The red and green
LEDs stay on for a short time. The position is stored.
10. Set switch S2 to "OFF". The teach-in process is complete.
The actuator is ready for use now. The red LED is off. The
green LED is permanently illuminated.
11. With twin engines, proceed accordingly with the second
actuator for the gearbox.
8.6 Setting up the actuator for the throttle
control
Proceed as follows to store the positions which the actuator’s
lever shall approach (teach-in). It is essential that you store the
positions in the order given in the following instructions.
1. Detach the ball joint from the ball bearing on the actuator
(fig. 19) in order to avoid unintended hitting against the end
positions.
2. Switch the power supply on.
3. Set the slide switch S2 (14) to "ON". The red and green LEDs
flash:
4. Reattach the ball joint on the ball bearing on the actuator (fig
19) and move the lever of the actuator manually so that the
adjustment lever of the throttle is in the MINRPM position.
OFF <--- ON
OFF ---> ON
