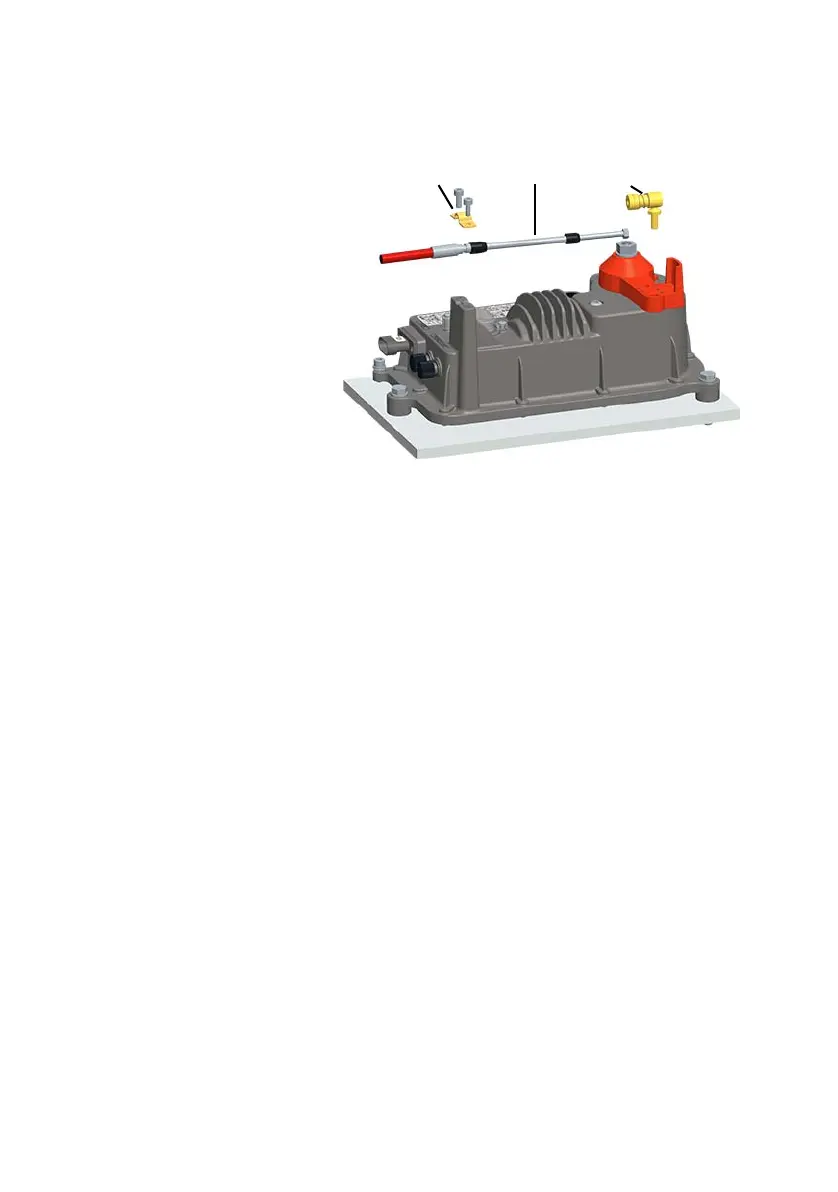

Fig. 19: Push/Pull cable with mounting and MarexECS Actuator
9. Move the lever of the MarexECS actuator by hand in both
directions so that the lever on the throttle or gearbox
executes the full stroke. When doing so, the marking on the
lever of the MarexECS Actuator must always remain
between the markings for the stroke limitation, see fig. 18.
The marking in the middle serves for orientation only, the
center position can set separately later at your choice.
10. If the stroke of the MarexECS Actuator is not sufficient to
adjust the lever on gearbox or throttle, reduce the stroke
required by relocating the fixation point on the adjusting
lever of throttle or gearbox in the direction of the pivoting
point.
You have established all connections which are necessary for
the operation of the MarexECS Actuator.
O Proceed accordingly with the other actuators.
O Before switching on the power supply and setting the end
positions (chapters 8.5 and 8.6), detach the ball joints from
the ball bearing (fig. 19) in order to avoid unintended hitting
against the end positions.
2 Ball joint (socket and ball)
3 Push/Pull cable
4 Clamp with screws
