Aventics Marex ECS User Manual

Commissioning
AVENTICS | ECS Actuator | R417002911–BDL–001–AA 39
English
7. At first, screw the ball head which is included in the delivery
onto the lever of the MarexECS Actuator. Use the inner
threaded hole (fig. 18, 16), if due to the mounting situation on
the adjusting lever of the throttle or gearbox a stroke
smaller than 51mm is required. For a longer stroke, use the
other threaded hole (fig. 18, 17).

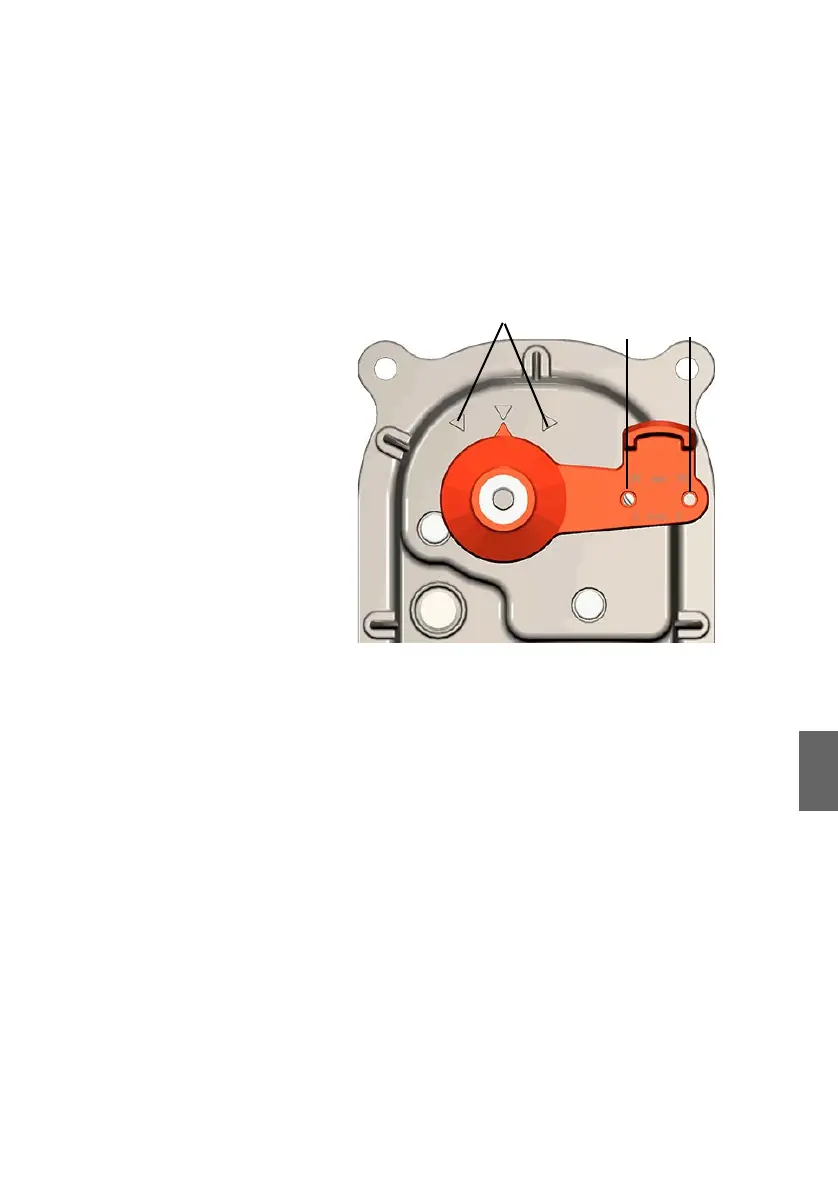

Fig. 18: Marex ECS Actuator with lever and mounting bores for the ball
joint
8. Screw the ball joint onto the push-pull cable, fix the jacket of
the push/pull cable to the counter bearing of the MarexECS
Actuator by means of the clamp and insert the ball joint onto
the ball on the lever (fig. 19).
16 Position 2 inch (51mm)
17 Position 3 inch (76mm)
18 Markings for stroke limitation
16
17
18
