Model E1010 Indicator User Instructions 35
Limit Mode Enter the upper and lower limits for your item and the indicator will
use those values to run the display. See Figure 8.1.

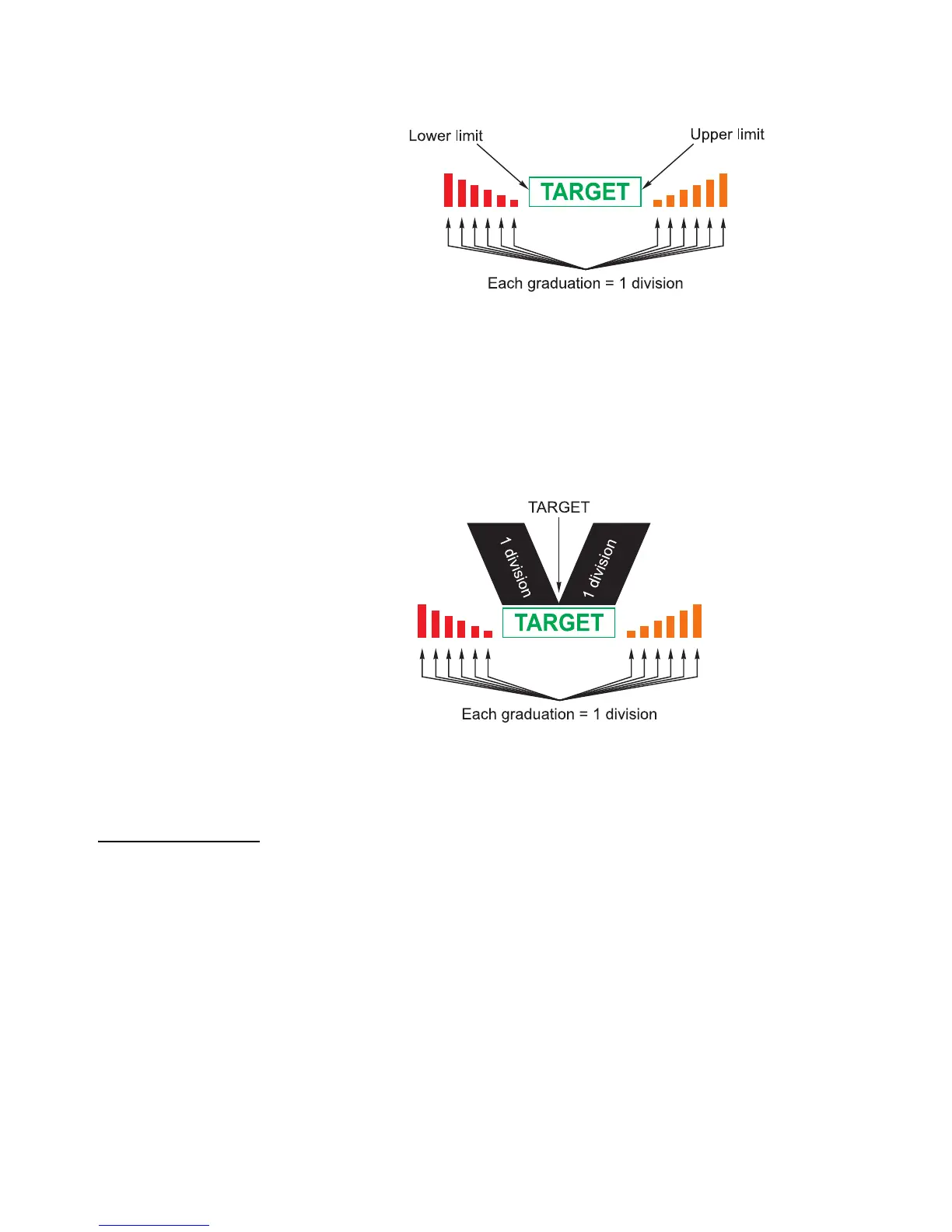

Figure 8.1 Limit mode
Sample Mode Place a correct weight “product” on the scale and press the F1
key. The indicator will use this weight to run the display. Upper and
lower limits will automatically be 1 division above and below the
target weight respectively. Figure 8.2 shows how the graphic
display works in Sample mode. Each graduation is equal to 1
scale division. The TARGET light stays lit if weight is ±1 division
of the target weight.
Figure 8.2 Sample Mode
8.4.1 Limit Mode: Entering Upper and Lower Limits
Follow these steps to setup and use the checkweigher function if limit mode is enabled,
where you set upper and lower weight limits:
1. Press the F1 key…
Up is displayed followed by an underscore cursor.
2. Key in the upper weight limit. Press the F1 key…
Lo is displayed.
3. Key in the lower weight limit. Press the F1 key…
The indicator returns to normal weigh mode.
4. Place items on the scale and the display will show if the weight is over, under
or acceptable based on the limits you have set.
