Model E1010 Indicator User Instructions 45
11 Indicator Diagnostics
11.1 Indicator Test Functions
The user menu lets you test various functions of the indicator. The user menu is shown
in Figure 11.1. Instructions for using the Test portion of the menu are found below.

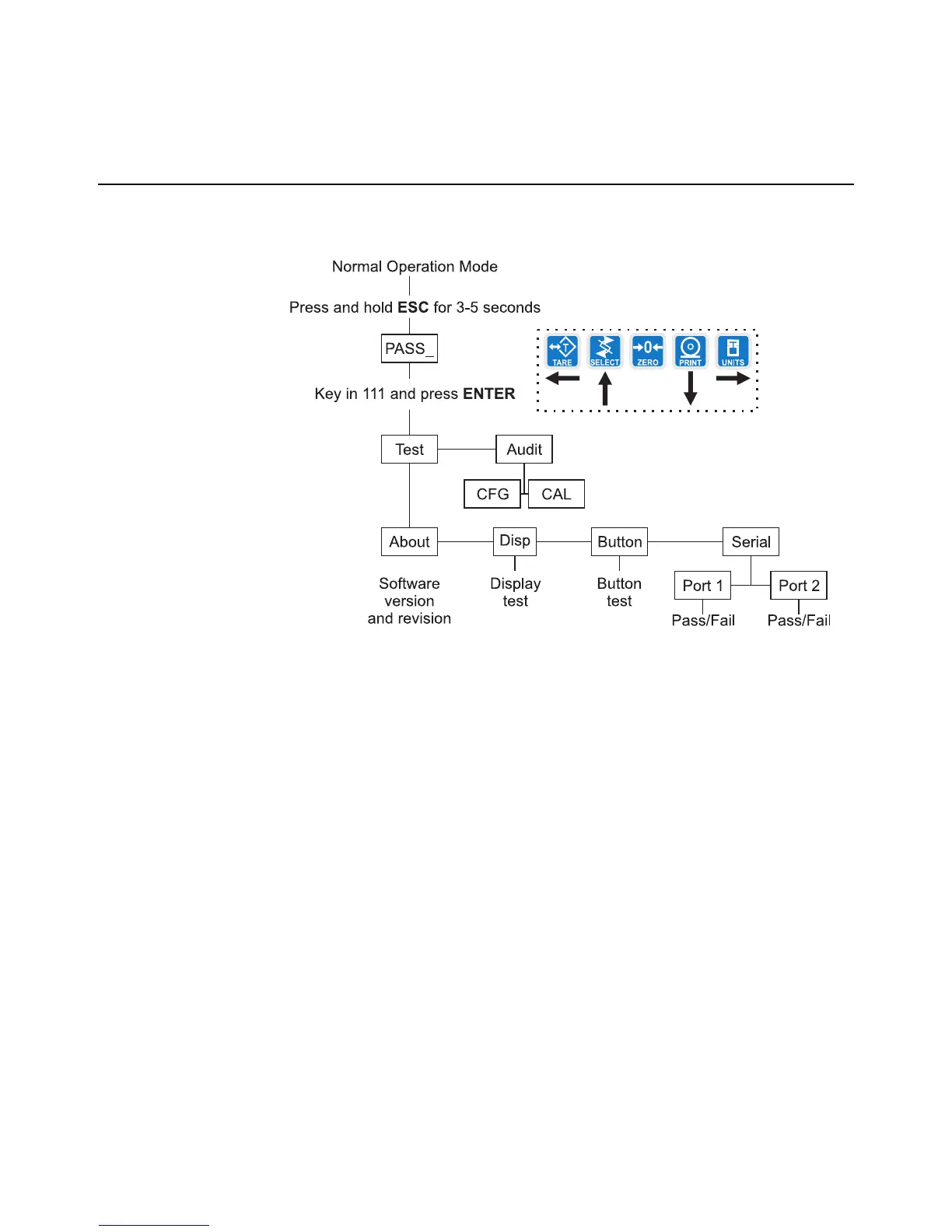

Figure 11.1 User Menu
1. Access the User menu by pressing and holding the ESC key for 3-5 seconds.
PASS_ is displayed.
2. Key in the User menu password = 111 and press ENTER.
TEST is displayed.
3. Press the PRINT key.
ABOUT is displayed. Press the PRINT key then the UNITS key to view
the part number and revision level for the software found in your
indicator.
Press SELECT key to return to ABOUT.
4. Press the UNITS key…
DISP is displayed. This is the display test item.
5. Press the PRINT key to perform a dynamic test of the display.
6. Press ESC key to stop the dynamic test.
7. Press the UNITS key…
BUTTON is displayed. This is the button test item.
To Next Page
