46 Model E1010 Indicator User Instructions
8. Press the PRINT key to perform a button test. Each key you press will be
reflected on the display by a name or numbers to confirm the button is
functioning correctly. See KEY / DISPLAY below. The ESC key is excluded
from this test. Use it to stop the testing and return to the BUTTON menu item.
KEY = DISPLAY
TARE = tArE
SELECT = SELECt
ZERO = ZEro
PRINT = Print
UNITS = Units
F1 = F1
Power = on/oFF
7 = 777
8 = 888
9 = 999
4 = 444
5 = 555
6 = 666
1 = 111
2 = 222
3 = 333
0 = 000
. = dP
C/CE = CE
MODE = nnodE
ENTER = EntEr
ESC ESc is briefly displayed before exiting the test
9. Press ESC key to stop the button test.
BUTTON is displayed.
10. Press the UNITS key…
SERIAL is displayed. This is the serial port test item.
11. Press the PRINT key…
PORT1 is displayed.

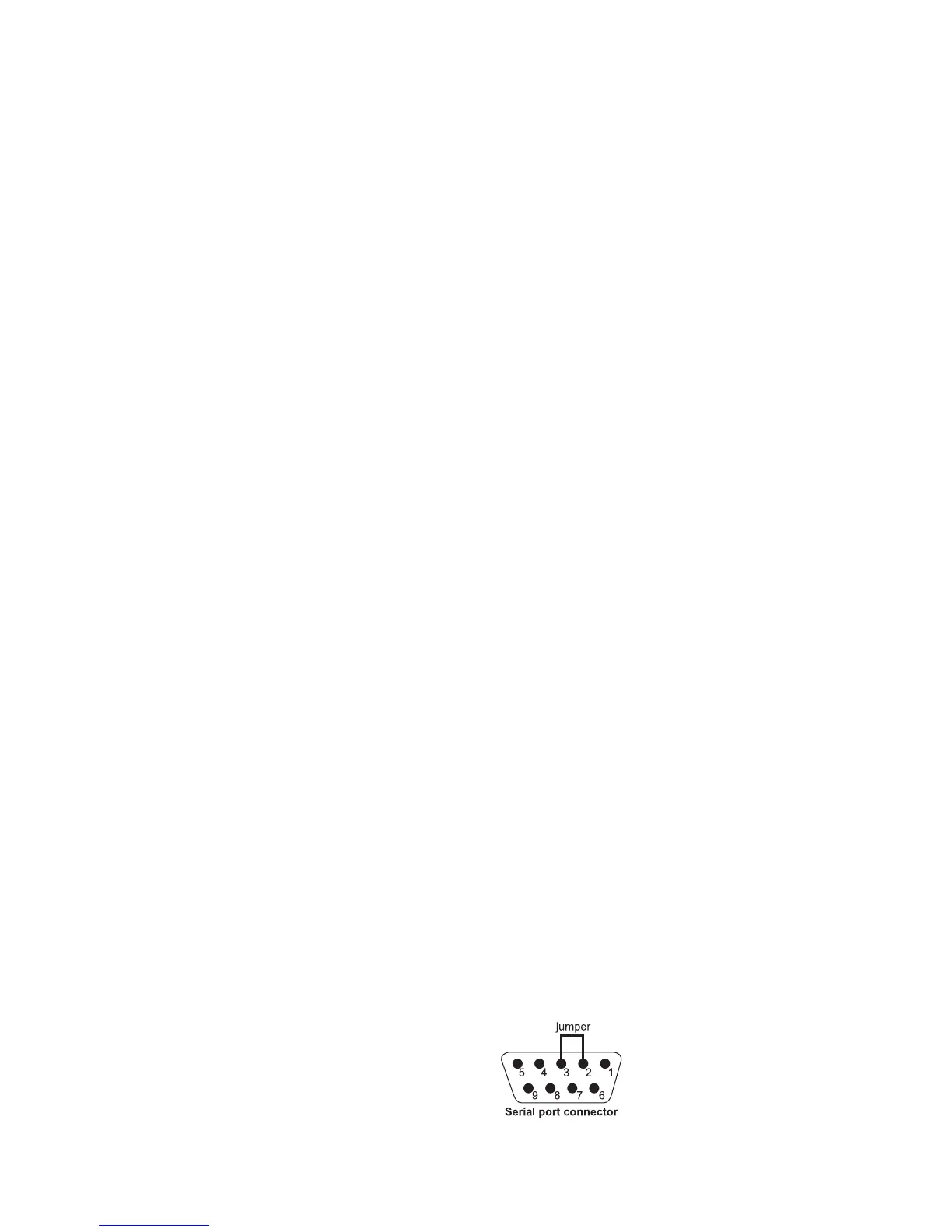

12. Use the TARE or UNITS keys to toggle between Port 1 and Port 2. To test the
communications port, jumper the TX and RX lines (pins 2 and 3 as shown in
illustration below). When the port you want to test is displayed, press the
PRINT key…
With the pins jumpered, if the wiring and hardware are operating
correctly, PASS will be displayed. If there is a problem, FAIL will be
displayed and you should contact a service representative.
