Model E1010 Indicator Service Manual
User Menu
The User menu lets you test various functions of the indicator. The User
menu is shown in Figure 2.

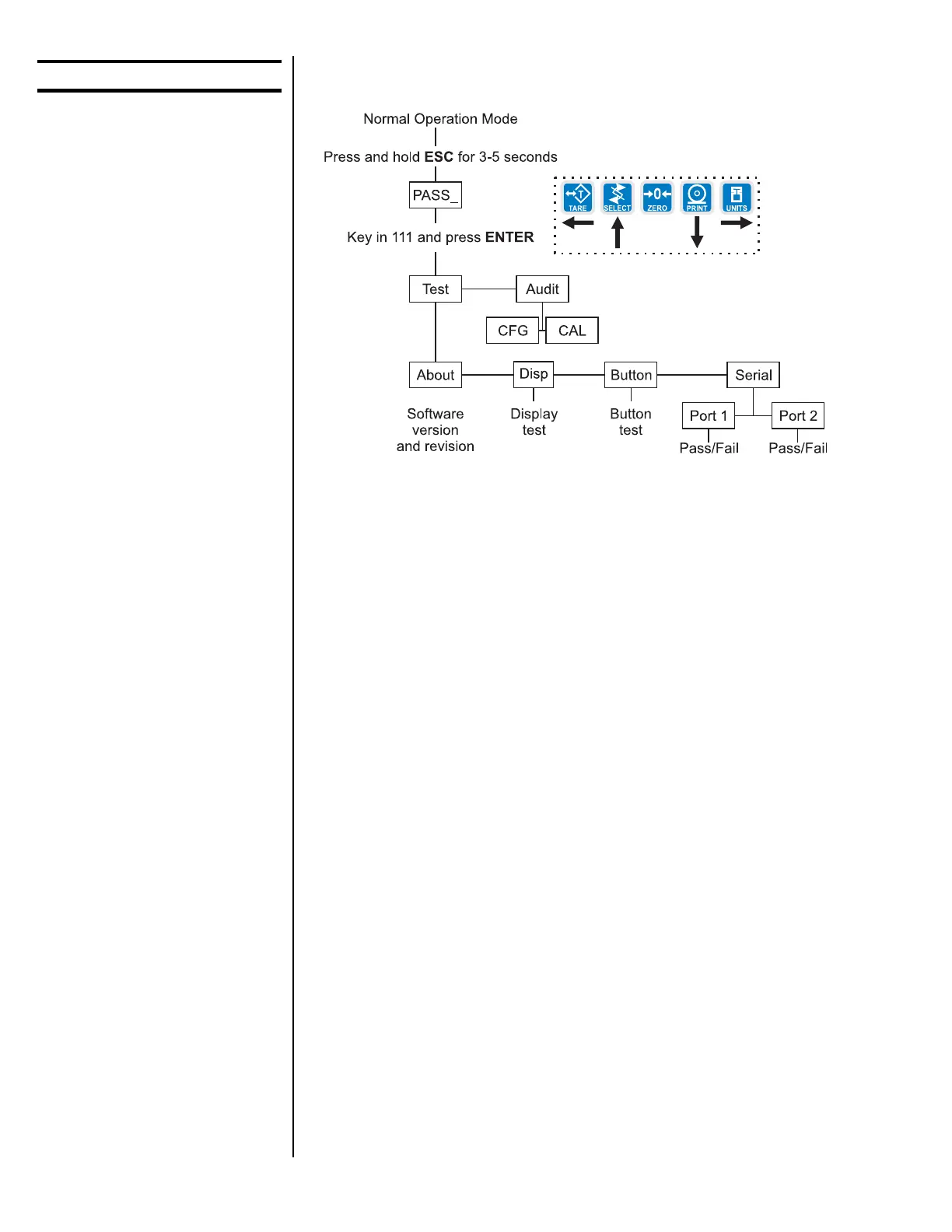

Figure 2
User menu flowchart
Following are specific instructions for the User menu.
1. Access the User menu by pressing and holding the ESC key for 3-5
seconds.
PASS_ is displayed.
2. Key in the User menu password (111) and press ENTER.
TEST is displayed.
3. Press the PRINT key.
ABOUT is displayed.
4. Press the PRINT key. . .
The part number and revision level of the software found in your
indicator is displayed. Use the TARE and UNITS keys to scroll
through the part number and revision.
5. Press the SELECT key. . .
ABOUT is displayed.
6. Press the UNITS key. . .
DISP is displayed. This is the display test item.
7. Press the PRINT key to perform a dynamic test of the display. . .
All the display elements flash.
8. Press the SELECT key to stop the test. . .
DISP is displayed.
9. Press the UNITS key. . .
BUTTON is displayed. This is the button test item.
