Model E1010 Indicator Service Manual
Menu Structure
There are several menus you use to setup or service the Model E1010. You
access the menus through the front panel. Each menu is briefly described
here. For in depth information about a menu, go to that menu's section in
this manual.
User menu (password is 111)
The first menu covered in this manual is the User menu. This
menu allows the user to:
• view software part numbers and revision level
• test the display and buttons
• test the serial port
• view the number of configurations and calibrations per-
formed on the indicator
Service menu (password is 0101)
The second menu covered is the Service menu. This menu
covers many areas. In it you can:
• calibrate the system
• configure the metrological function of the indicator
• Enable or disable available applications
• configure serial port
• test the display and buttons, test the serial port, test the
inputs and outputs (See note at left)
• view the number of configurations and calibrations performed
on the indicator
• configure inputs and outputs
Supervisor menu (password is 1793)
The third menu is the Supervisor menu. This section lets you:
• Set time and date
• Setup a piece look up (PLU) database, clear and/or print
data gathered by each application
• test the display and buttons, test the serial port, test the
inputs and outputs
• view the number of configurations and calibrations per-
formed on the indicator
1. Access the menus by pressing and holding the ESC key for 3-5 sec-
onds.
PASS_ is displayed.
2. Key in the password of the menu you want to access and press ENTER.
The first item in that menu is displayed.

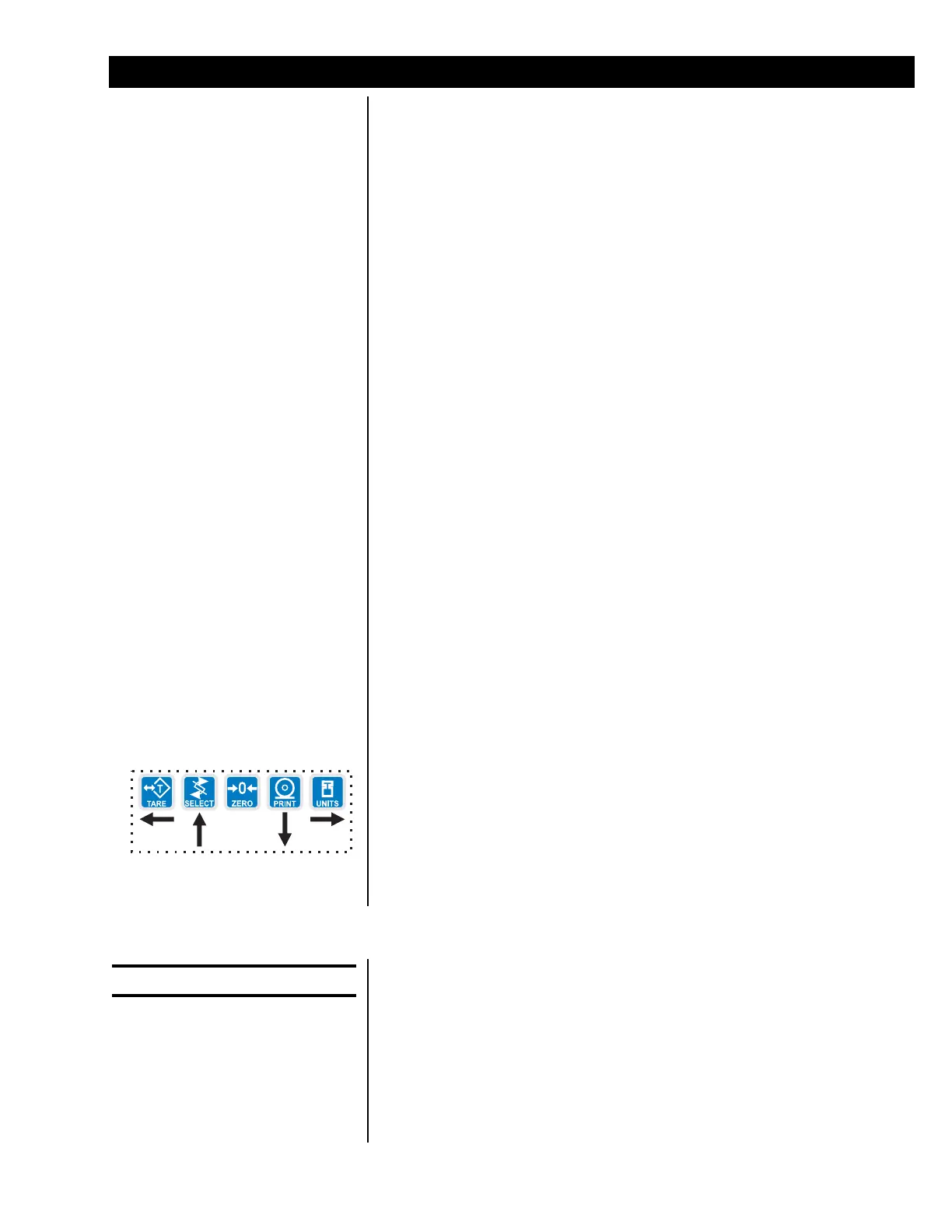

3. Use the navigation keys shown in the box near each menu to move
through the menu.
Accessing the Menus
You must key in the password
within 10 seconds or the
display returns to normal
operation mode.
When testing inputs and
outputs, follow all lockout and
tagout procedures to avoid
injuries.
