36
Model E1010 Indicator Service Manual
TEST submenu
The next section of the Service menu is the TEST submenu. See Figure 9.
This menu lets you view indicator information and test the display, keypad,
serial port, inputs and outputs.

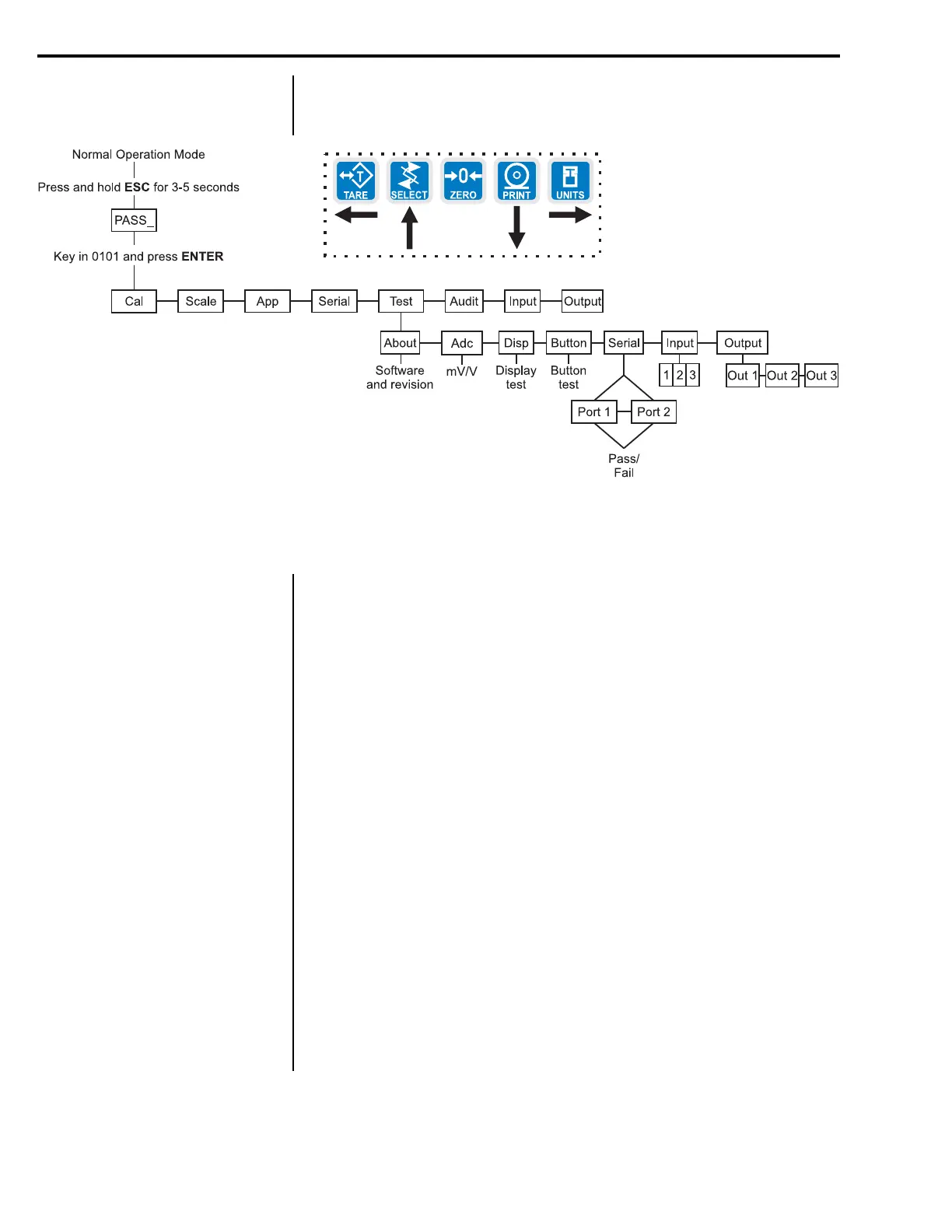

Figure 9
TEST (diagnostic) submenu
ABOUT
(Indicator information)
Follow these steps to access each item in the Test submenu and to under-
stand what they do and how to set them:
1. Access the Service menu. . .
CAL is displayed.
2. Press the UNITS key repeatedly until. . .
TEST is displayed. This menu lets you view indicator information
and test the display, keypad, serial port, inputs and outputs.
3. Press the PRINT key. . .
ABOUT is displayed. Press the PRINT key then the UNITS key to
view the revision level for the software found in your indicator.
Press SELECT key to return to ABOUT.
4. Press the UNITS key. . .
ADC is displayed. This stands for the analog to digital converter
value in mV/Vs.
5. Press the PRINT key. . .
The mV/V value coming into the indicator is displayed.
6. Press the SELECT. . .
ADC is displayed.
ADC
(Analog to Digital converter)
Service Menu—TEST submenu
