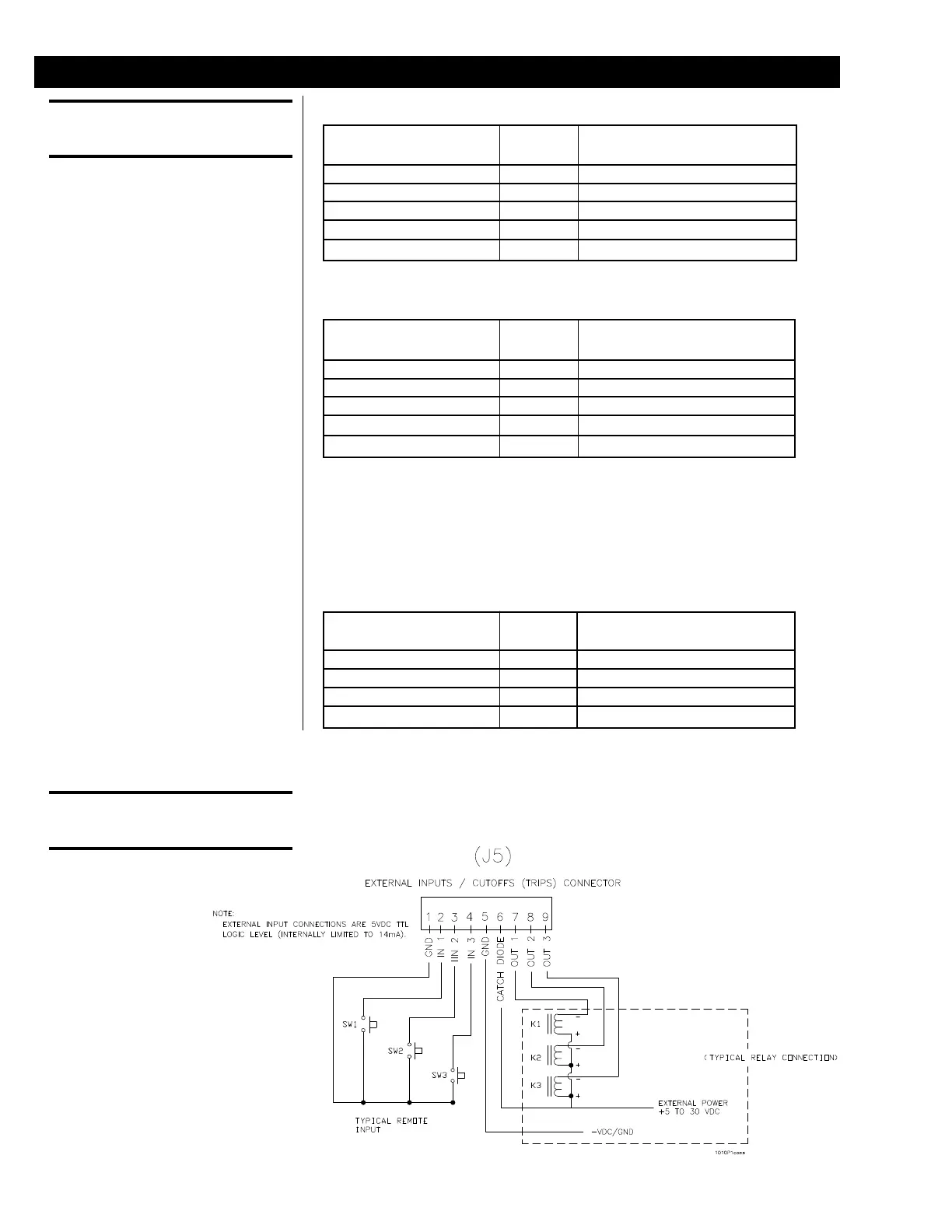

Model E1010 Indicator Service Manual
RS-232
J7 Pin in
Indicator Indicator Computer/Serial device
TX (transmit) 1 RX
RX (receive) 3 TX
CTS (clear to send) 4 RTS
RTS (ready to send) 2 CTS
Signal Ground 5 Signal Ground
RS-422/485
J7 Pin in
Indicator Indicator Computer/Serial device
TXA (transmit A) 1 RXA
TXB (transmit B) 2 RXB
RXA (receive A) 3 TXA
RXB (receive B) 4 TXB
Signal Ground 5 Signal Ground (Optional)
Note that the EIA RS-422 Specification labels data lines with an “A” and
“B” designator. Some RS-422 equipment uses a “+” and “-“ designator.
In almost all cases, the “A” line is the equivalent of the “-“ line and the
“B” line is the equivalent of the “+” line.
Current Loop
J7 Pin in
Indicator Indicator Computer/Serial device
Out + 1 In +
Out - 2 In –
In + 3 Out +
In - 4 Out -
Common Serial Port
Connections
External Inputs / Cutoffs
(Trips) Connector
Appendix 2: Connections and Communications
NOTE:
Cutoffs (Trips) Output = 30Vdc max
or 500mA max AND total power
must not exceed 180mW.
