XR Series Installation Instructions 15
3.2 Installing the XR 2000
3.2 Installing the XR 2000
3.2.1 Opening the XR 2000 Enclosure
1. Make sure the unit is disconnected from power.
2. Remove the 6 screws (with sealing washers) from the front of the enclosure.
3. Guide the front panel away from the main enclosure. Be sure to watch the
internal cable connections! See Figure 3.8

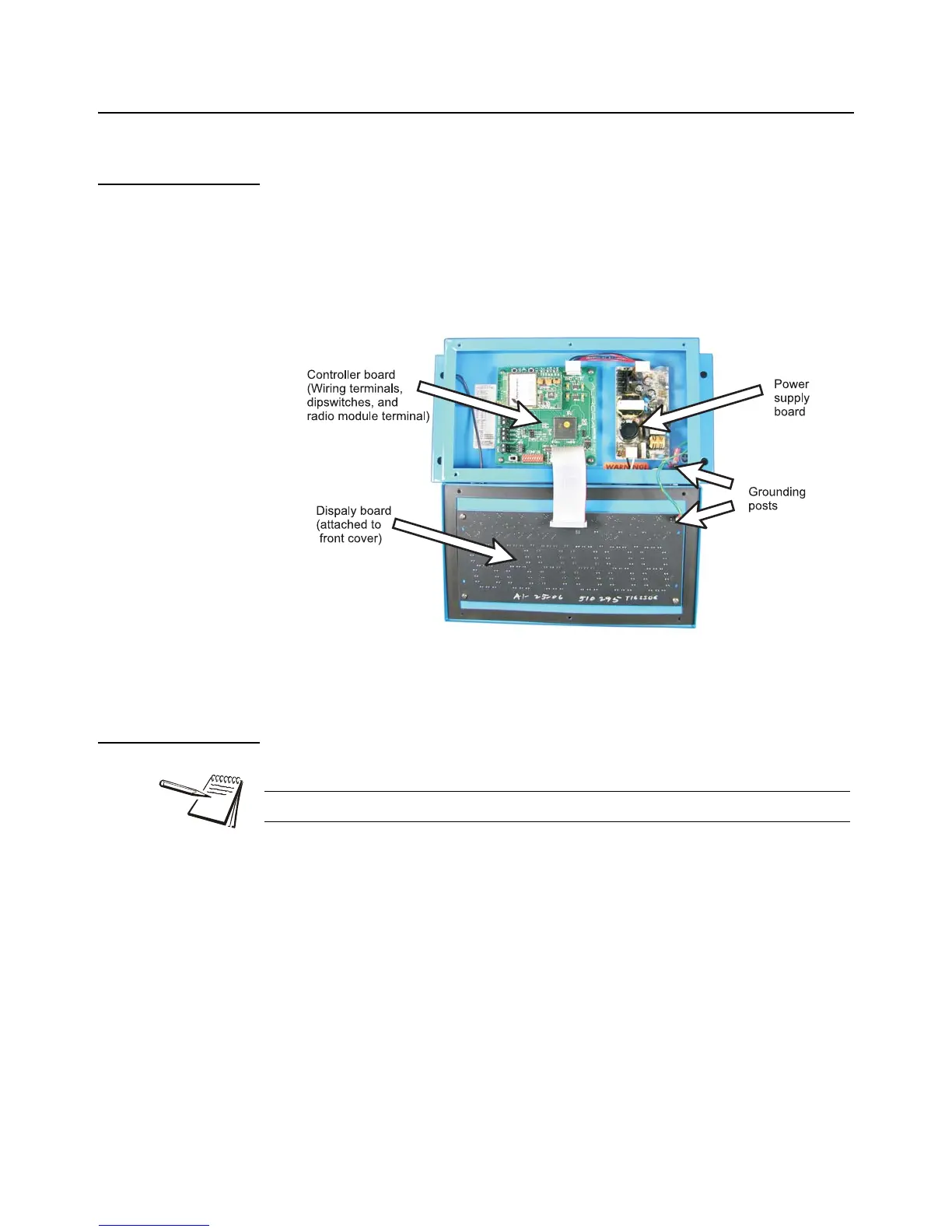

Figure 3.8 XR 2000 enclosure laid open
3.2.2 Mounting Instructions
1. Inspect the installation site for properly grounded power.
2. Ensure that mounting structures (walls, posts, etc.) will bear the weight of the
display (XR 2000: 6 lbs).
3. Use proper hardware, including wall anchors where necessary, when
mounting the enclosure. Secure the main enclosure to wall or pole mounted
bracket with 5/16ths bolts.
4. Run power and communication cables into the enclosure via strain reliefs (as
required).
Mounting hole size in the case is 5/16”.
