24 XR Series Installation Instructions
5 Wireless Communication
5 Wireless Communication
5.1 Wireless Set-up for All XR Models
5.1.1 XR Remote Display
1. Install the radio module. Plug the module into terminals on the main PC board.
See Figure 5.1. The radio module plugs into the XR 2000 controller board in
similar fashion.
2. Route the radio signal cable to the bottom of the electronics carriage and
secure the SMA terminal through the available hole. Connect the external
antenna to the SMA terminal.
3. Power up the XR. The XR is ready to receive radio signals.
4. If problems are experienced, ensure that the radio module is seated properly
on the PC board. Check for bent pins.

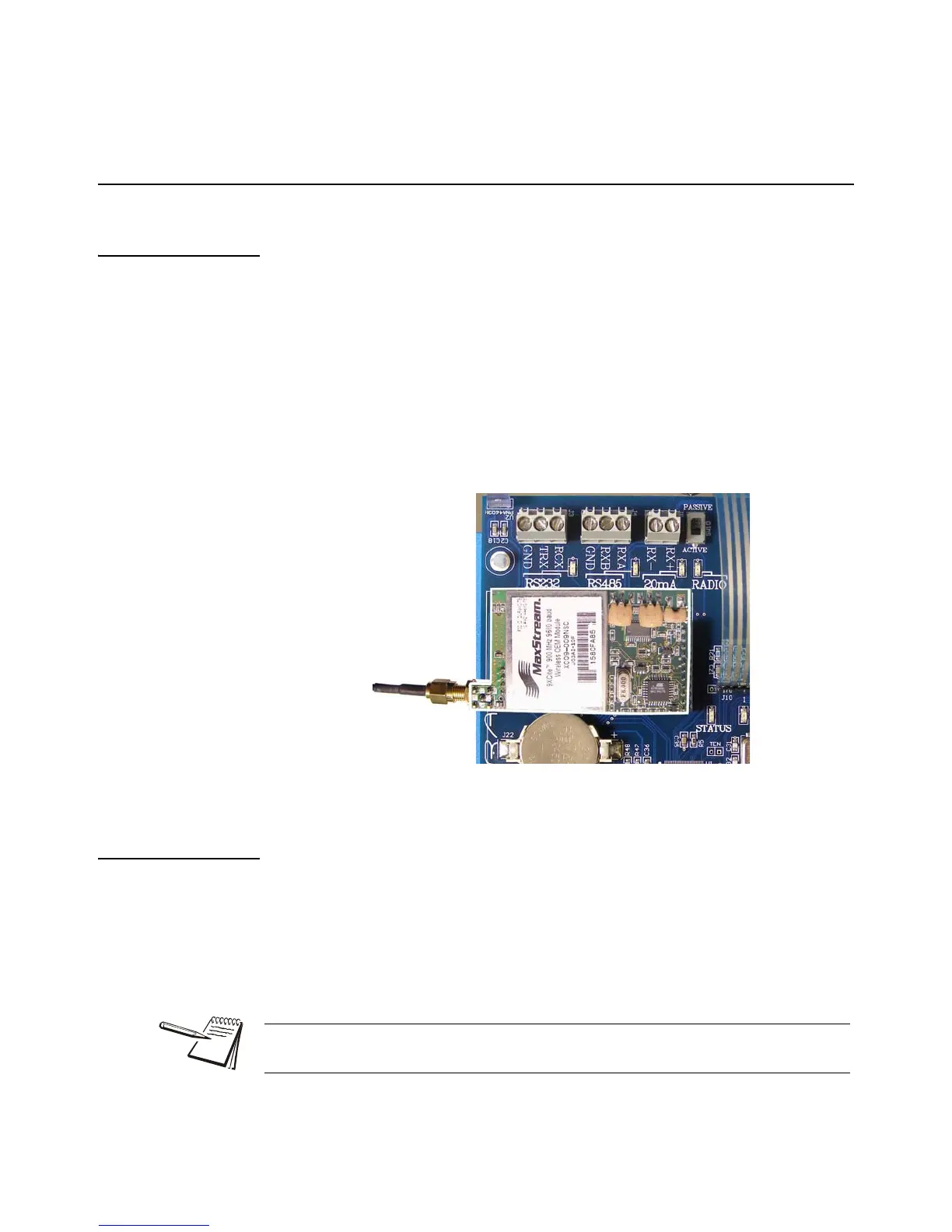

Figure 5.1 Radio Module (outlined in white) on controller board
5.1.2 Indicator
1. Connect the base station to the indicator (or other communicating device) as
directed in the ScaleLink installation manual.
2. Ensure the indicator is set-up to output CONTINUOUSLY.
3. Connect the base station to the scale indicator (or other appropriate device)
as directed in the ScaleLink installation manual.
Note the indicator’s communication settings, as the base station’s settings may
need to be adjusted to match.
