XR Series Installation Instructions 25
5.1 Wireless Set-up for All XR Models
5.1.3 Base Station Wireless Transceiver

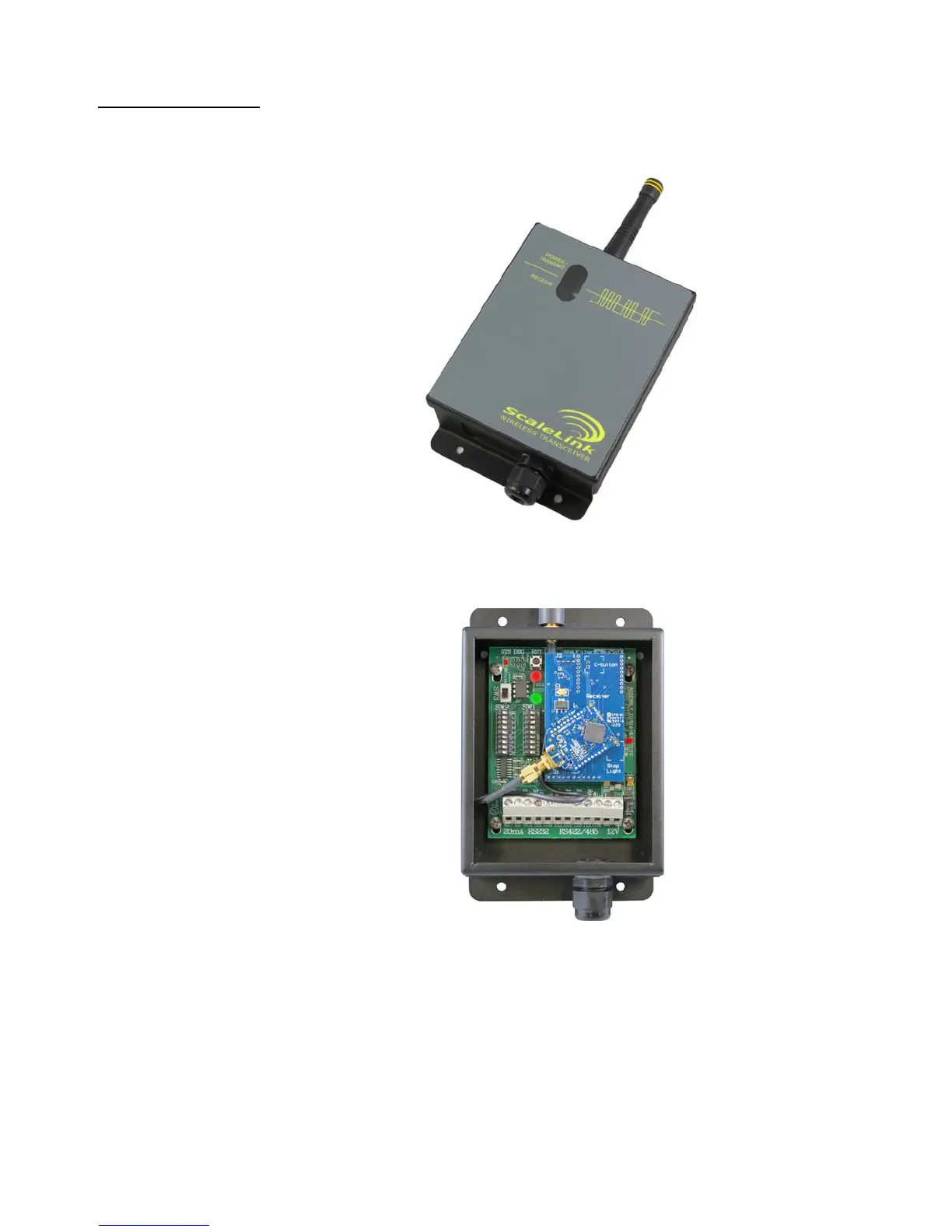

The ScaleLink wireless transceiver is shown in Figure 5.2. Refer to the installation
manual that is included with the ScaleLink for connection and configuration information.
Figure 5.2 Base station (connects to the indicator)
Figure 5.3 shows the inside of the ScaleLink.
Figure 5.3 Internal view
