EN 16
C - INSTALLATION

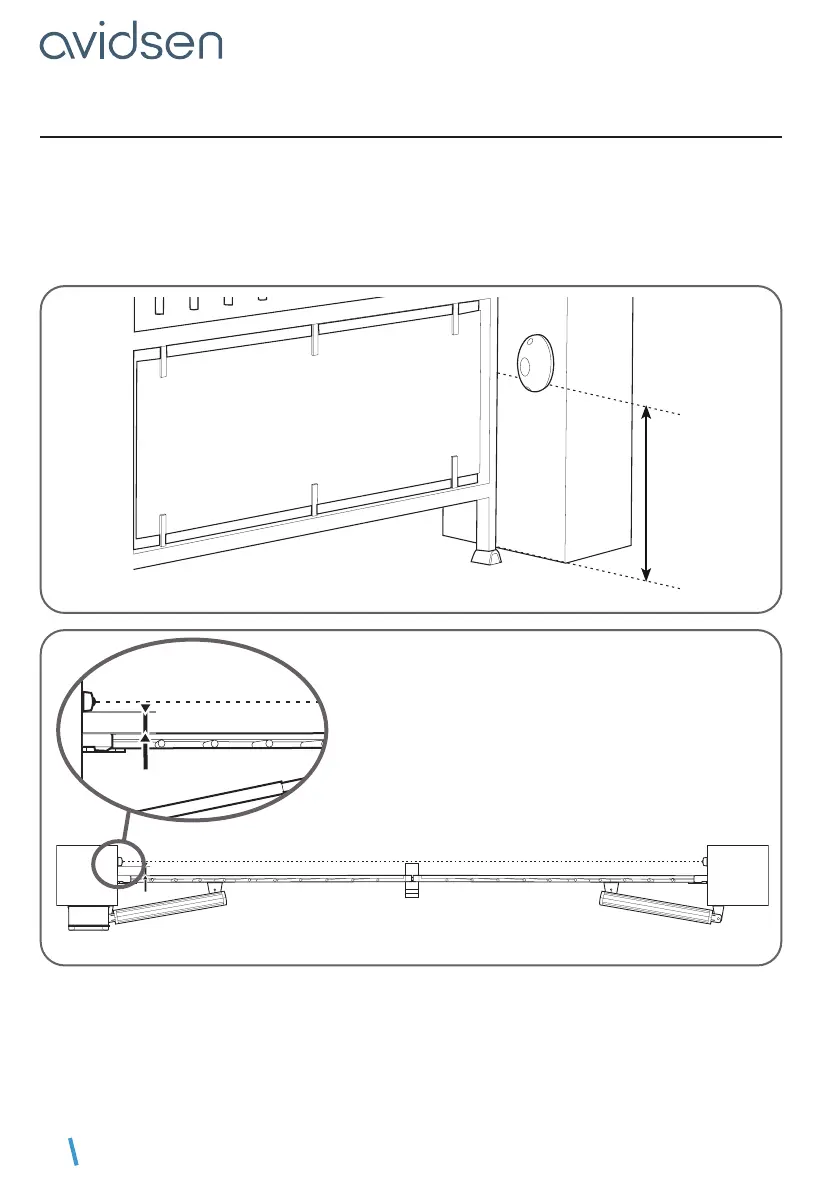

5 - ATTACHING THE SET OF PHOTOCELLS
1 set of photocells
• Install the photocell receptor (RX is inscribed on back) of the same side of the gate as the switchgear. The
surface of the posts must be perfectly at in order to properly align the infrared beam of the photocells.
• Place the photocells at exactly the same height from the ground; they must be perfectly aligned and
parallel to each other. The distance between the outer side of the gate and the photocells must be
between 10cm and 15cm.
• Mount the photocells on the posts.
Outer side of the property
30cm min
60cm max
view from above
Inner side of the property
perfect alignment
10cm min
15cm max
