Avigilon ENVR2 Plus - Overview; Front View

l
Digital input/output terminal block connector
Optional Rack Mount Shelf Contents
If using the Rack Mount Shelf With Sliding Rails accessory kit (RMS1U-ENVR2-8P), ensure it contains the
following:
l
2 x rack rails
l
1 x shelf
l
1 x U-bracket for securing the power supply
l
8 x M4x5L ENVR2 Plus Appliance mounting screws
l
10 x M5x10L rack mounting screws
l
2 x M3x5L U-bracket screws
Optional DIN Rail Mount Contents
If using the DIN Rail Mount accessory kit (DIN-ENVR2-8P), ensure it contains the following:
l
1 x DIN rail mount
l
4 x M3x5L DINrail mounting screws
Overview
Front View

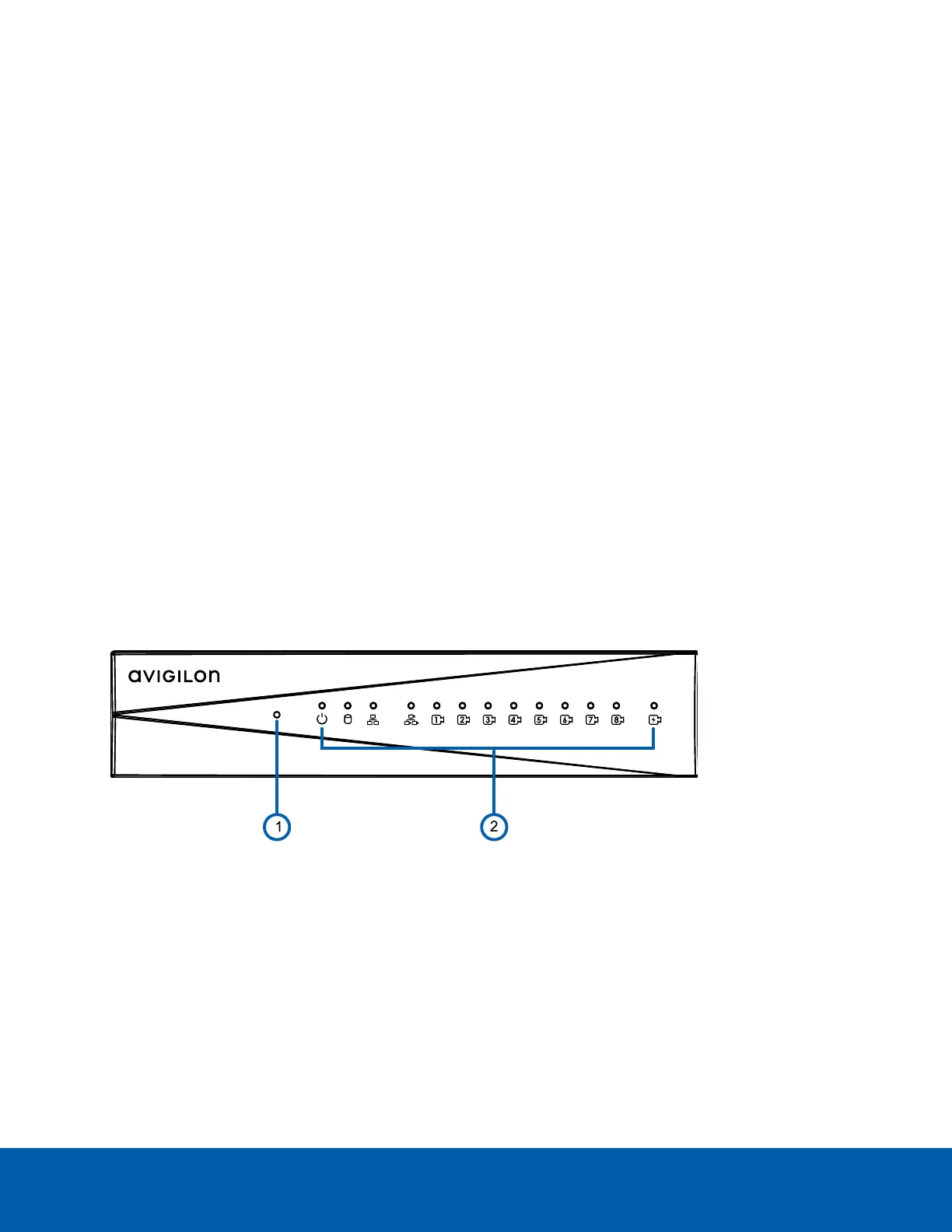

1. Reset button
2. Status LED
Provides information about daily operations. For more information, see LEDIndicators on page31.
