Avigilon H4 - Bracket View

An entry holes for the cables required for camera operation.
4.
Serial number tag
Device information, product serial number and part number label.

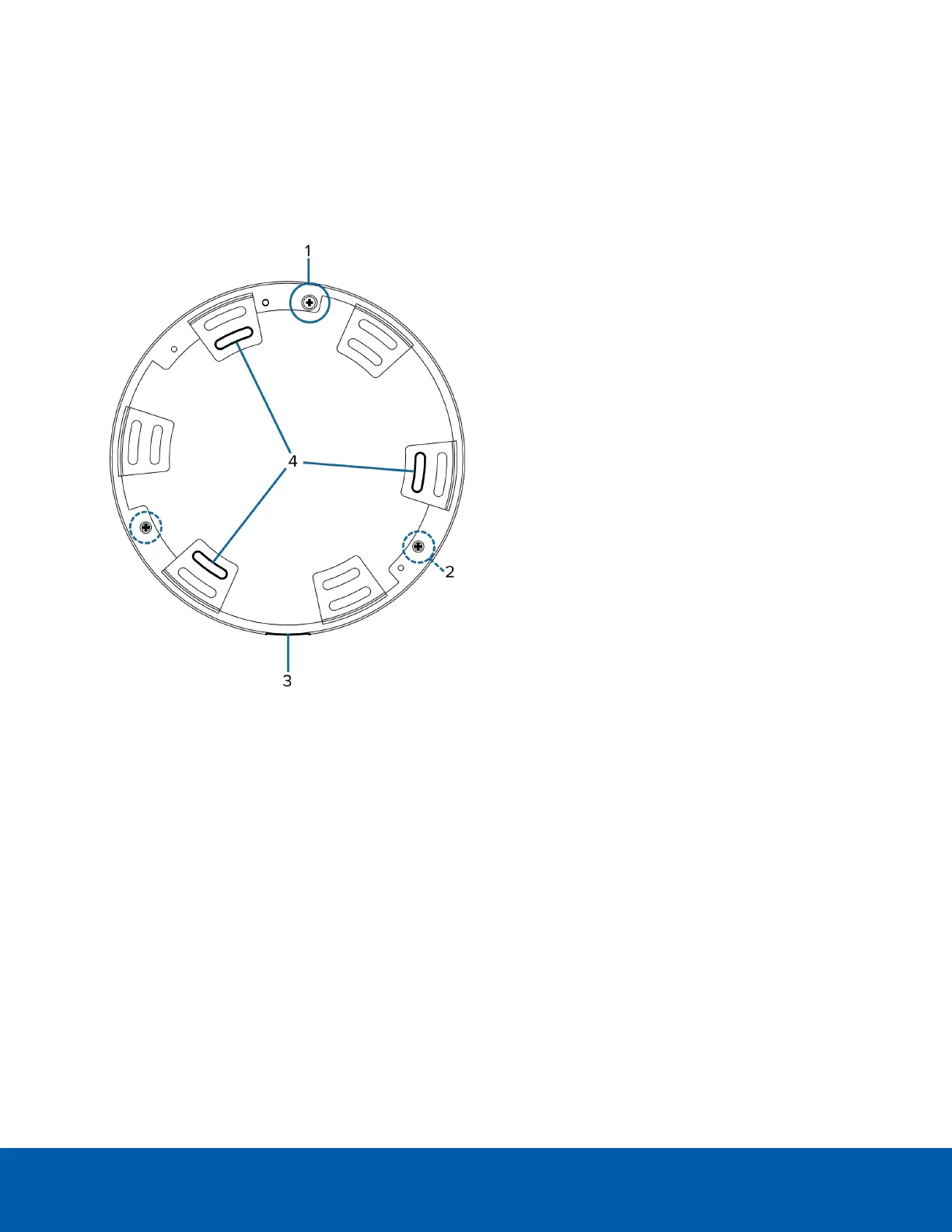

Bracket View
1.
Primary camera post
Align the primary camera slot on the optional bracket to the primary mounting post on the dome
camera base.
2.
Secondary camera posts
Align the camera posts on the bracket to the mounting slots on the dome camera base.
3.
Cable entry notch
An entry notch for network, power and I/O cables.
4.
Mounting slots
Mounting points for the optional bracket.
Bracket View 4
