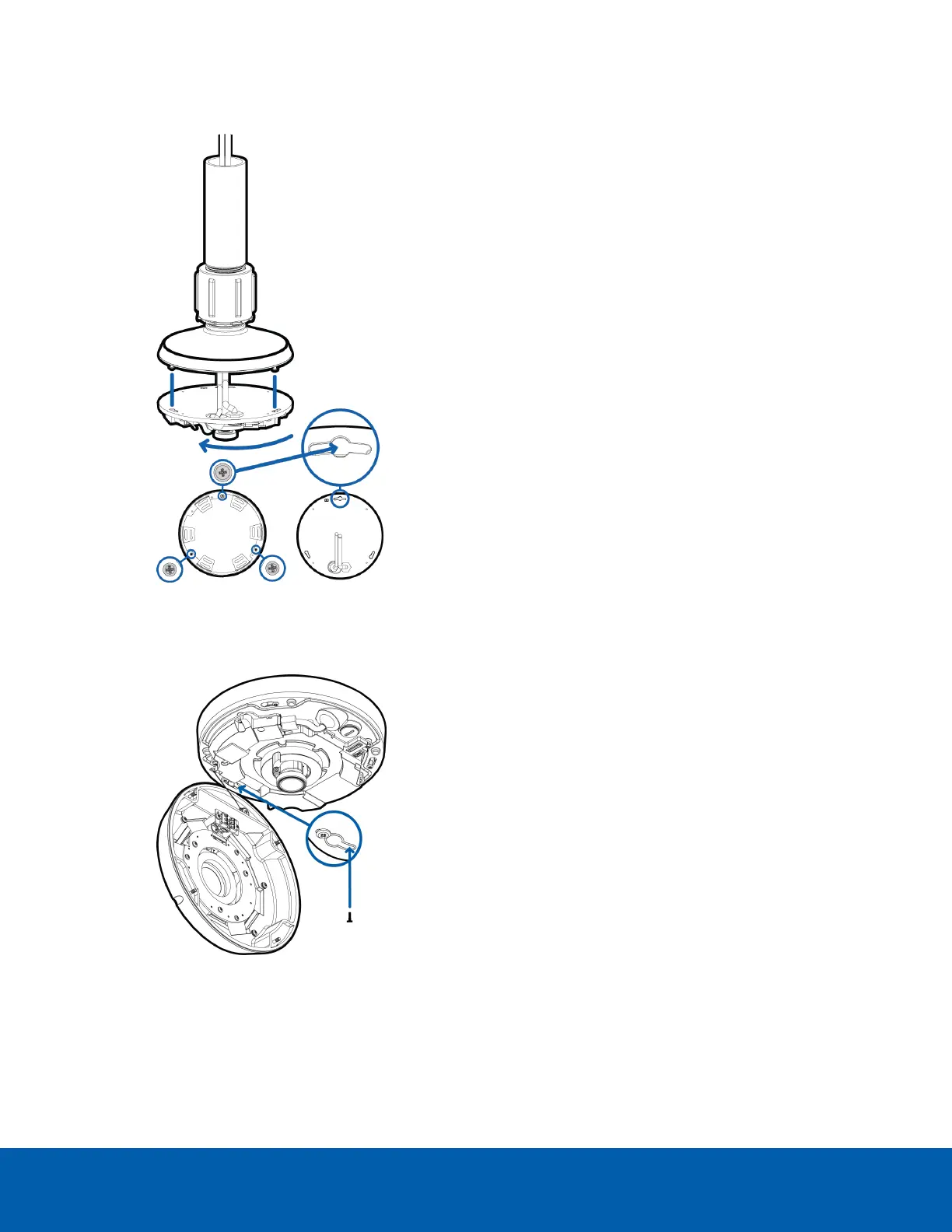

9. Align the mounting slots on the camera base to the camera posts on the NPT adapter, then twist
counter-clockwise until the posts come to the right end of the mounting slots.
A tapped hole is now visible through the left side of the primary mounting slot on the camera base.
10. Insert the provided star-shaped screw through the primary mounting slot in the camera base, and into
the now visible hole in the NPT adapter.
11. Tighten the screw to lock the camera to the bracket.
Connecting Cables
Refer to the diagrams in the Overview section for the location of the different connectors on the camera base.
