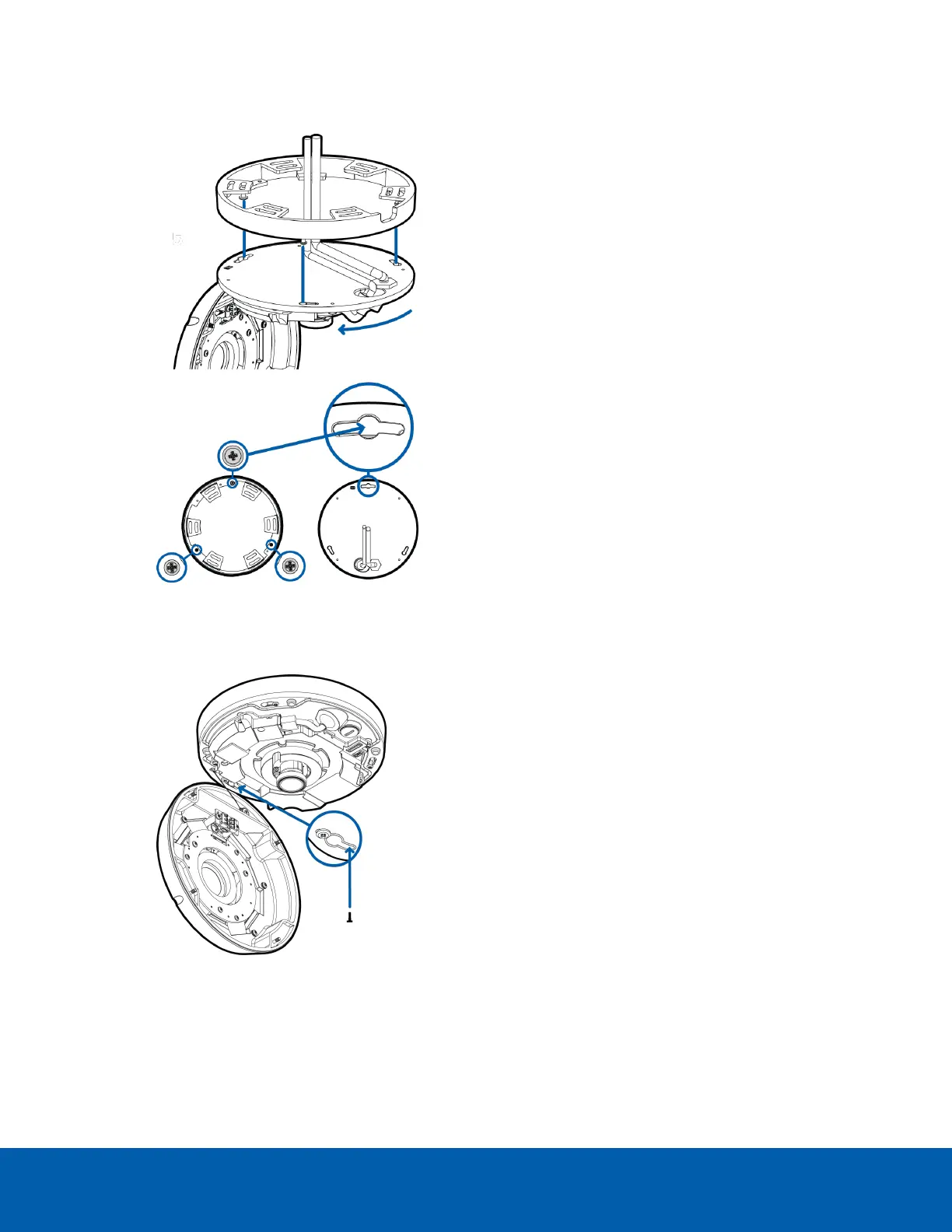

9. Align the mounting slots on the camera base to the camera posts on the bracket, then twist counter-
clockwise until the posts come to the right end of the mounting slots.
A tapped hole is now visible through the left side of the primary mounting slot on the camera base.
10. Insert the provided star-shaped screw through the primary mounting slot in the camera base, and into
the now visible hole in the mounting bracket.
11. Tighten the screw to lock the camera to the bracket.
Mounting the Dome Camera to an Electrical Box
Perform the following steps if the required electrical components and cables must be contained in an
Mounting the Dome Camera to an Electrical Box 18

Avigilon H4 Specifications

General

Sensor Type	CMOS
Impact Protection	IK10
Camera Type	Dome
Day/Night	Yes
Video Compression	H.264
Wide Dynamic Range (WDR)	120dB
Power	PoE (IEEE 802.3af)
Operating Temperature	-40 °C to +50 °C (-40 °F to +122 °F) depending on the model
Ingress Protection	IP66
Onvif Compliance	Yes
IP Rating	IP66
Power Supply	12VDC or PoE
