Avigilon H4 User Manual

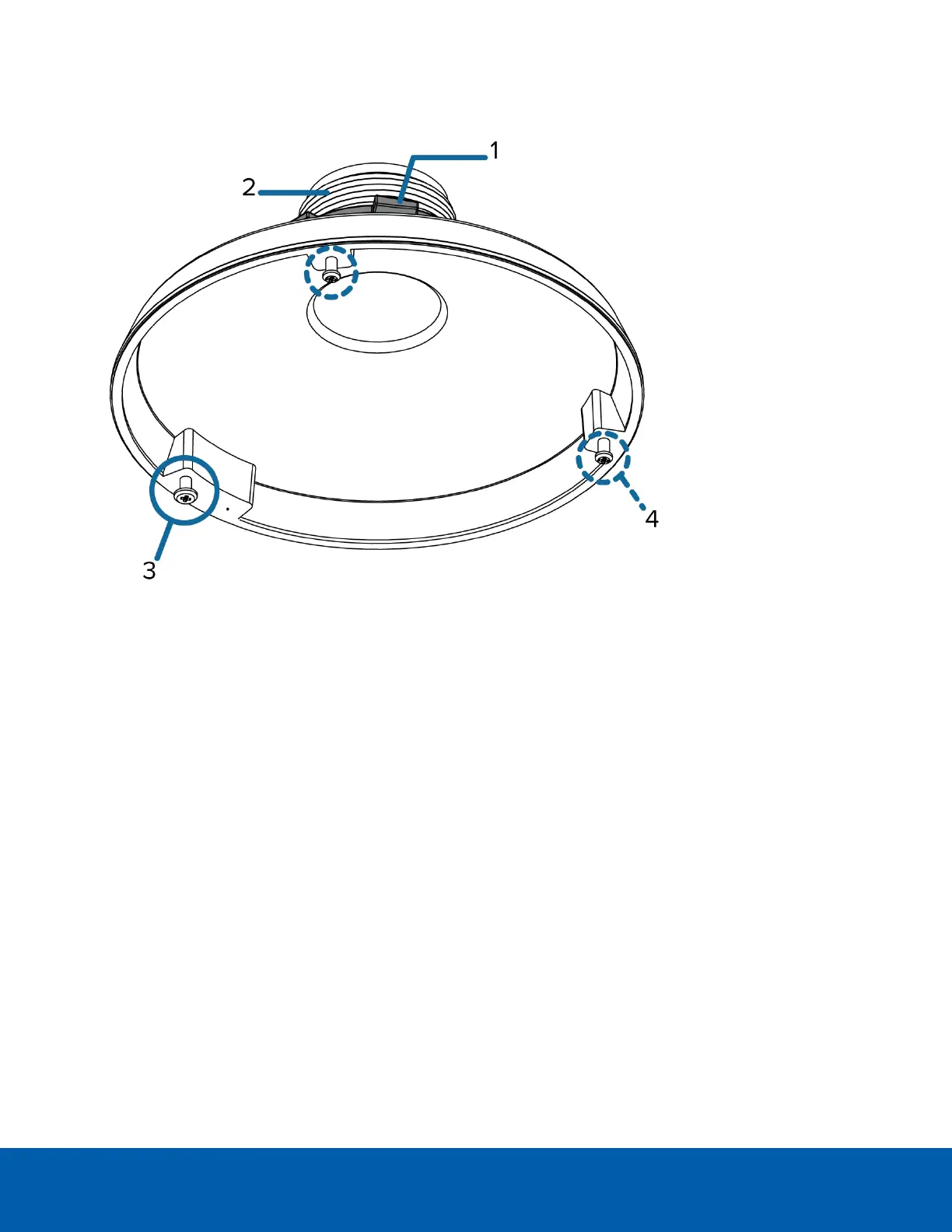

NPT Adapter View
1.
Lock nut
Lock nut for securing the NPT adapter to the pipe.
2.
1-1/2” NPT thread mount
Standard female 1-1/2” NPT thread mount for mounting the dome camera to a pole or bracket.
3.
Primary camera post
Align the primary camera slot on the NPT adapter to the primary mounting post on the dome camera
base.
4.
Secondary camera posts
Align the camera posts on the adapter to the mounting slots on the dome camera base.
Required Tools and Materials
The following tools are required to complete the installation but are not included in the package:
If you will be installing the NPT adapter (H4F-MT-NPTA), you will need:
l
1-1/2" NPT female to female adapter
l
NPT pipe
l
NPT lock nut
NPT Adapter View 5

Avigilon H4 Specifications

General

Sensor Type	CMOS
Impact Protection	IK10
Camera Type	Dome
Day/Night	Yes
Video Compression	H.264
Wide Dynamic Range (WDR)	120dB
Power	PoE (IEEE 802.3af)
Operating Temperature	-40 °C to +50 °C (-40 °F to +122 °F) depending on the model
Ingress Protection	IP66
Onvif Compliance	Yes
IP Rating	IP66
Power Supply	12VDC or PoE
