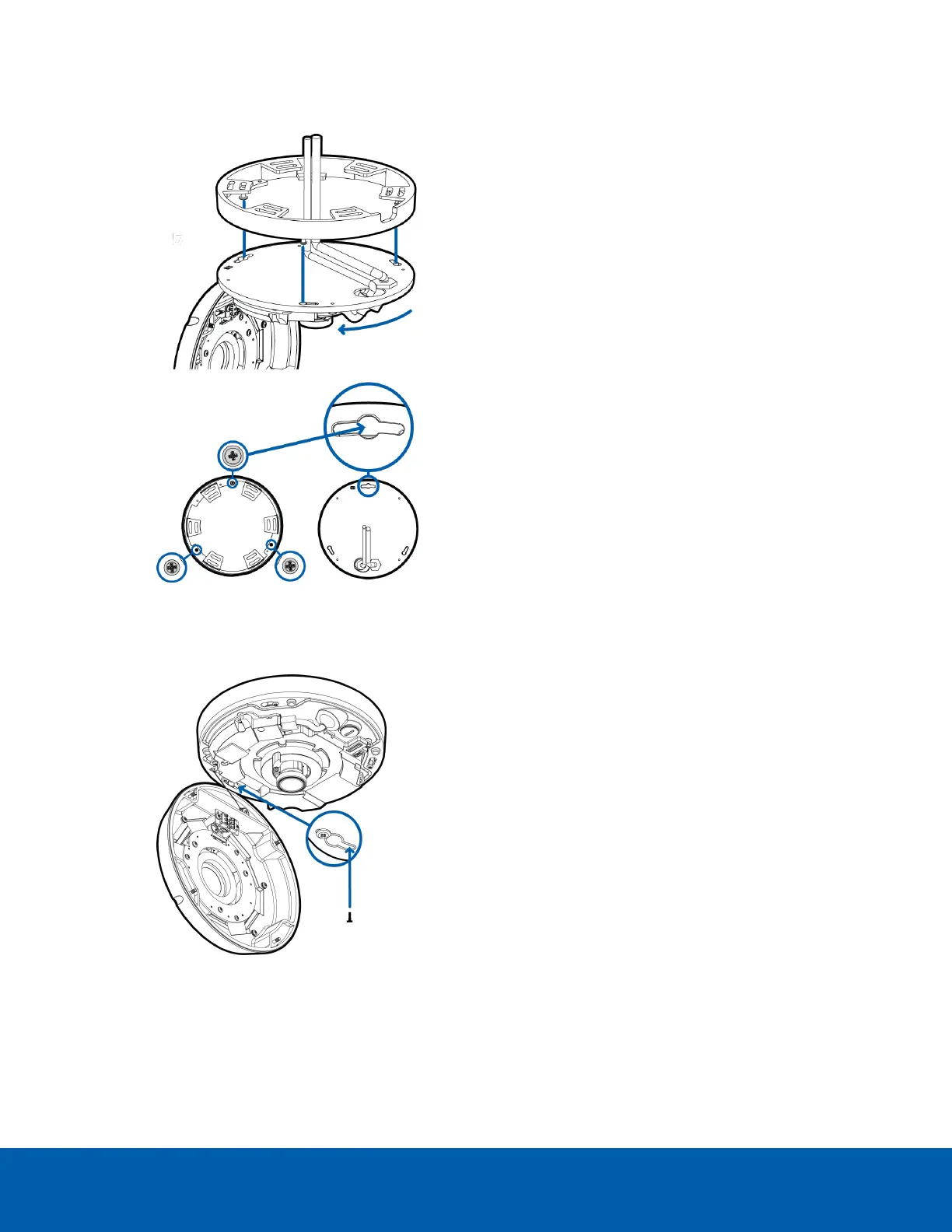

8. Align the mounting slots on the camera base to the camera posts on the bracket, then twist counter-
clockwise until the posts come to the right end of the mounting slots.
A tapped hole is now visible through the left side of the primary mounting slot on the camera base.
9. Insert the provided star-shaped screw through the primary mounting slot in the camera base, and into
the now visible hole in the mounting bracket.
10. Tighten the screw to lock the camera to the bracket.
(Optional) Mounting the Dome Camera to an NPT Pipe
Perform the following steps if the dome camera needs to be installed to an NPT pipe for a pendant
(Optional) Mounting the Dome Camera to an NPT Pipe 22
