installation. To perform this procedure, you need the optional NPT adapter (H4F-MT-NPTA).
Note: The NPT pipe and NPT-female to NPT-female adapter are not supplied by Avigilon and should
be sourced separately.
If you do not need to use the auxiliary cable, skip the relevant steps.
1. Pull the required cable through the NPT conduit pipe.

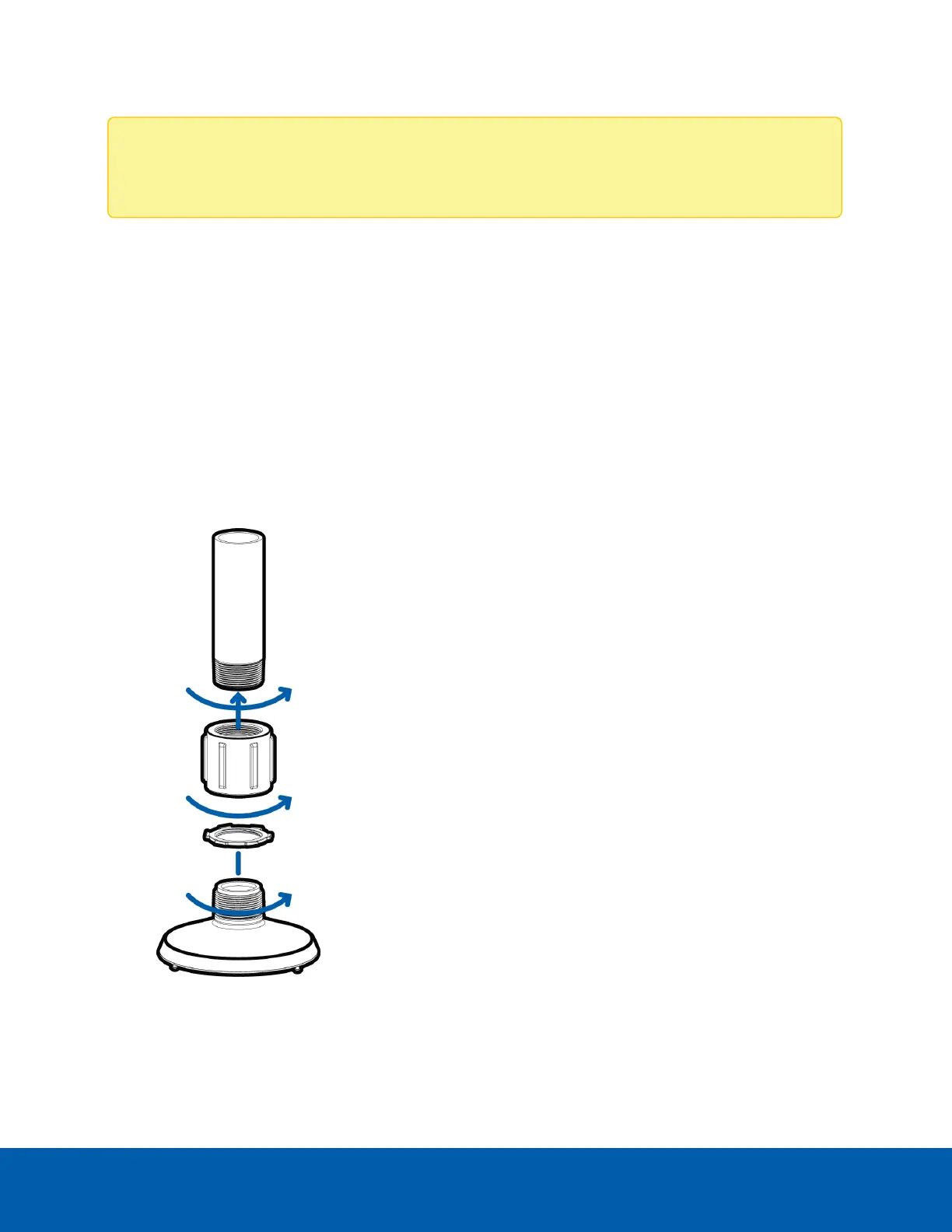

2. Apply thread seal tape to the pipe in the direction shown in the image below and screw on the 1-1/2”
NPT female to NPT female pipe adapter.
3. Screw the lock nut onto the NPT adapter.
4. Apply thread seal tape to the NPT adapter and screw it into the pipe adapter.
Make sure the parts are assembled in this order from NPT conduit pipe to camera adapter:
a. NPT conduit pipe
b. 1-1/2" NPT female to female pipe adapter
c. Lock nut
d. NPT adapter
(Optional) Mounting the Dome Camera to an NPT Pipe 23
