Avigilon H4 User Manual

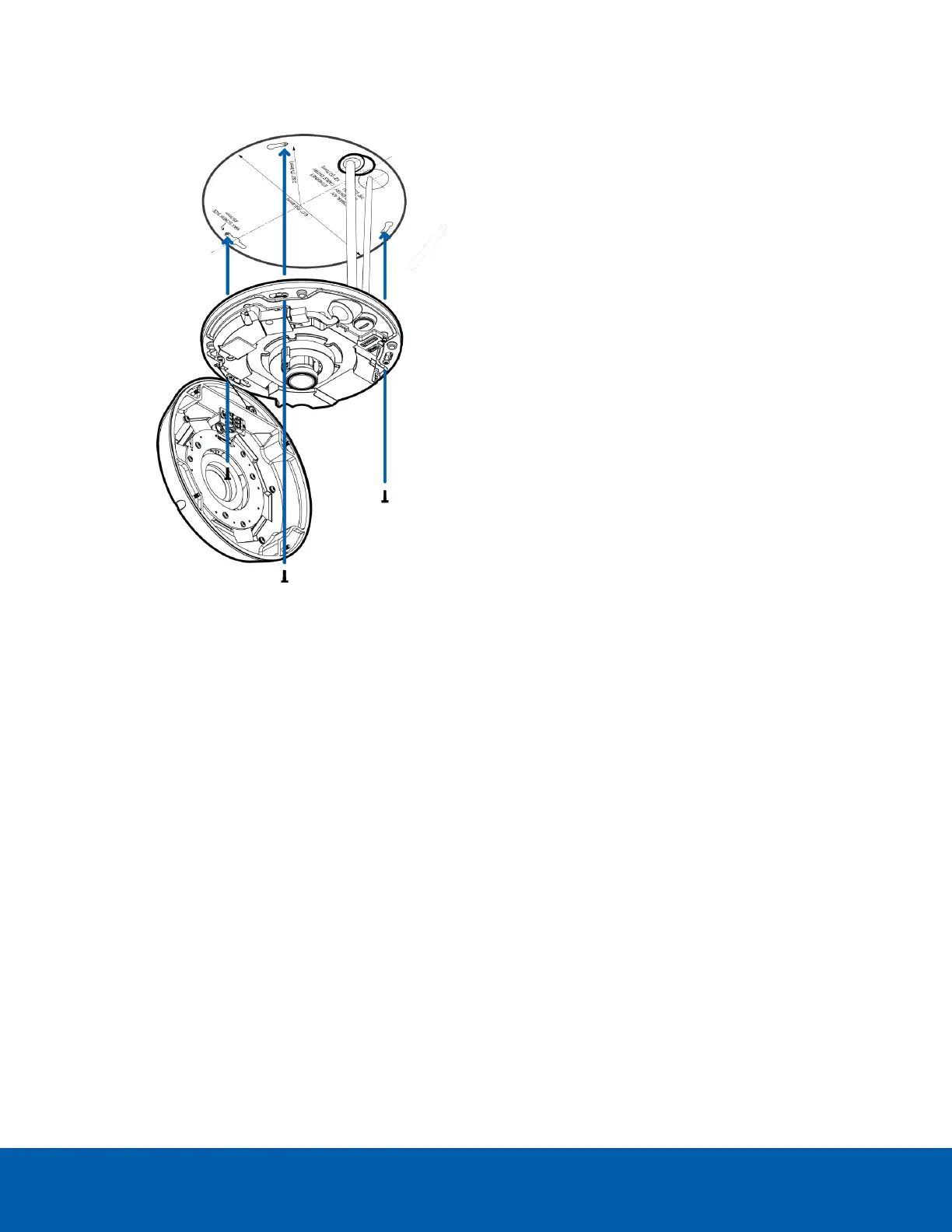

9. Align the camera base to the pilot holes then use the provided self-tapping screws to secure the
camera to the mounting surface.
Mounting the Dome Camera Using the Side Cable Entry Hole
Perform the following steps if the required cables will be run along the mounting surface. Use this procedure
if the mounting surface is difficult to drill into, or if the cables must be routed outside of the mounting surface.
If you do not need to use the auxiliary cable, skip the relevant steps.
Mounting the Dome Camera Using the Side Cable Entry Hole 14

Avigilon H4 Specifications

General

Sensor Type	CMOS
Impact Protection	IK10
Camera Type	Dome
Day/Night	Yes
Video Compression	H.264
Wide Dynamic Range (WDR)	120dB
Power	PoE (IEEE 802.3af)
Operating Temperature	-40 °C to +50 °C (-40 °F to +122 °F) depending on the model
Ingress Protection	IP66
Onvif Compliance	Yes
IP Rating	IP66
Power Supply	12VDC or PoE
