Avigilon H4 User Manual

Green LED provides information about device operation. For more information, see Connection Status
LED Indicator on page35.
10.
Lanyard
Anchors the dome cover to the camera base.

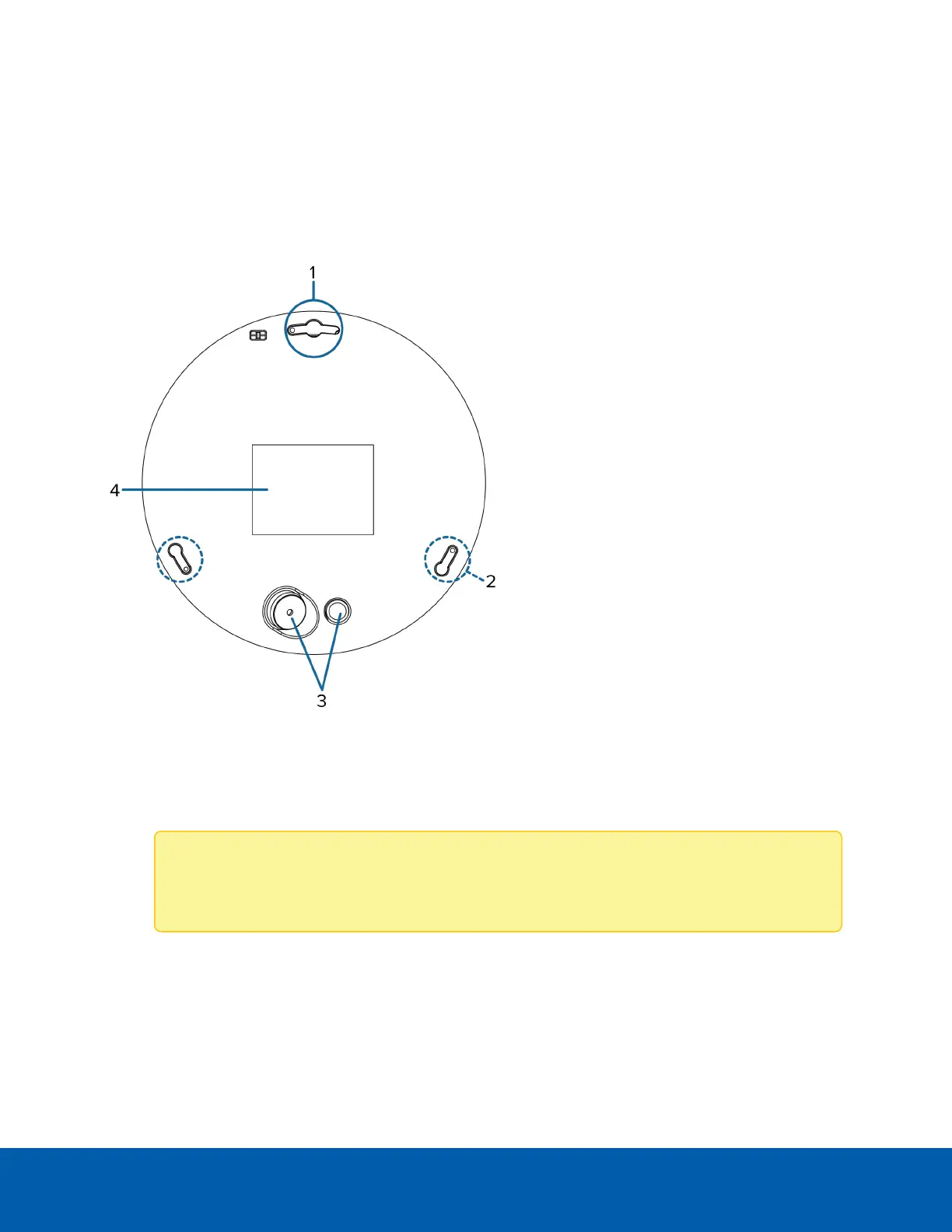

Bottom View
1.
Primary mounting slot
The primary mounting point for the camera.
If using the optional mounting bracket or NPT adapter, align the primary camera post (largest diameter
post) with the primary mounting slot.
Note: If you are planning to mount the camera on a wall, be aware that the primary mounting
slot aligns with the top of the video image.
2.
Secondary mounting slots
Mounting points for the camera.
If you are using the optional mounting bracket or NPT adapter, align the camera posts to the mounting
slots.
3.
Cable entry holes
Bottom View 3

Avigilon H4 Specifications

General

Sensor Type	CMOS
Impact Protection	IK10
Camera Type	Dome
Day/Night	Yes
Video Compression	H.264
Wide Dynamic Range (WDR)	120dB
Power	PoE (IEEE 802.3af)
Operating Temperature	-40 °C to +50 °C (-40 °F to +122 °F) depending on the model
Ingress Protection	IP66
Onvif Compliance	Yes
IP Rating	IP66
Power Supply	12VDC or PoE
