Avigilon H4 User Manual

electrical gang box. To mount the dome camera to an electrical gang box, you must use the provided
bracket.
If you do not need to use the auxiliary cable, skip the relevant steps.
1. Install the electrical gang box as required.

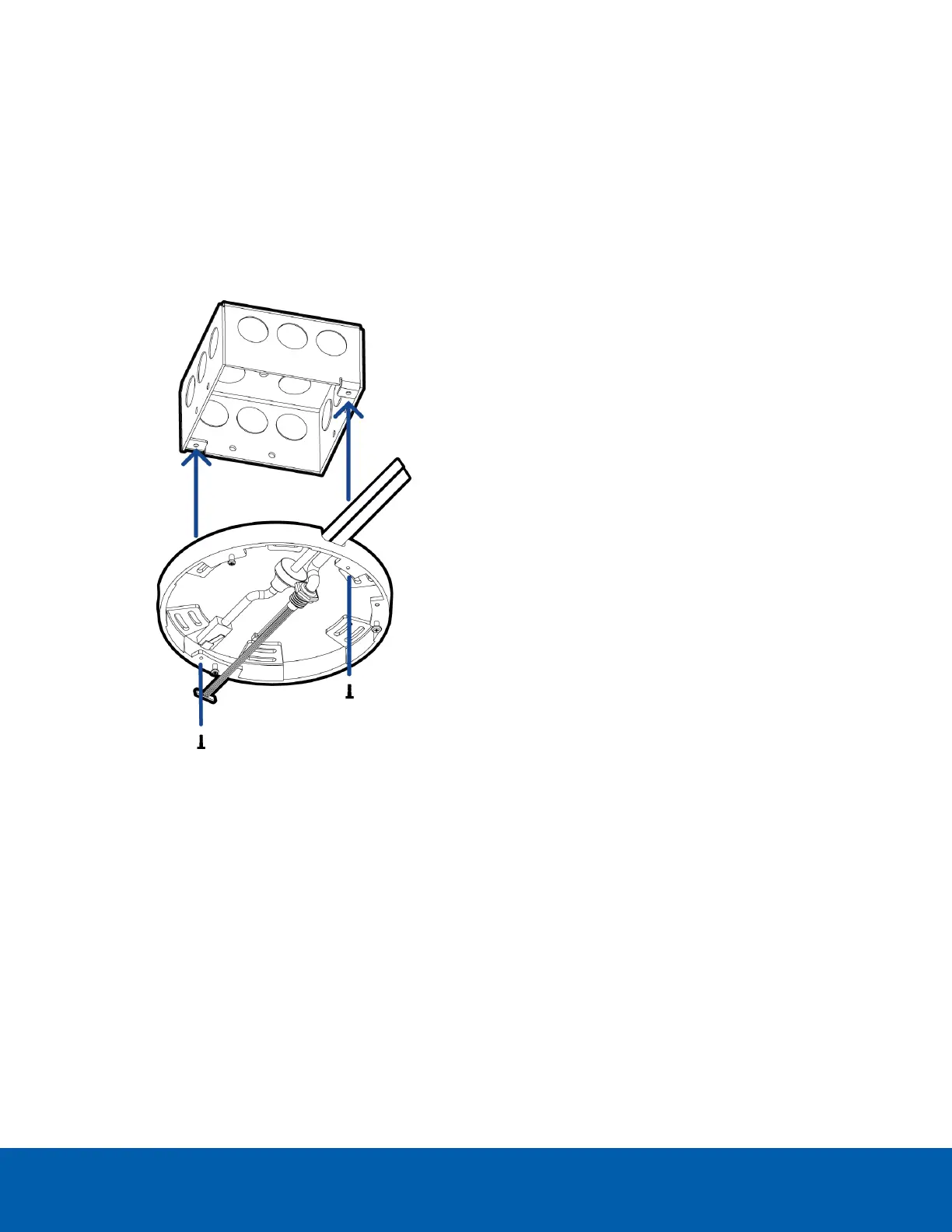

2. Align the bracket mounting holes to the mounting points on the electrical gang box.
If you are mounting the camera to a wall, make sure the primary mounting post on the bracket is at the
top, or the video image will be rotated.
3. Use the provided machine screws to secure the bracket to the electrical gang box.
Mounting the Dome Camera to an Electrical Box 19

Avigilon H4 Specifications

General

Sensor Type	CMOS
Impact Protection	IK10
Camera Type	Dome
Day/Night	Yes
Video Compression	H.264
Wide Dynamic Range (WDR)	120dB
Power	PoE (IEEE 802.3af)
Operating Temperature	-40 °C to +50 °C (-40 °F to +122 °F) depending on the model
Ingress Protection	IP66
Onvif Compliance	Yes
IP Rating	IP66
Power Supply	12VDC or PoE
