11.1.1. PGM Out
The video switcher has 2 SDI ports and 1 HDMI ports for PGM outputs. The multiple PGM outputs are
flexible for users to connect the PGM signals to serval devices for live streaming or monitoring.
11.1.2. Multiview Out
The HDMI multiview port's default output is the Multiview. Connect it to an additional LCD display to
clearly monitor the 4 SDI, 2 HDMI inputs, PVW, PGM, and status interface.

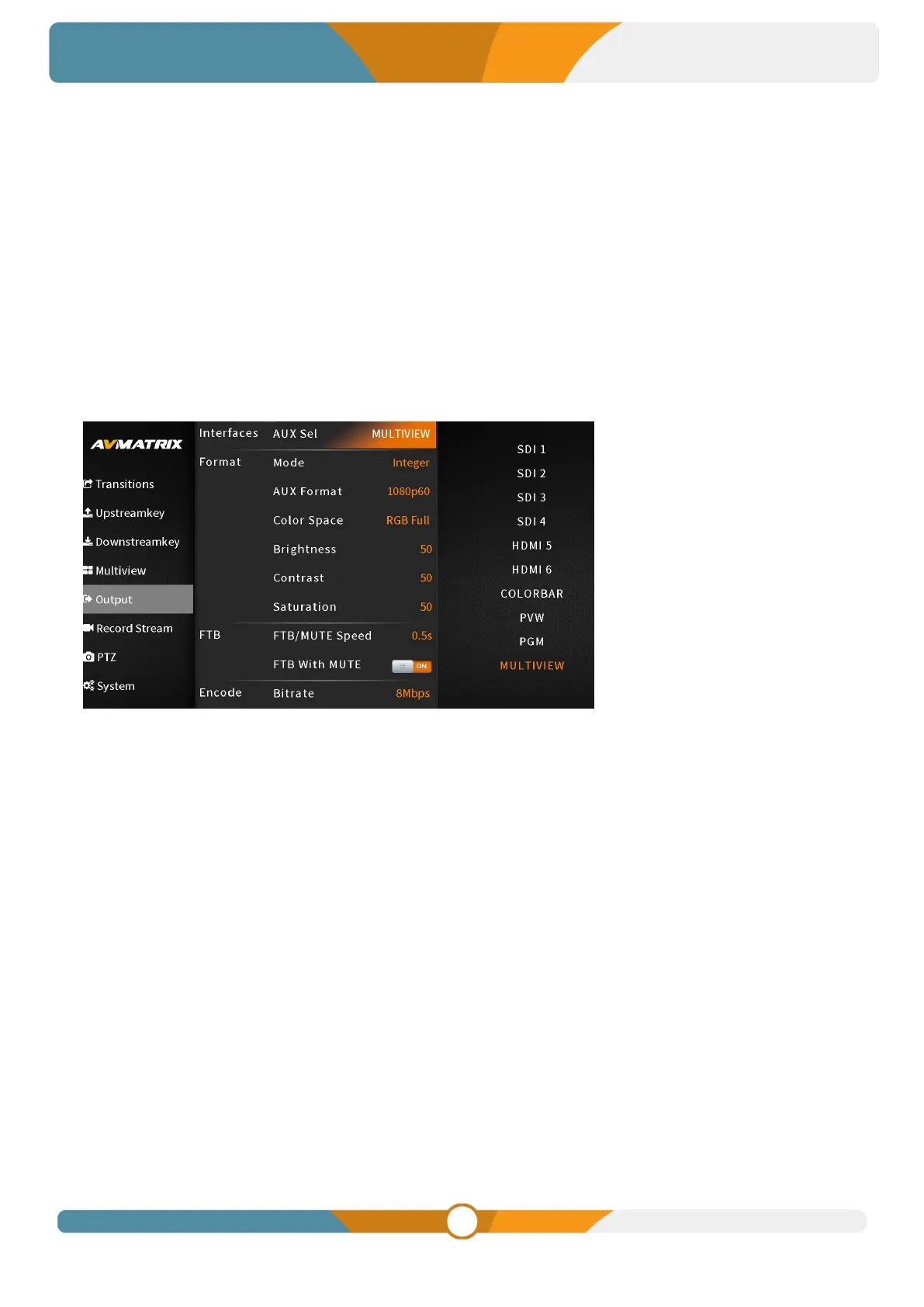

11.1.3. AUX Out
The AUX OUTs can be configured to output SDI1, SDI2, SDI3, SDI4, HDMI5, HDMI6, PVW, PGM, Color
Bar or Multiview out signal from the menu.
11.1.4. USB-C Out
Connecting the USB output to a PC with a type-C USB2.0 cable, user can use software like OBS,
PotPlayer, VMix, etc. to play or store the captured USB Out video and audio on live streaming platforms
like YouTube, Facebook, Twitter, etc. The USB2.0 streaming output is based on UVC (USB video class)
and UAC (USB audio class) standard. No additional drivers need be installed. The relevant video and
audio devices will be detected in the Windows Device Manager as below:
• Under Imaging Devices: USB Capture Video
• Under Audio inputs and outputs: USB Capture Audio
The default video source for USB out is the PGM output.
11.2. Output Format Settings
Configure the output format in the menu, including AUX format, color space, brightness, contrast, and
saturation.
11.2.1. Output Format
The switcher supports up/ down scaling output. Besides, user can switch the Frame Rate Mode between
