AVMATRIX Shark S6 User Manual

SHARK S6
VIDEO SWITCHER
Shark S6
HDMI/SDI VIDEO SWITCHER
3

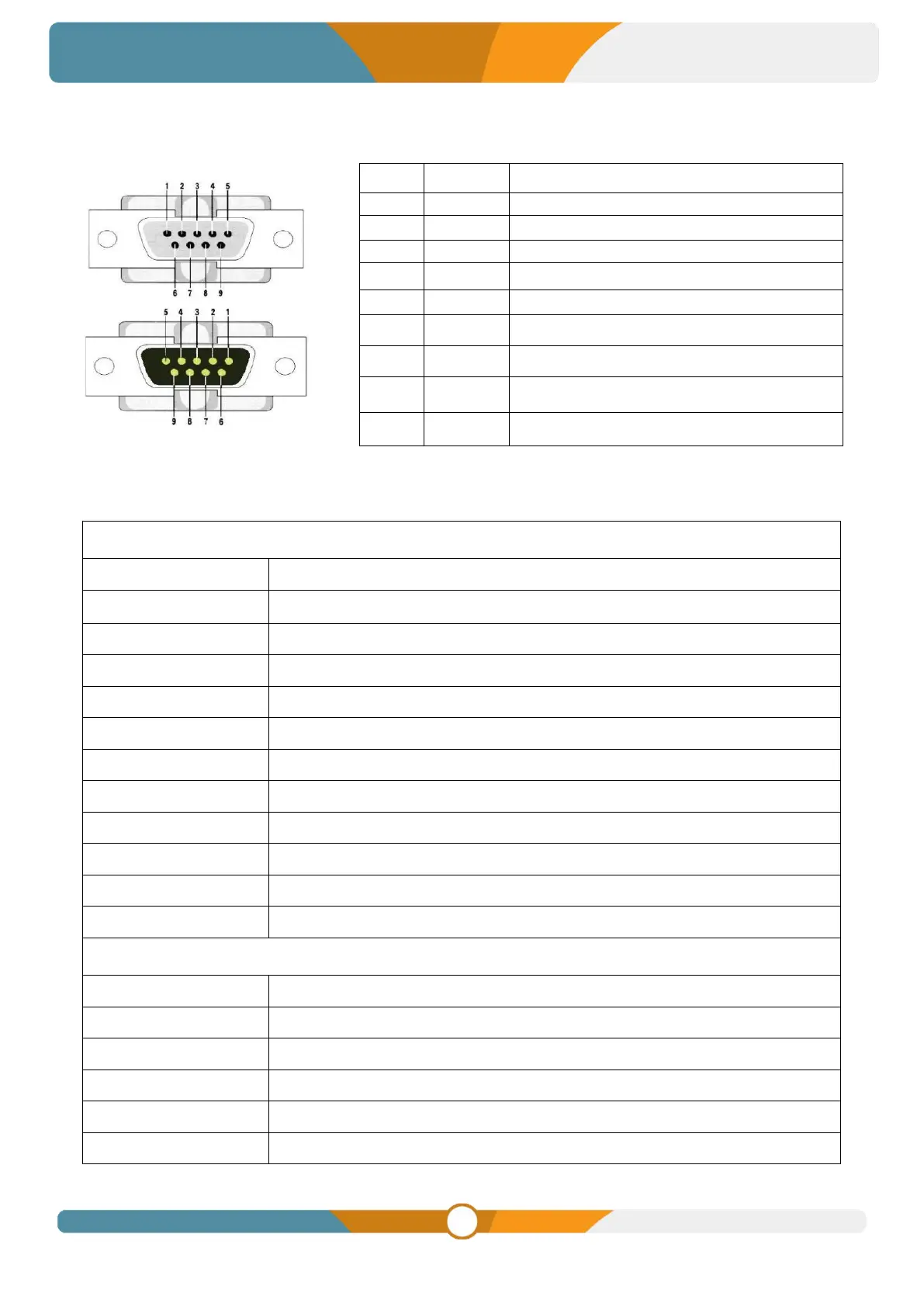

2.3. RS232/RS422/RS485 (DB9) Definition
3. SPECIFICATION
CONNECTION
Video In
SD/HD/3G-SDI(75Ω) ×4, HDMI type-A(100Ω) ×2
PGM Outputs
HD/3G-SDI(75Ω) ×2, HDMI Type-A(100Ω) ×1
Multiview Outputs
HDMI type-A(100Ω) ×1
AUX Outputs
3G-SDI(75Ω) ×2, including IN1~6, PVW, PGM, Color Bar, Multiview
Stream Output
LAN
Capture Output
USB type-C
Audio Input
MIC ×2
Audio Output
Line ×1, Earphone slot×1
Media Port
USB type-A×1
Camera Control Port
LAN, RS232/RS422/RS485
Tally Port
DB-15
Power In
DC 12V
STREAM& REC
Bitrate
2M~32Mbps
Rate Control
CBR/VBR
Stream Protocols
RTMP(S)/ RTSP/ SRT
REC SD Card Format
FAT32/exFAT/NTFS
REC USB Disk Format
FAT32/exFAT/NTFS
REC File segment
1~120mins
NO.
Port
Definition
1
RXD-
RS422
2
RXD
Receive Data
3
TXD
Transmit Data
4
TXD+
RS422
5
GND
System Ground
6
RXD+
RS422
7
RTS
Request to Send
8
CTS
Clear to Send
9
TXD-
RS422
