AVMATRIX Shark S6 User Manual

SHARK S6
VIDEO SWITCHER
Shark S6
HDMI/SDI VIDEO SWITCHER
2

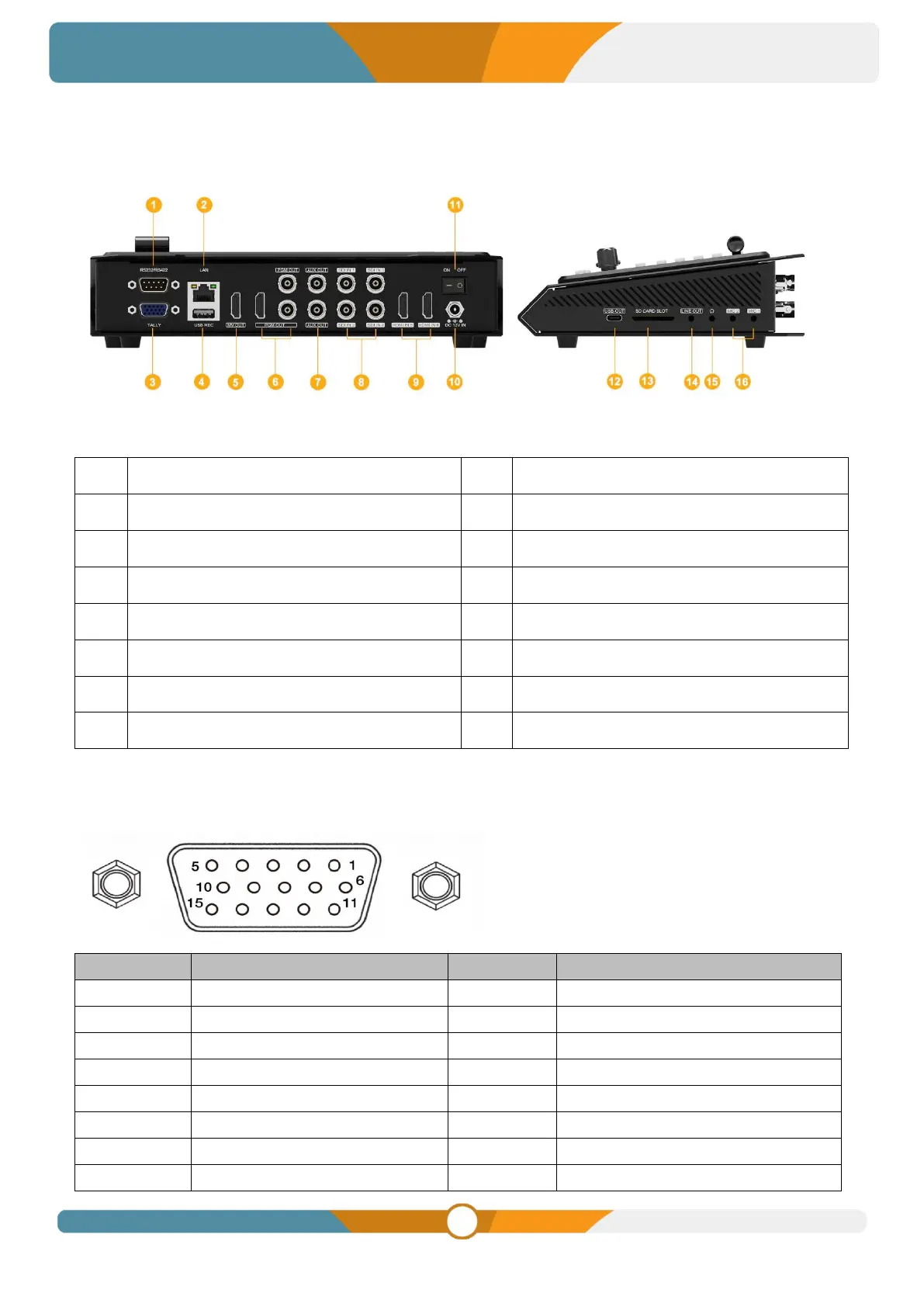

2. INTERFACES
2.1. Interface Overview
1
RS232/RS422/RS485
9
HDMI IN × 2
2
LAN (for streaming and PC remote control)
10
DC 12V IN × 1
3
GPIO (for tally)
11
POWER SWITCH
4
USB REC (for recording and importing logo)
12
USB OUT × 1 (for capturing on PC)
5
MULTIVIEW OUT × 1
13
SD CARD SLOT (for recording)
6
HDMI PGM OUT × 1, SDI PGM OUT × 2
14
LINE OUT × 1
7
AUX OUT × 2
15
EARPHONE OUT × 1
8
SDI IN × 4
16
MIC IN × 2
2.2. Tally PIN Definition
PIN
Definition
PIN
Definition
11
PGM-IN1
6
PVW-IN1
12
PGM-IN2
7
PVW-IN2
13
PGM-IN3
8
PVW-IN3
14
PGM-IN4
9
PVW-IN4
15
PGM-IN5
10
PVW-IN5
3
PGM-IN6
4
PVW-IN6
5
GND
1
GPIO
2
GPIO
