19

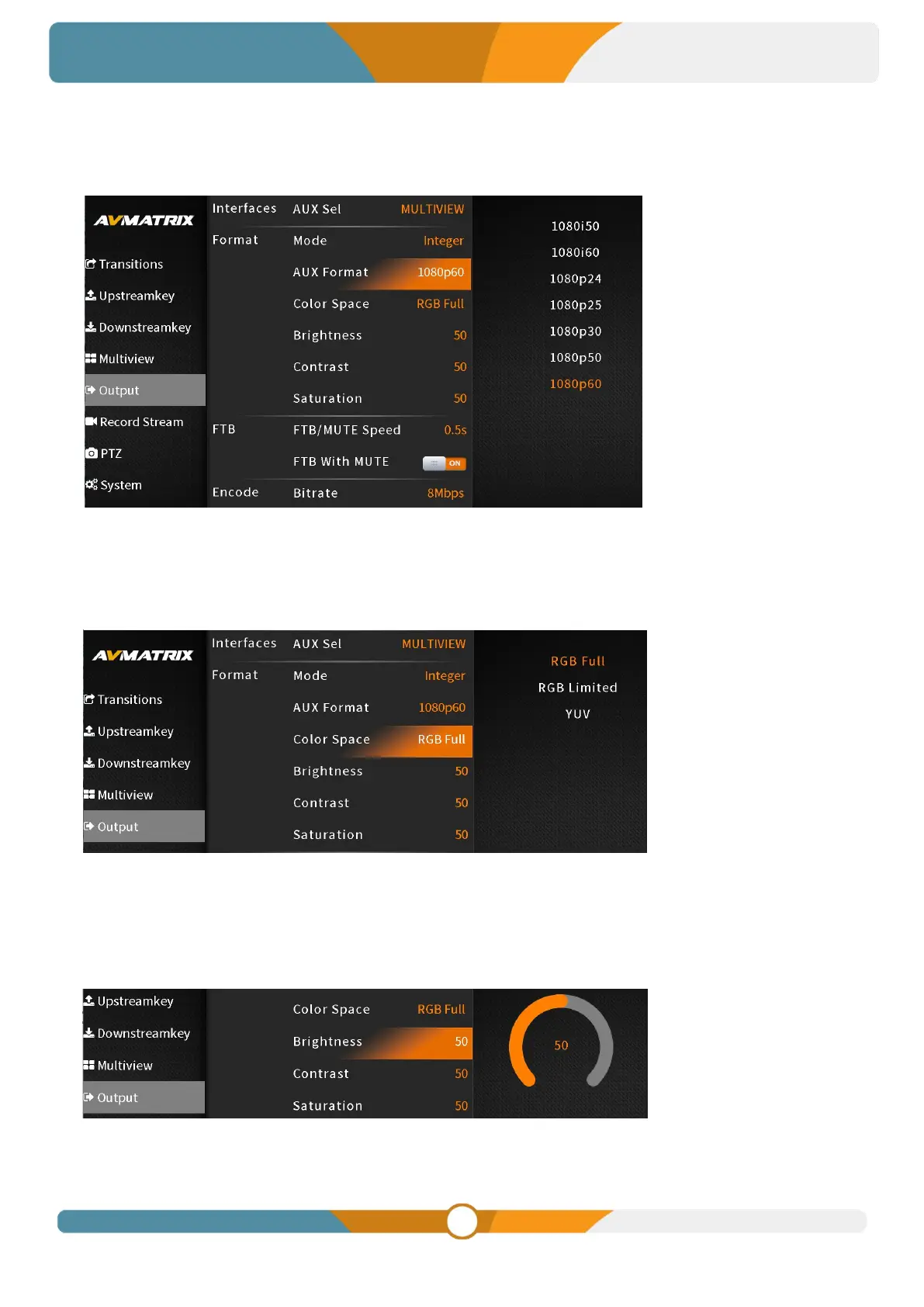

Integer or Decimal. When the Frame Rate Mode is integer, there are 1080i50, 1080i60, 1080p24,
1080p25, 1080p30, 1080p50, 1080p60 options available. When the Frame Rate Mode is Decimal, there
are 1080i59.94, 1080p23.97, 1080p29.97, 1080p59.94 options available. The default format is 1080p60.
11.2.2. Output Color Space
The output color space can be set to YUV, RGB Full, or RGB Limited. The default color space for output is
YUV.
11.2.3. Output Image Settings
Adjust the output's brightness, contrast, and saturation in the menu. The setting range is from 0% to 100%.
The default setting is 50%.
