Figure 7-23. Booting OS (linux) from network.
7.3.2.4 Booting OS from USB

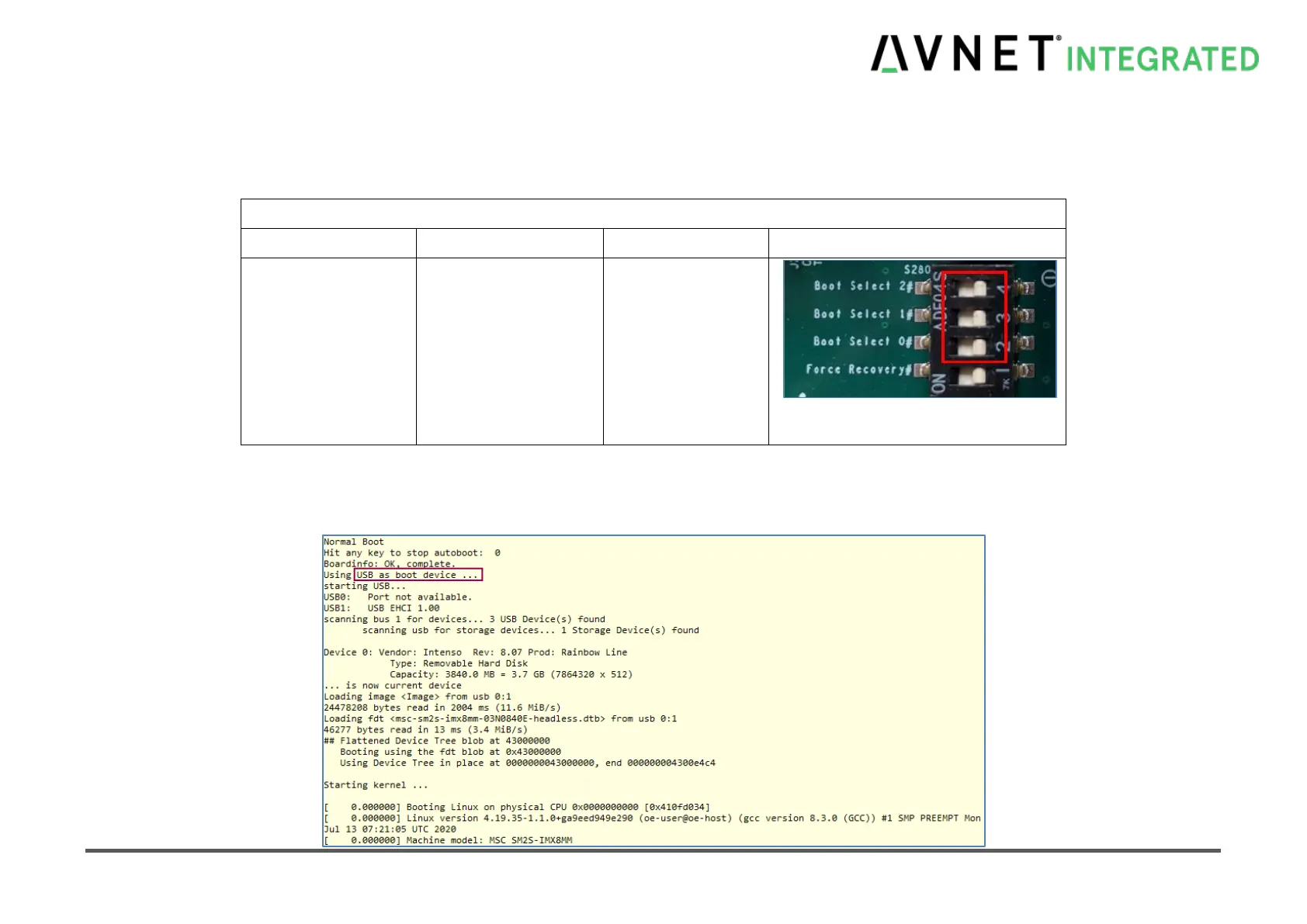

USB Boot Mode
BOOT_SEL0#
BOOT_SEL1#
BOOT_SEL2#
Dip Switches on SM2-MB-EP1
HIGH
HIGH
HIGH
Table 30: USB Boot Mode
In this configuration the Linux kernel image (Image) and the device tree blob are being loaded from the first partition on the USB. The second partition
contains the Linux file system (FS, ext4).
Example:
