22 HMX Extender System Installer/User Guide

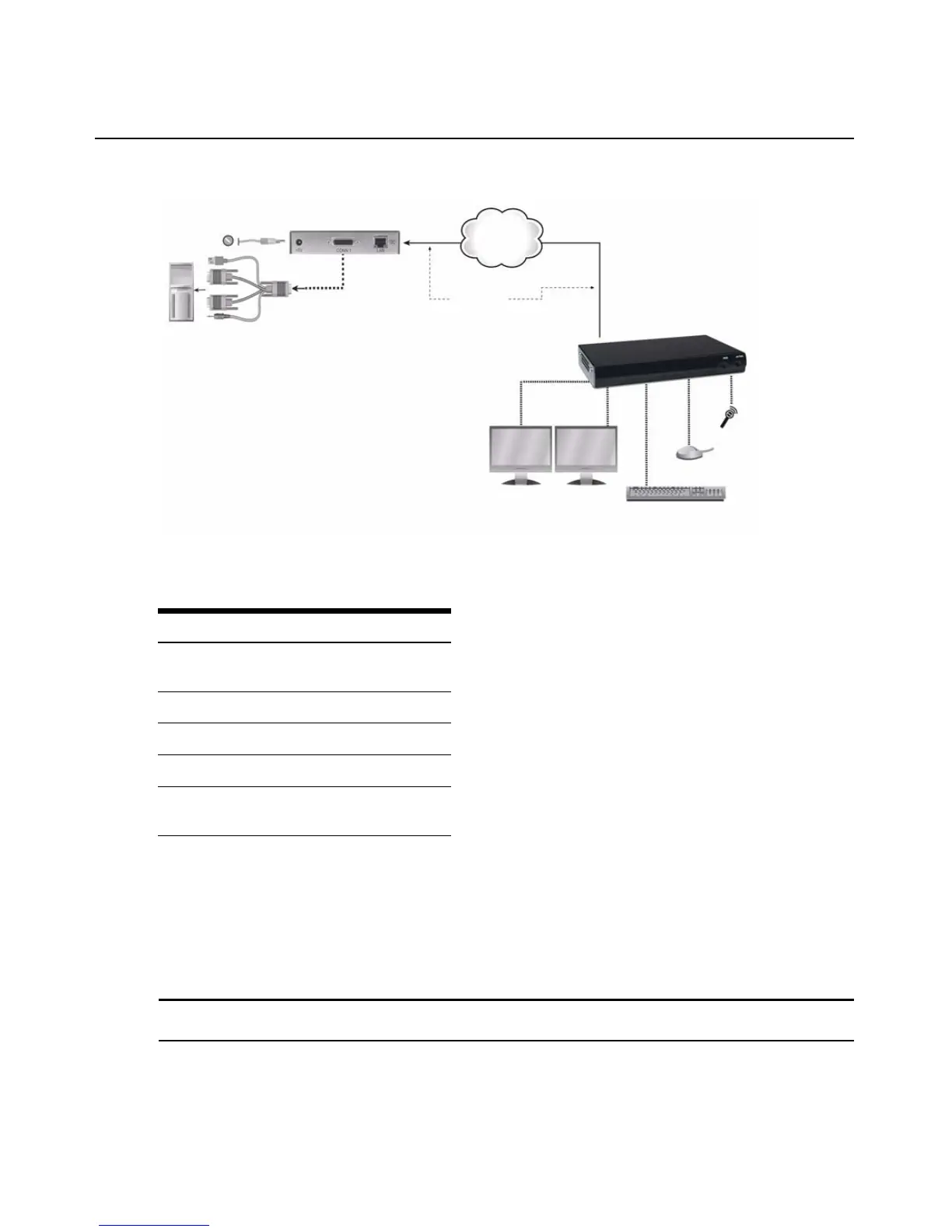

Figure 2.8: Networked Installation
The HMX 1070 and HMX 2050 user stations have been preconfigured with factory-default
network settings. If you install only one user station and one associated transmitter on a subnet, you
do not need to change these default network settings. If you install multiple units on the same
subnet, you will need to assign a unique IP address to each unit or configure them for DHCP. This
can be done via the serial port and must be carried out before displaying multiple devices on the
same network.
NOTE: The DHCP server must be configured to assign IP addresses to the user station that do not expire. Do
not change the mode to DHCP unless the equipment is connected to a DHCP server.
Table 2.9: Figure 2.8 Descriptions
Number Description
1 HMIQDHDD
Transmitter
2 Remote Workstation
3 IP Network
4 UTP Cable
5 HMX 2050 User
Station
