Chapter 3: Operations 51
Configuring Video Input Settings
The HMX 1050 and HMX 1070 user stations are capable of transmitting either digital (DVI) or
analog video (VGA) from the remote workstation to your monitor. The HMX 2050 user station is
capable of transmitting DVI only from the remote workstation to your analog or digital monitor.
The HMX system will normally operate well when set on its default settings. The HMX 1050 user
station needs the transmitter to be set for the dedicated video type to operate correctly.
NOTE: Video-display problems may occur if video input settings are not configured correctly,
To configure video input settings:
1. From the serial menu, press 2 to access the Transmitter Main Menu and press Enter. If the
password option is enabled, you will be prompted for a password.
2. Press 7 to access the Console Settings Menu and press Enter. The Console Settings Menu will
display.

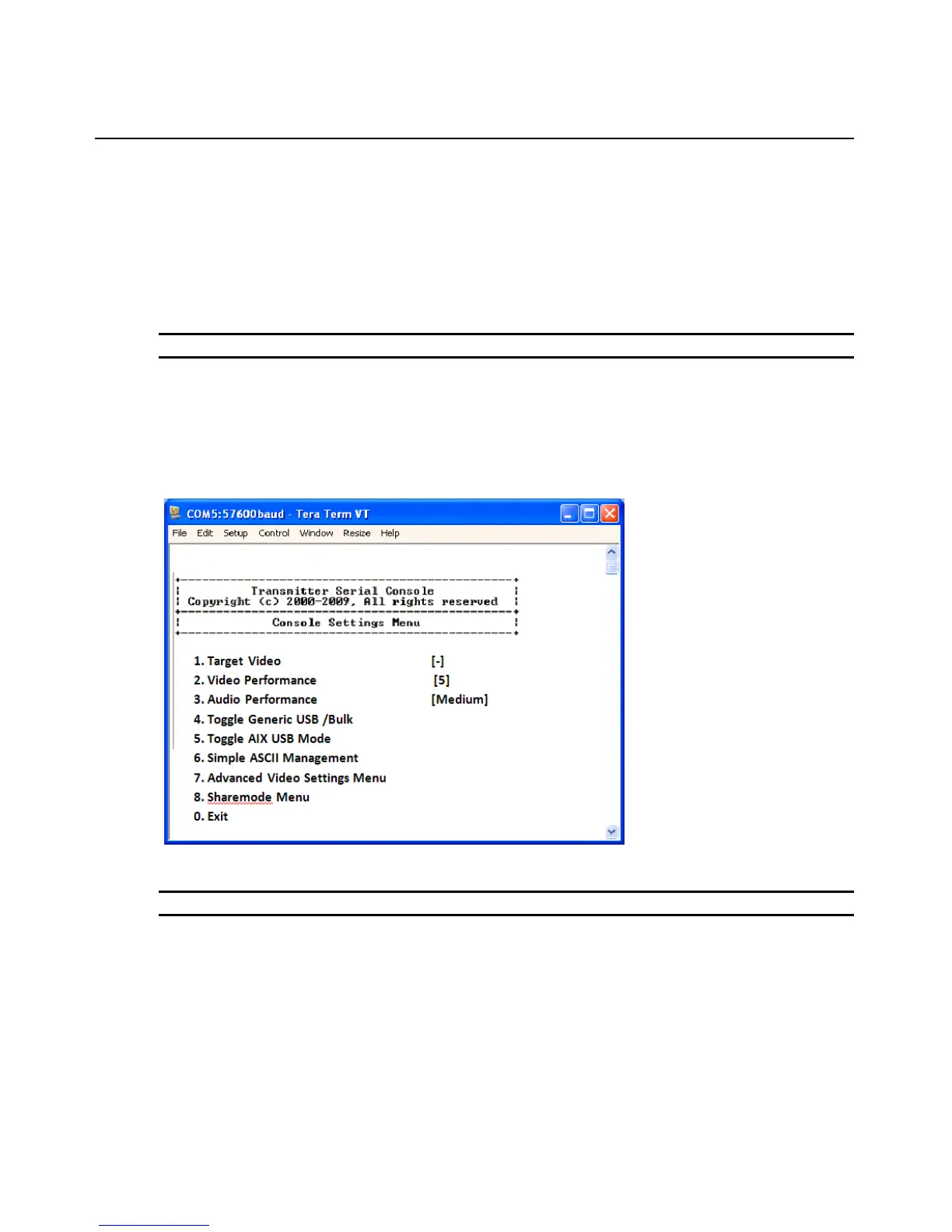

Figure 3.29: Transmitter Console Settings Menu
NOTE: Under Video Performance, the number 1 signifies lowest quality while 5 signifies highest quality.
