Chapter 4: Share Mode 65

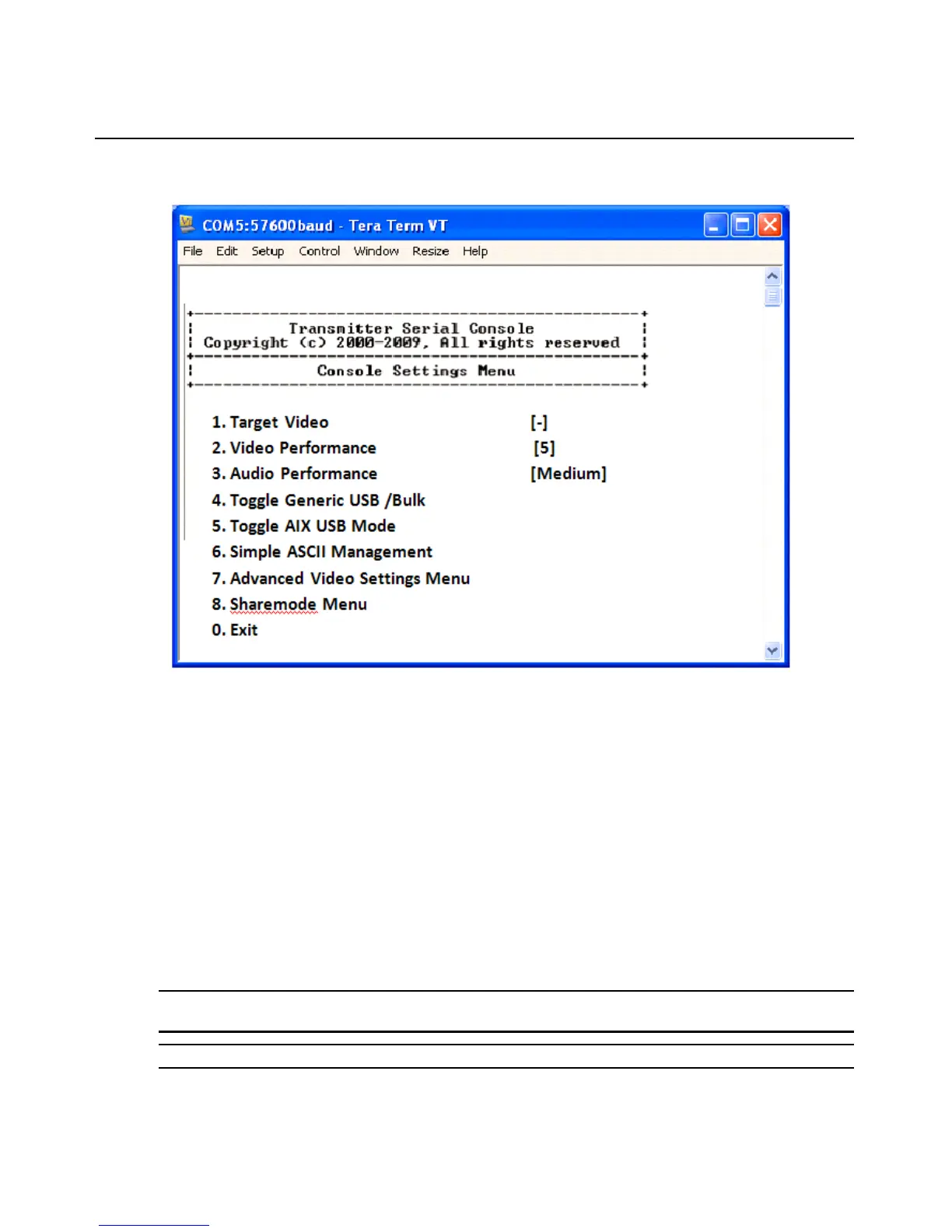

Figure 4.1: Transmitter Console Settings Menu
3. Press 8 to access the Share Mode menu.
4. To enable or disable Share Mode, select option 1 and toggle back and forth.
5. Press 0 (zero) to exit and apply changes.
Connecting
From a user station, two steps are required to make a Share Mode connection with a Share Mode
enabled transmitter:
• Via the serial port of the user station, set the transmitter for Share Mode connection.
• On the user station, enter the TX IP address of the transmitter with which a connection is
desired. To configure this option on the user station, see
Configuring Network Settings on
page 33.
NOTE: In order to make a successful Share Mode connection, the transmitter that the user station is attempting
to connect to must have Share Mode enabled.
NOTE: Repeat the steps above for each user station that you wish to connect to the transmitter.
