52 HMX Extender System Installer/User Guide
3. Press 1 to access the Target Video Menu and press Enter.

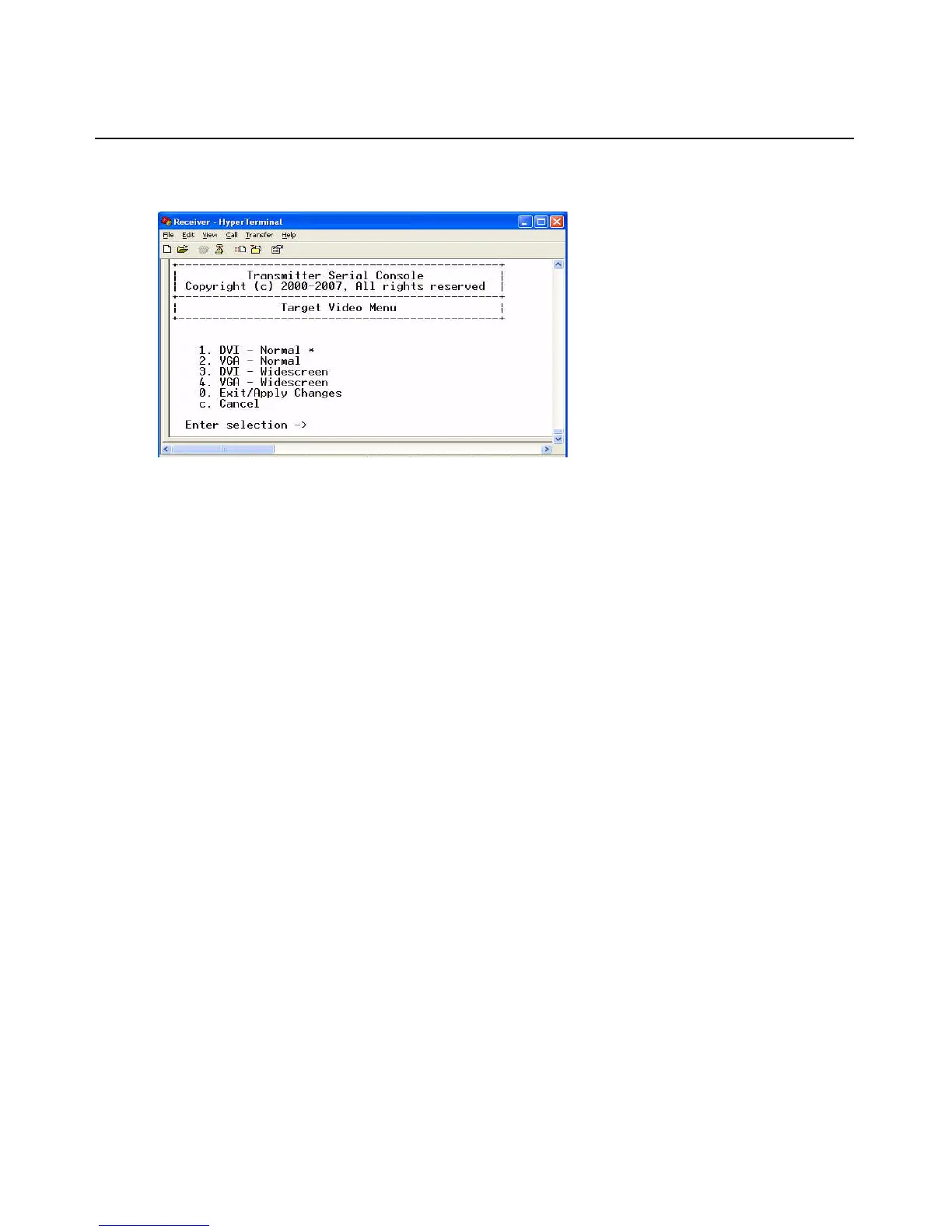

Figure 3.30: Transmitter Target Video Menu
4. Press 1 to select DVI Normal and press Enter.
5. Configure video input settings as appropriate.
6. Type 0 (zero) and press Enter to save your changes and exit the menu. The unit resets.
Preferred monitor resolutions (EDID preferred timing)
The HMIQDI and HMIQDHDD transmitters can be configured to prefer certain monitor
resolutions.
To configure preferred monitor resolutions:
1. Press 2 on the serial menu to access the Transmitter Main Menu and press Enter. If the
password option is enabled, you will be prompted for a password.
2. Press 7 to access the Console Settings Menu and press Enter. The Console Settings Menu will
display.
3. Press 7 to access the Advanced Video Settings Menu.

Avocent HMX Specifications

General

Type	KVM extender
Resolution Support	Up to 1920x1200
USB Support	Yes
Distance	Up to 100 meters
Video Interface	DVI
Audio	Yes
Power Supply	External
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
