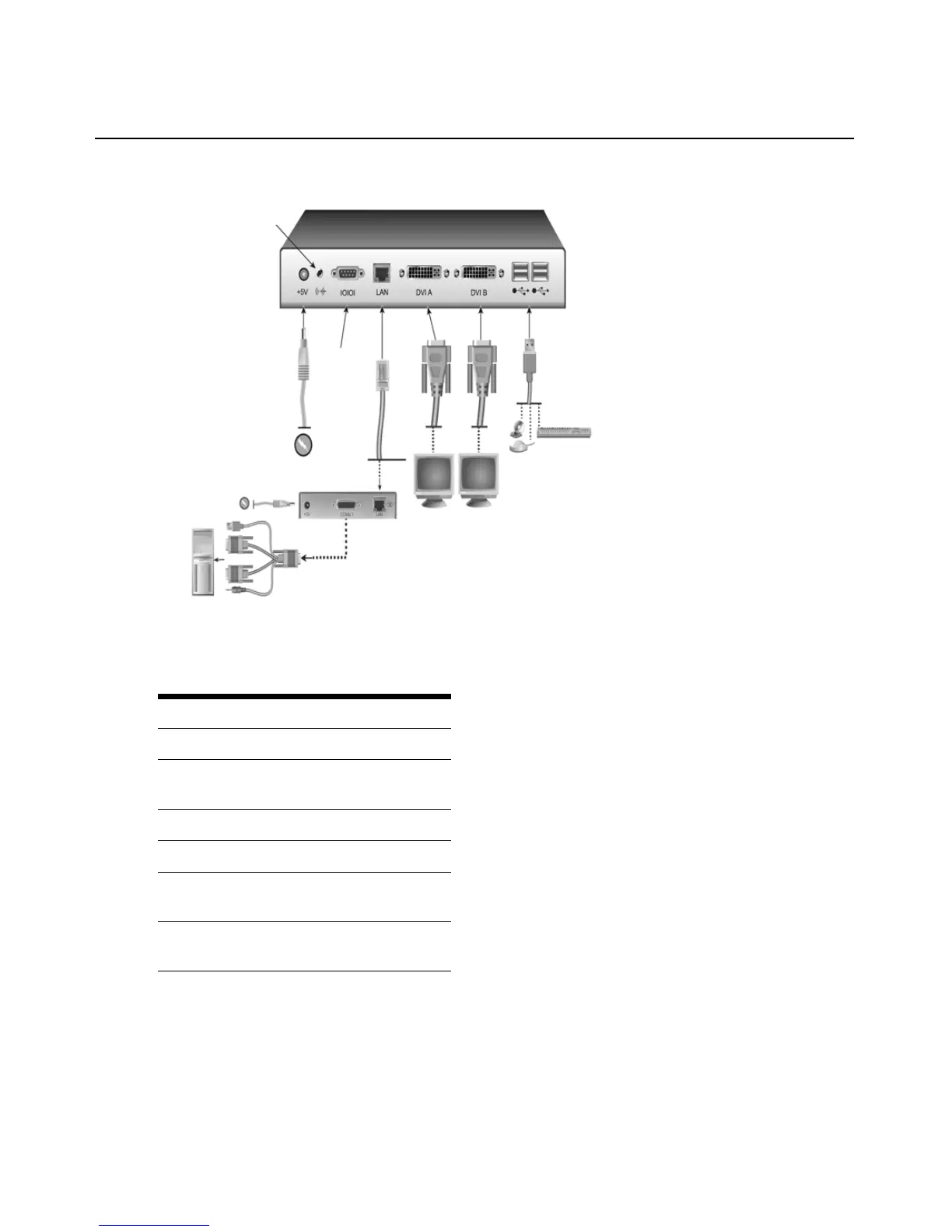

Figure 2.7: HMX 2050 User Station and HMIQDHDD Installation Shown
Connecting power
The HMX 1070 and HMX 2050 user stations and associated transmitters feature an external power
supply. A DC power jack is located on the rear of each.
Table 2.8: Figure 2.7 Descriptions
Number Description
1 Speakers
2 External Power
Supply
3 Serial Port
4 Remote Workstation
5 HMIQDHDD
Transmitter
6 Local Peripherals
attached via USB
5
4
2
3
1
6

Avocent HMX Specifications

General

Type	KVM extender
Resolution Support	Up to 1920x1200
USB Support	Yes
Distance	Up to 100 meters
Video Interface	DVI
Audio	Yes
Power Supply	External
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
