Revision Date: 1/17/2020
Ventilation
If you are mounting the display in an enclosure, leave sufficient space on all sides between it and surrounding
objects, as shown in Figure 3-1. This allows heat to disperse, maintaining the proper operating temperature.

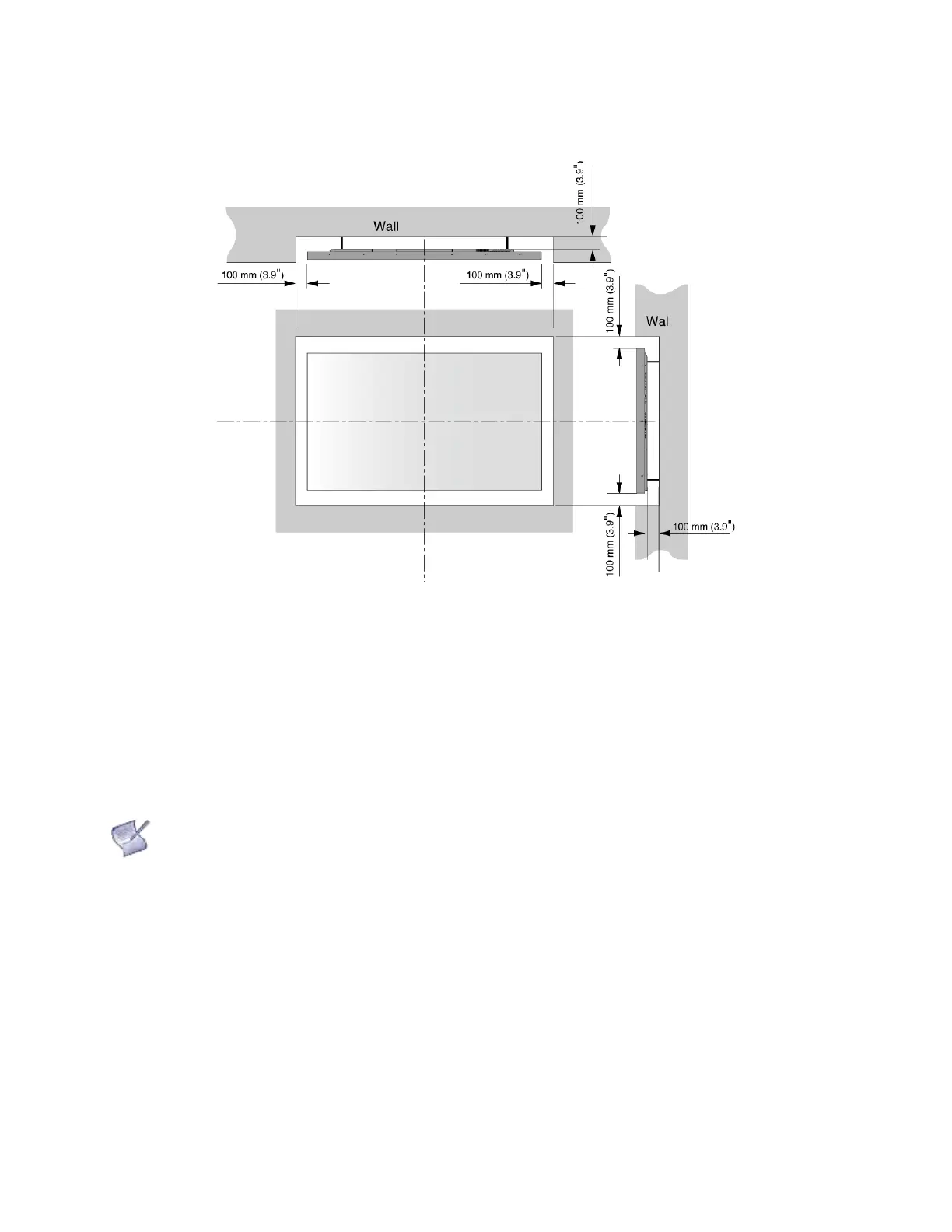

Figure 3-1. Ventilation Requirements for Enclosure Mounting
Mounting the Display
You can mount the display on a wall.
If you do decide to wall-mount the display, ensure that the wall-mount bracket is installed according to the
instructions included with it. The wall must be capable of supporting a redundant weight factor three (3) times
the weight of the display, or be reinforced.
We recommend that this be done by a custom installation specialist.
To safely mount the display on a wall:
• Use only the approved wall-mount kit designed for the display.
• Make sure the tilt degree of the wall does not exceed 2 degrees.
For more information of wall mount installation, refer to Appendix II: Installing a Wall
Mount on page 66.
