Add eSATA interface with optional SATA-to-eSATA cable

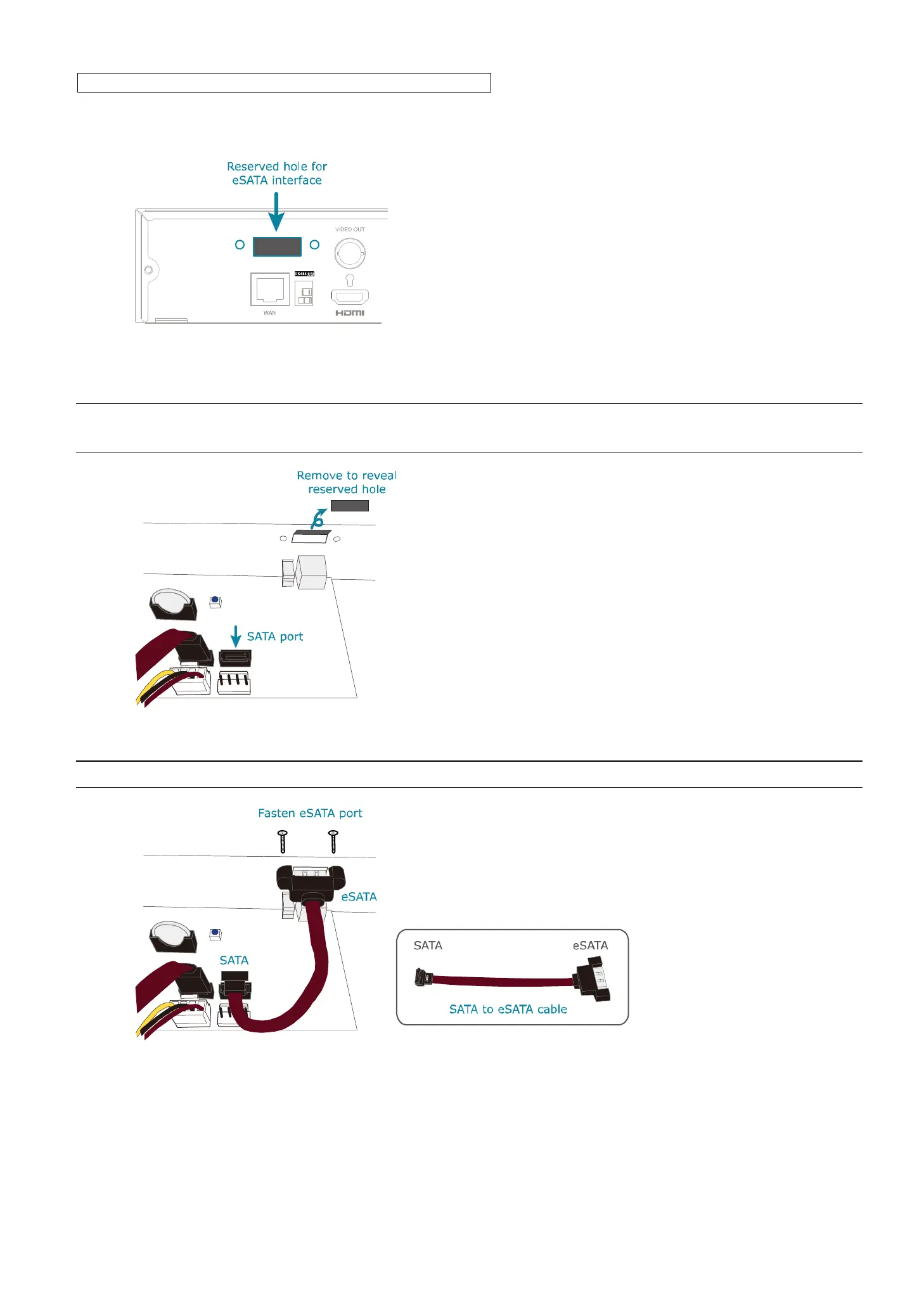

Step1: Check the specifications of your recorder and see if it supports this feature. If yes, find the reserved hole on
the rear panel of your recorder as illustrated below.
Step2: Remove the top cover of the recorder to reveal its main board. Remove the thin piece of metal that block the
reserved hole. Then, remove one SATA cable on the board.
Note: It will consume one SATA port to add an eSATA interface on the mainboard of your recorder, which
means you’ll lose one hard disk which can be installed inside your recorder.
Step3: Get a SATA-to-eSATA cable and connect it to the board as illustrated below.
Note: The SATA-to-eSATA cable is optional and need to purchase separately.
