2. CONNECTION
2.1 Hard Disk Installation
Note: It’s necessary to install a hard disk first before firmware upgrade to ensure the upgrade process
works properly.
 Type 1

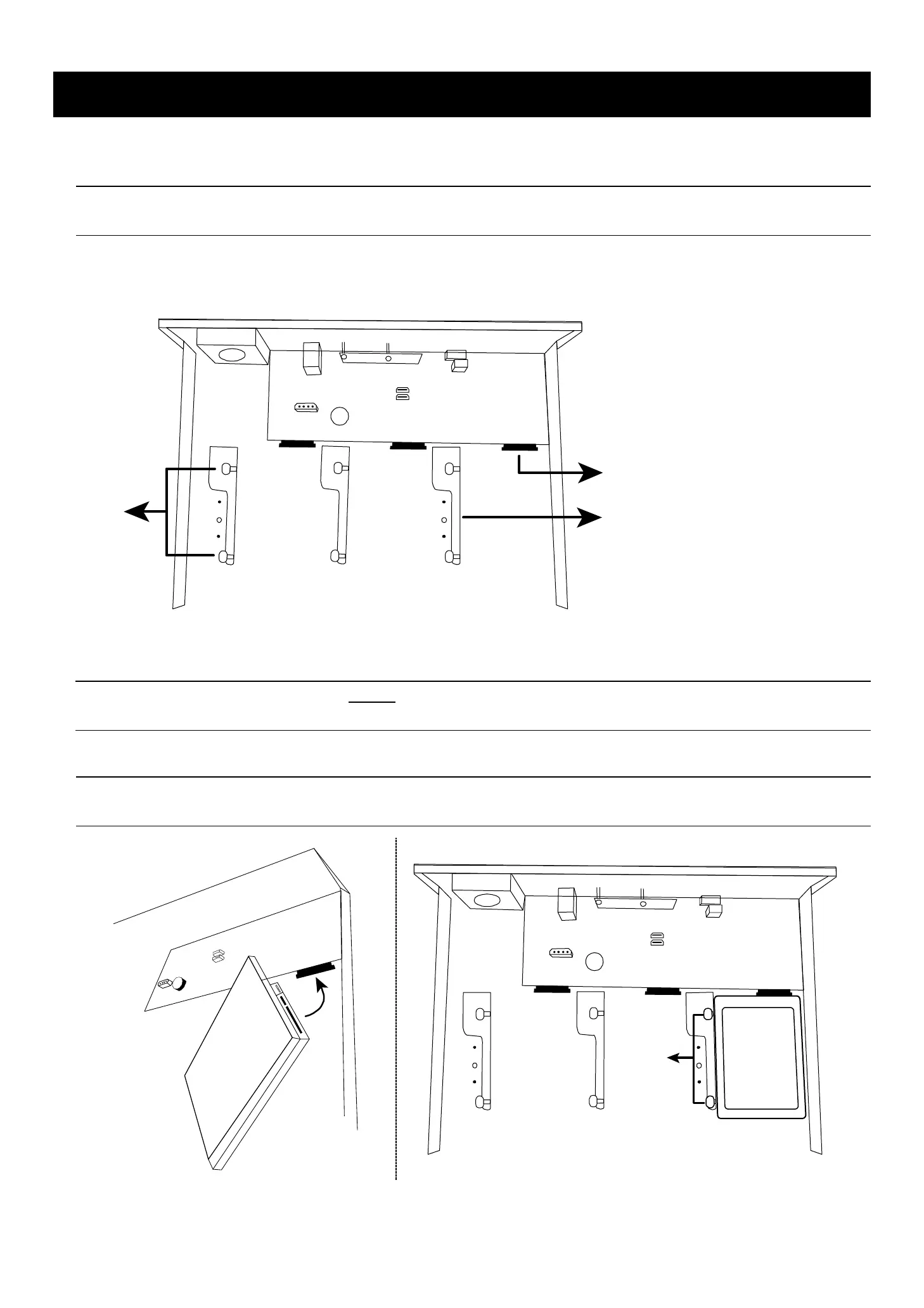

Step1: Remove the top cover, and find the hard disk connector and bracket in the device.
CR2032
Bracket
Hard Disk
Connector
Bracket
Screws
Step2: Get a compatible hard disk. With the PCB side facing down, insert the hard disk to one of the hard disk
connector.
Note: To use a green hard disk, use ONLY the hard disk designed especially for surveillance to ensure the
device works properly.
Step3: Fasten the hard disk to the bracket by securing the screws on the bracket.
Note: For the 16CH model which supports five hard disks, please go to “Additional Brackets for Two More
Hard Disks” to know how to install the other two hard disks.
C
R
2
0
3
2
H
a
r
d
D
i
s
k
CR2032
Hard
Disk
󴄀
Screws
Secured
Step4: Replace the top cover and fasten the screws you loosened in Step1.
