APPENDIX 2 PUSH VIDEO CONFIGURATION
72
727
APPENDIX 2 PUSH VIDEO CONFIGURATION
Note: This function is for selected models only. Please check the product specifications or check with
your installer to know more details.

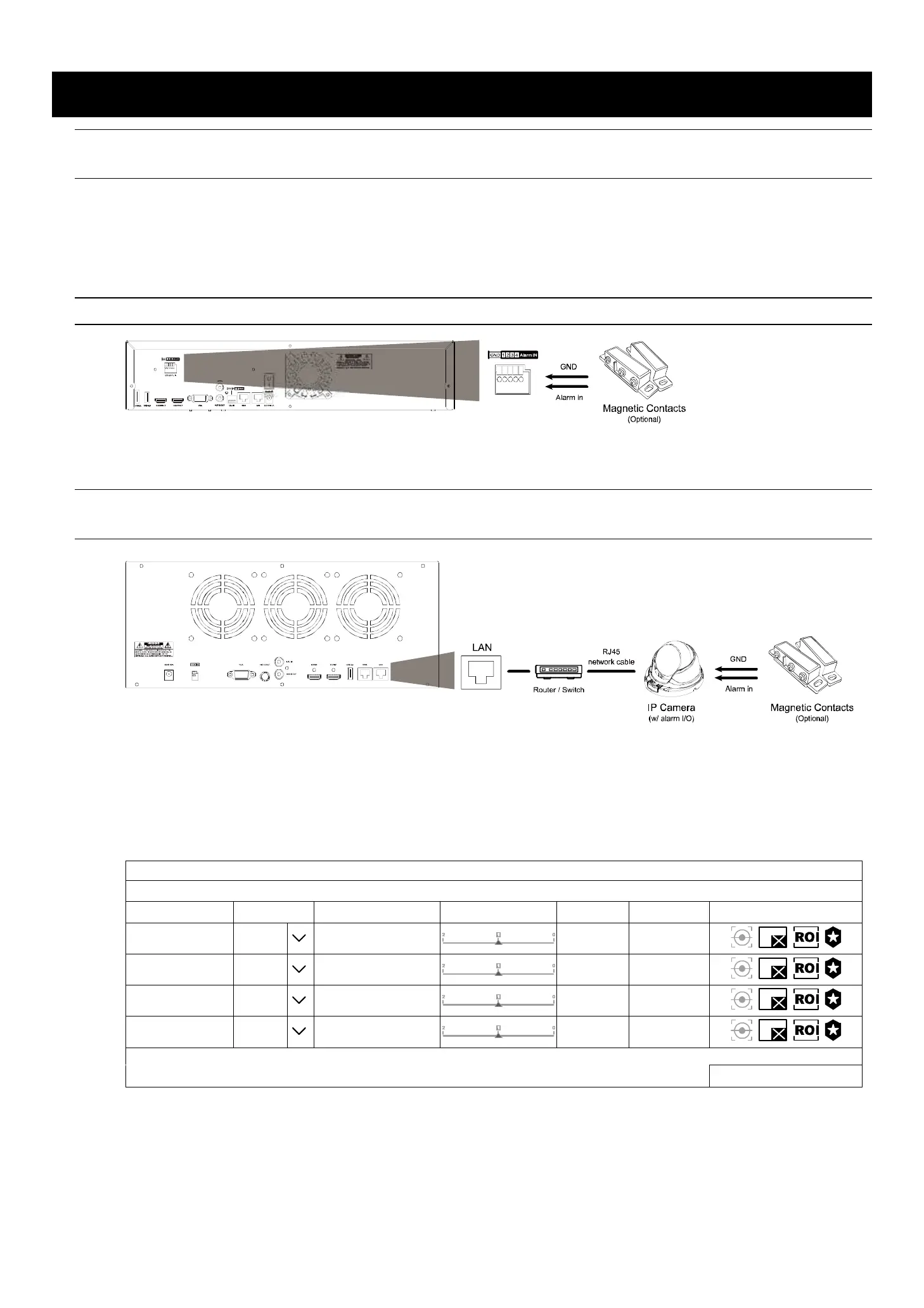

A2.1 Alarm Sensor Connection
Connect the alarm sensor, such as magnetic contacts, to the alarm-in port on the rear panel. Alarm-in 1
corresponds to video channel 1, alarm-in 2 corresponds to video channel 2, and so on.
Note: The voltage restriction for alarm-in device connection is under DC24V 1A.
If the connected IP camera is our brand’s IP camera with alarm I/O support, you can also connect the alarm
sensor to the camera.
Note: Please check the user manual of the camera to know voltage restriction for alarm-in device
connection.
Then, go to MENU CAMERA DETECTION and make sure:
1. MOTION is set to ON.
2. ALARM is configured (N.C. / N.O.) when an external alarm device is connected, or
INTERNAL ALARM is set to ON when the connected camera has a PIR sensor built-in.
DETECTION
CHANNEL TITLE ALARM INTERNAL ALARM SENSITIVITY MOTION AREA ADVANCED CONFIG
CH1 OFF
ON
ON EDIT
CH2
N.C.
OFF
ON EDIT
CH3
N.O.
OFF
OFF EDIT
CH4
OFF
OFF
OFF EDIT
APPLY
