AXIS 231D - Using the Network Dome Camera
If the AXIS 231D has been customized, the buttons described below will be displayed
accordingly on the Live View page. The following provides an overview of each button:

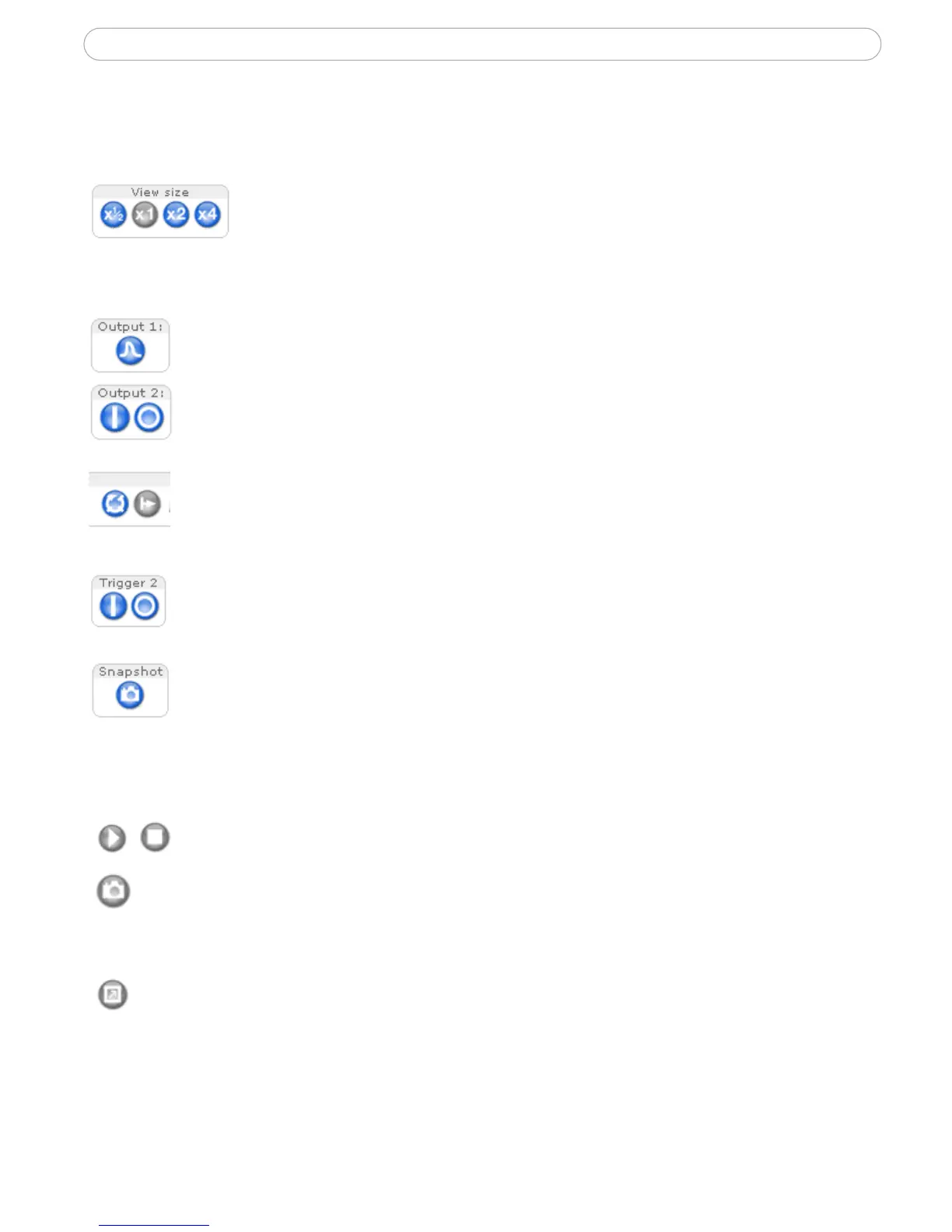

To resize the displayed image, click the View Size buttons: half-size
(x
1
/2), full-size (x1), x2 or x4. This will not change the resolution of the
image (not available in Sequence Mode).
The Output buttons control an output directly from the Live View page. These
buttons are configured under Setup | Live View Config | Layout.
Pulse - click this button to activate the port for a defined period of time, e.g. to
switch on a light for 20 seconds.
Active/Inactive - click these buttons to manually start and stop a connected
device, e.g. switch a light on/off.
These buttons start/stop the Sequence Mode. This mode is created in Setup |
Live View Config | Sequence mode and automatically displays the view from
preset positions at set intervals.
The Action buttons trigger an action directly from the Live View page. These
buttons are configured under Setup | Live View Config | Layout. Click these
buttons to manually start and stop events.
Use the Snapshot button to capture a snapshot of the image currently being
displayed in the window. Right-click on the image to save it in JPEG format
on your computer.
The AMC viewer toolbar (AXIS Media Control) is available from Microsoft Internet
Explorer only and displays the following buttons:
The Play/Stop buttons start and stop the live video stream.
The Snapshot button takes a snapshot of the currently displayed image. The
Snapshot function and the target directory for saving snapshots can be configured
from AMC (AXIS Media Control), which is available from the Windows Control
Panel (Internet Explorer only).
Click the View Full Screen button and the video image will fill the entire screen
area. No other windows will be visible. Press Esc (Escape) on the computer
keyboard to cancel full screen view.
