AXIS 231D - Event Configuration

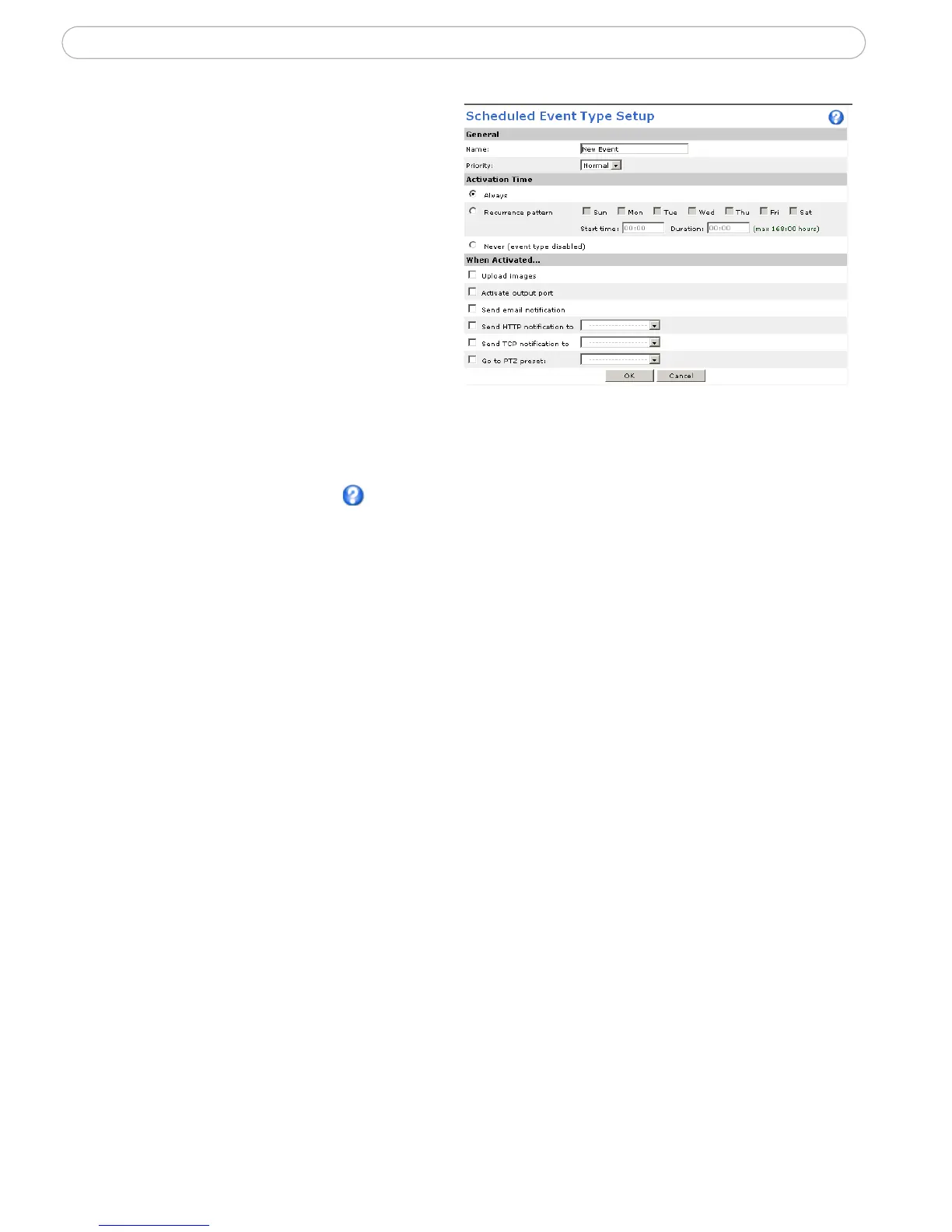

2. Enter a descriptive name for the
event, e.g. Scheduled email.
3. Set the priority (High, Normal or
Low).
4. Set the Activation Time parameters
(24h clock) when the event is to be
active, e.g. start on Fridays at 18.00
with a duration of 62 hours.
5. Set the When Activated... parameters
i.e. set what the Network Dome
Camera is to do at the specified time
e.g. send uploaded images to an
email address.
6. Click OK to save the Event in the Event Types list.
Please use the online help files for descriptions of each available option.
Port Status
Under Event Configuration | Port Status there is a list that shows the status for the
connected inputs and outputs of the AXIS 231D for the benefit of the Operator who cannot
access the System Options section.
Example: If the Normal state for a doorbell push button connected to an input is set to Open circuit - as long as
the button is not pushed, the state is inactive. If the doorbell button is pushed, the state of the input
changes to active.
