AXIS 231D - Configuring the Network Dome Camera
Using the Setup Tools
The following descriptions offer examples of the available features in the AXIS 231D. For
details of each setting, please refer to the online help files which are available from each
page. Click
to access the help files.
Note: The links under Basic Configuration are shortcuts to the necessary basic settings the first time the unit is
configured.

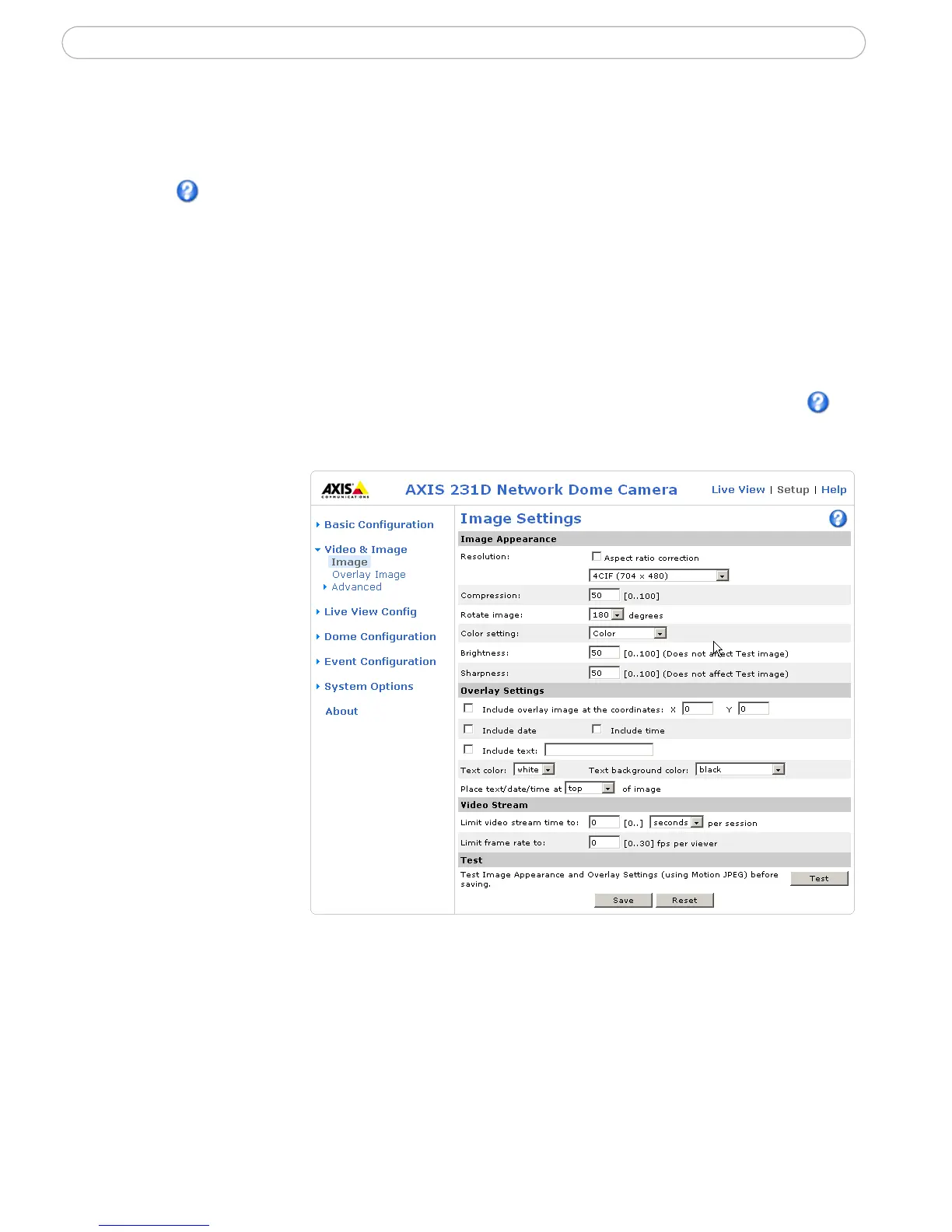

Video & Image
To optimize the video images according to your requirements, modify the following
settings under Image Appearance. Each setting is described in the online help files
• Resolution (including Aspect ration correction)
• Compression
• Rotate Image
• Color Setting
•Brightness
•Sharpness
Note: All configuration of images and overlays will affect the performance of the Network Dome Camera,
depending on the usage and the available bandwidth. Please keep in mind the following when changing the
image settings:
•Lower compression improves image quality, but generates larger files
•Color uses more bandwidth than Black & White
•Rotating the image 90 or 270 degrees will lower the maximum frame rate
