AXIS 231D - Installing the AXIS 231D
Exterior Ceiling Mounting
Follow these instructions to mount the dome camera:
1. Using the supplied drill template, drill three holes in the hard ceiling and secure the
bracket to the ceiling with three screws.
2. Connect the connection module cable to the connection module.
3. Connect the Ethernet cable and connection module to the AXIS 231D.
4. Connect the power cable and check that the power and network LEDs light up
(green).
5. Mount the dome body to the bracket and rotate it clockwise. Make sure the screw
hole on the side of dome is aligned with the bracket. Tighten the fixing screw to
secure the dome.
6. Attach and secure the Decoration ring to the bracket.
7. The hardware installation is now complete, proceed to Installing on a Network, on
page 10 to install the AXIS 231D on your network.

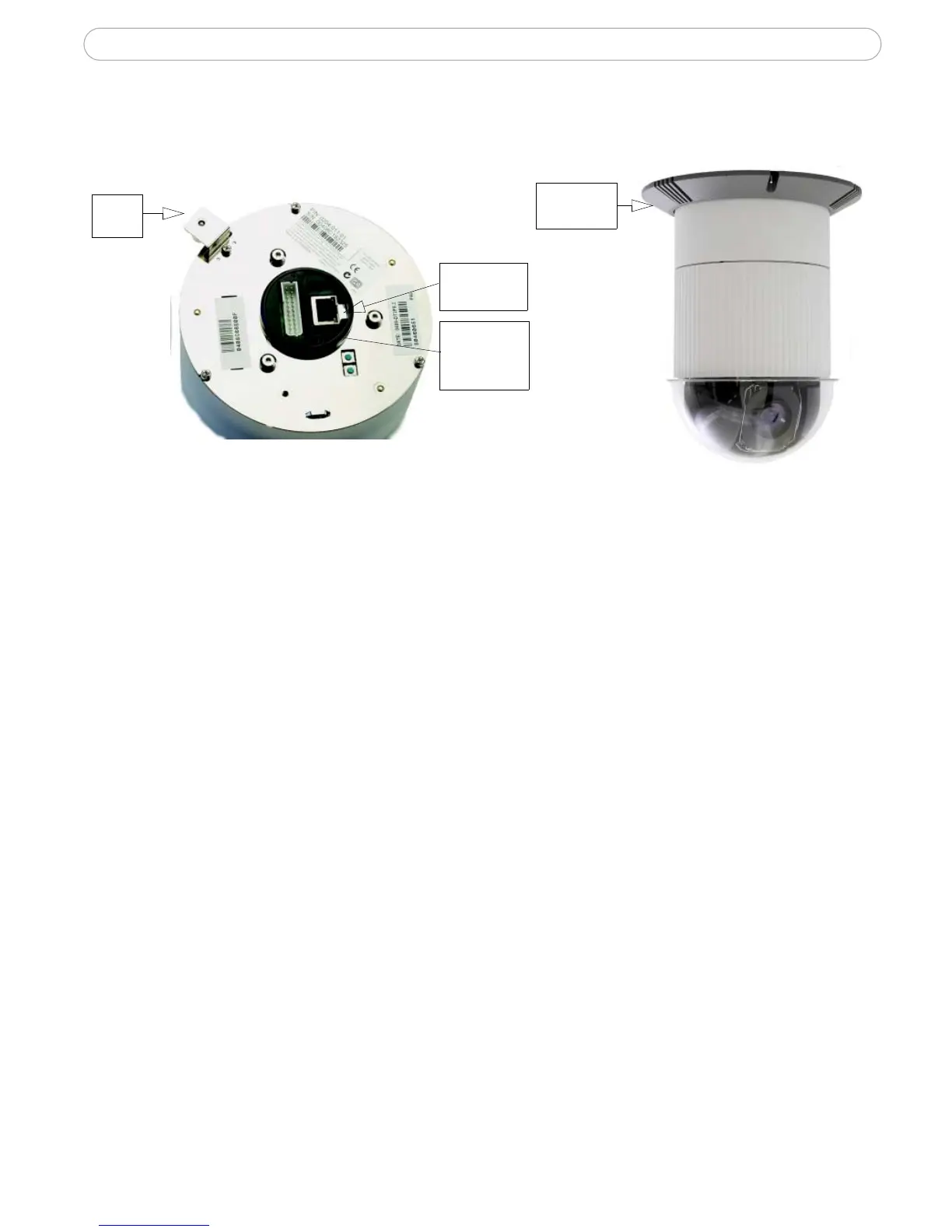

Decoration
ring
Network
connector
Fixing
screw
Connection
module
connector
To Next Page
