AXIS 231D - Connection Module
Connection Module
This section describes the pinout provided by the Connection module consisting of:
• 4 transistor outputs
• 4 digital inputs
• power and GND (ground)
The inputs/outputs are used in applications for, e.g. event triggering, time lapse recording,
alarm notification via email, picture storage to FTP locations.
• Input - e.g. a doorbell. If the doorbell is pressed, the state changes, and the input
will be active (shown under Event Configuration | Port Status).
• Output - e.g. an alarm device that can be activated from Output buttons from the
Live View page or as an action to an Event Type. The output will show as active
(under Event Configuration | Port Status), if the alarm device is activated.

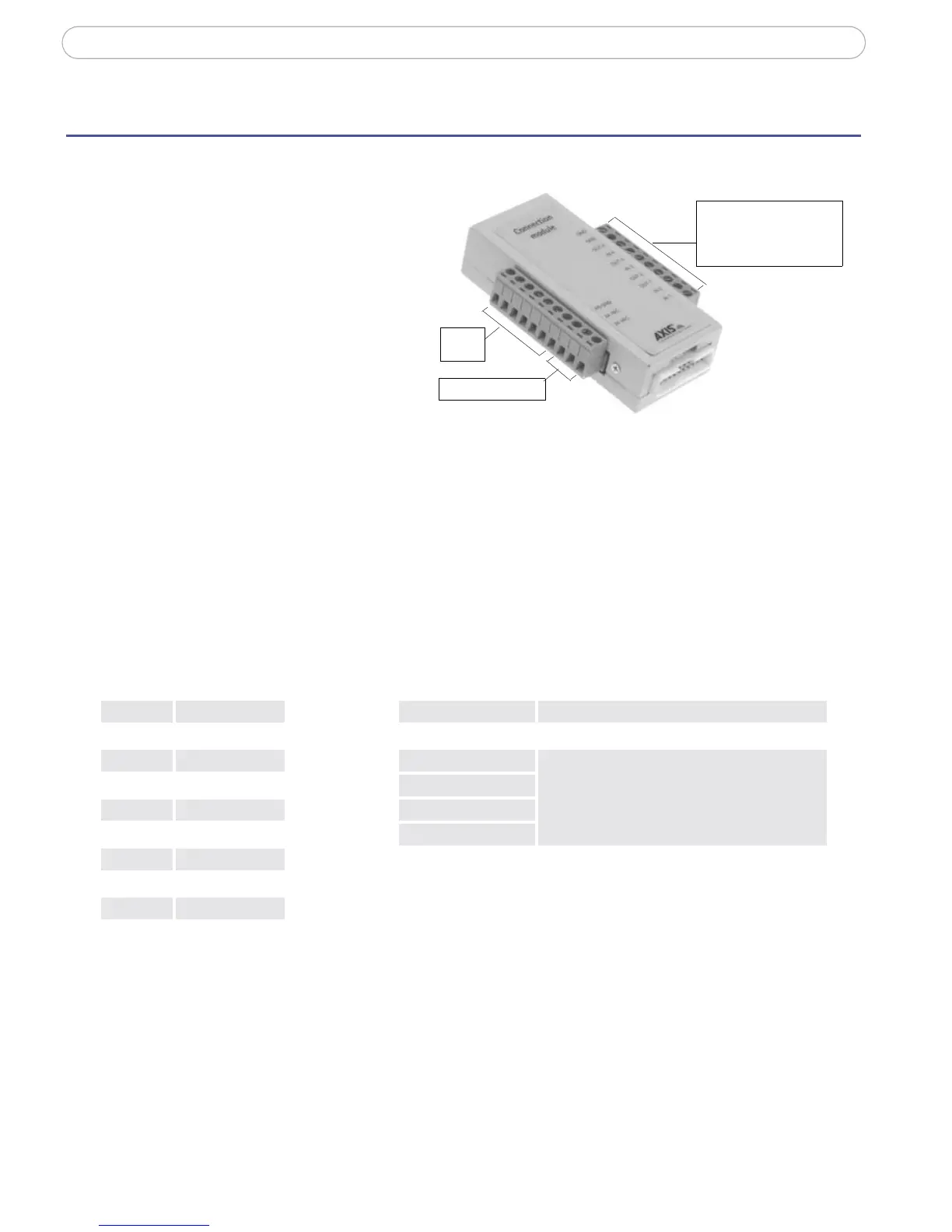

Connection Module Pinout
1. Loosen the corresponding screw on top of the pin (see the table above to determine
which pin to use).
2. Push the cable into the connector and secure it by fastening the screw.
Function Description Function Description
n/a not used GND ground
n/a not used
GND ground
n/a not used Transistor Output 4
Connect to GND to activate or leave floating
(unconnected) to deactivate
n/a not used
Digital Input 4
n/a not used Transistor Output 3
n/a not used
Digital Input 3
n/a not used Transistor Output 2 Max. load 100mA, max. voltage 24VAC.
An open-collector NPN transistor with the
emitter connected to pin 2 (GND). If used
with an external relay, a diode must be
connected in parallel with the load for
protection against any voltage transients.
PS GND ground
Transistor Output 1
24 VAC 24 VAC Digital Input 2
24 VAC 24 VAC
Digital Input 1
24V AC Power
not
used
4 transistor outputs
4 digital inputs
(see table below)
