Axis AD Series User Manual

USER MANUAL 15
_________________________________________________________________________________________________________________
Detailed information for programmers:
The balance sends data with a following method:
Computer  Balance: initiation signal S I CR LF (53h 49h 0Dh 0Ah),
Balance  Computer: weighing result in the following format:
(16Bytes, LONG protocol - 8bits, 1stop, no parity, 4800bps),
Bytes description:
1
- „-„ mark or space
2
- space
3  4
- digit or space
5÷9
- digit, decimal point or space
10
- digit
11
- space
12
- k, l, c, p or space
13
- g, b, t, c or %
14
- space
15
- CR
16
- LF

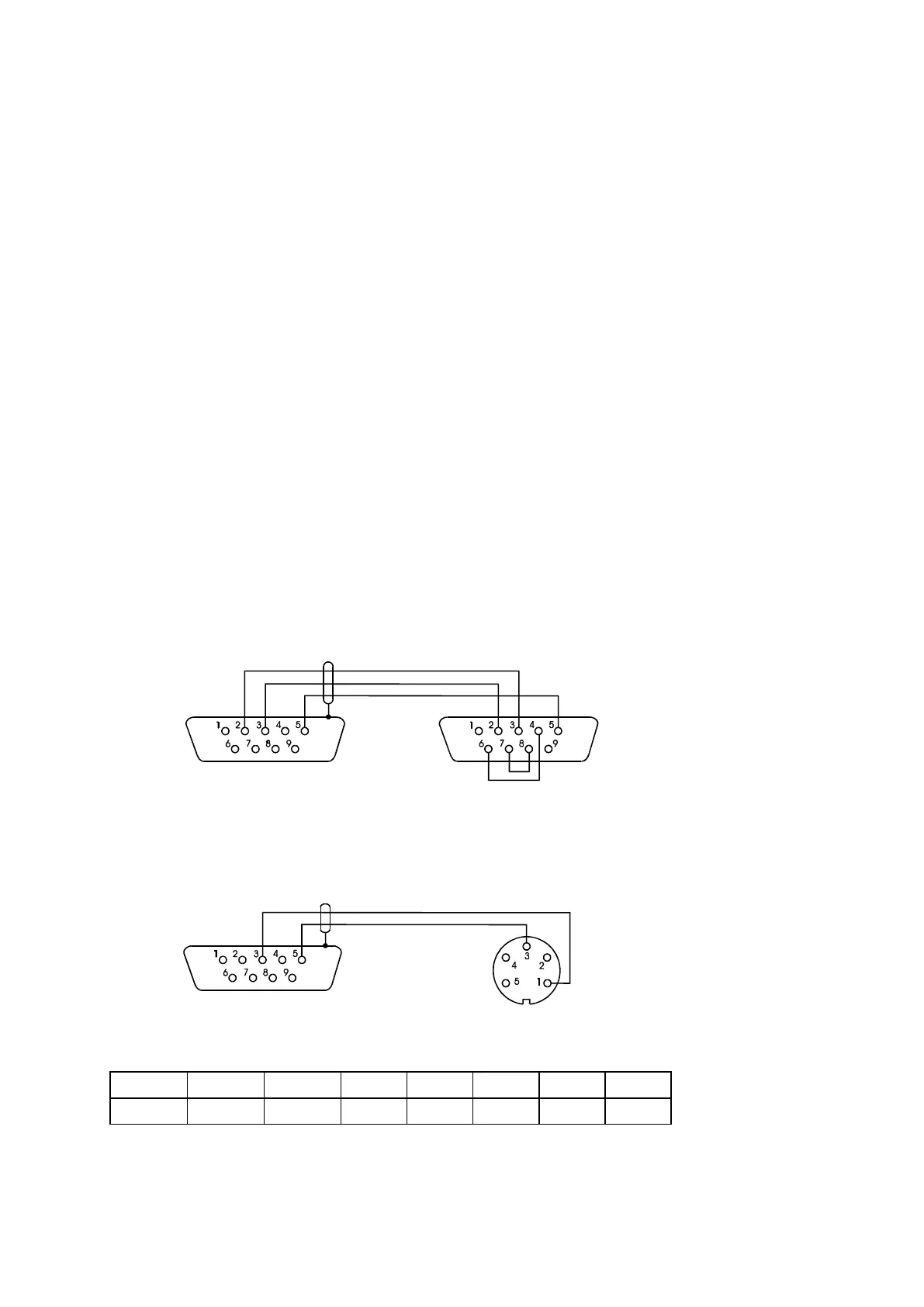

Connection cable WK-1 (balance – computer / 9-pin):
Connection cable WD-1 (balance - KAFKA printer):
Setup of printer internal switch – printer AXIS C-001:
SW-1
SW-2
SW-3
SW-4
SW-5
SW-6
SW-7
SW-8
on
off
on
off
off
on
off
off
BALANCE COMPUTER
BALANCE PRINTER
