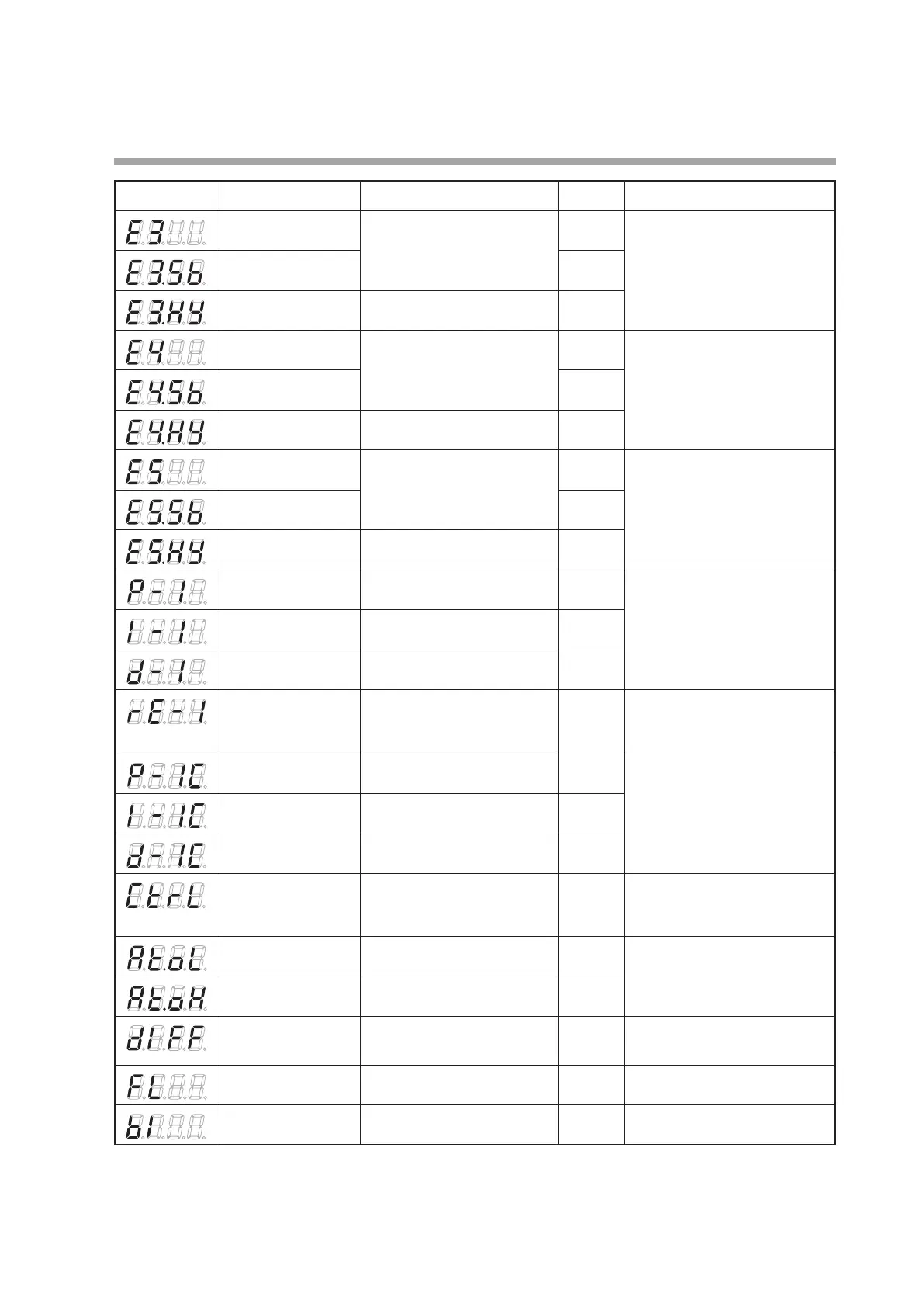

Chapter 7. LIST OF SIMPLE CONFIGURATION DISPLAY ITEMS
Display Item Contents Initial value Notes
Event 3 main setting Same as Event 1 main / sub
setting
0 Necessary settings are displayed
according to Internal Event 1
operation type (E3.C1).
Event 3 sub setting 0
Event 3 hysteresis Same as Event 1 hysteresis 5
Event 4 main setting Same as Event 1 main / sub
setting
0 Necessary settings are displayed
according to Internal Event 1
operation type (E4.C1).
Event 4 sub setting 0
Event 4 hysteresis Same as Event 1 hysteresis 5
Event 5 main setting Same as Event 1 main / sub
setting
0 Necessary settings are displayed
according to Internal Event 1
operation type (E5.C1).
Event 5 sub setting 0
Event 5 hysteresis Same as Event 1 hysteresis 5
Proportional band 0.1 to 999.9 % 5.0 Displayed when the control
method is other than ON/OFF
control (CtrL ≠ 0).
Integration time 0 to 9999 s 120
Derivative time 0 to 9999 s 30
Manual reset -10.0 to +110.0 % 50.0 Displayed when the control
method is not the ON/OFF control
(CtrL ≠ 0) and the integration
time (I-1) is 0 s.
Cool-side proportional
band
0.1 to 999.9 % 5.0 Displayed when the control
method is not the ON/OFF control
(CtrL ≠ 0) and the heat/cool
control is used (C26 = 1).
Cool-side integration
time
0 to 9999 s 120
Cool-side derivative
time
0 to 9999 s 30
Control method 0: ON/OFF control
1: Fixed PID
2: ST (Self-tuning)
0
or
1
The initial value is “0” when the
control output 1 is the relay
output. The initial value is “1” in
other cases.
MV low limit at AT -10.0 to +110.0 % 0.0 Displayed when the control
method is other than ON/OFF
control (CtrL ≠ 0).
MV high limit at AT -10.0 to +110.0 % 100.0
ON/OFF control
differential
0 to 9999 U 5 Displayed when the control
method is the ON/OFF control
(CtrL = 0).
PV filter 0.0 to 120.0 s 0.0
PV bias -1999 to +9999U 0
